77
ENG
ENGLISH
MAKING CONNECTIONS
Component Connection

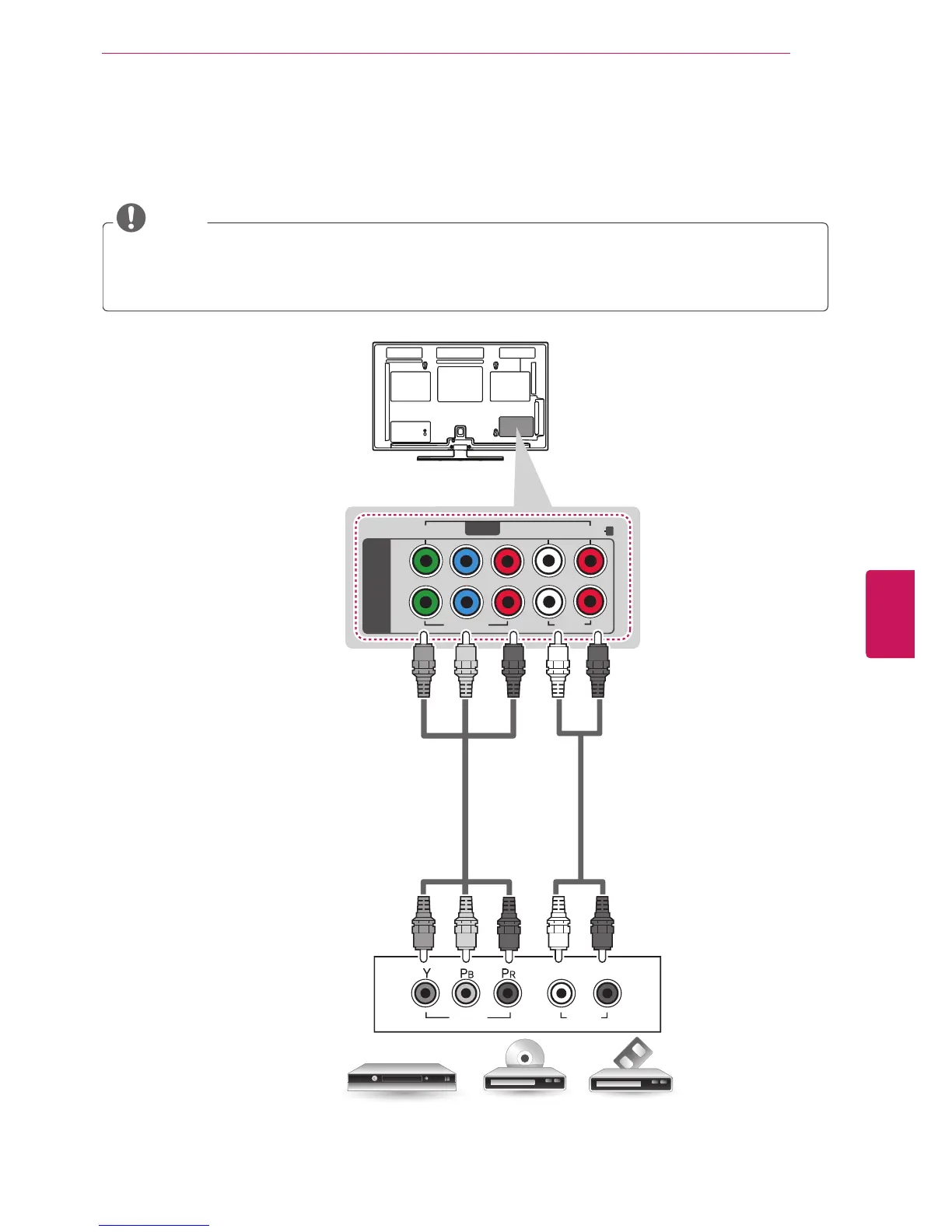

Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the component cable as shown in the following illustration.
NOTE
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
Check to ensure each cable is matched with the corresponding color connection.
AUDIO
VIDEO
L R
COMPONENT
IN
VIDEO
AUDIO
L
P
B
P
R
R
1
2
Y
VIDEO
AUDIO
R
L/MONO
AV IN
(*Not Provided)
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
WHITE
WHITE
RED
RED
To Next Page
