Trouble Shooting - A connection defect of a connector

P402

P3001

P3002

P3901

P101

P3004

P3901

P908

MAIN

oar

assem

ypo

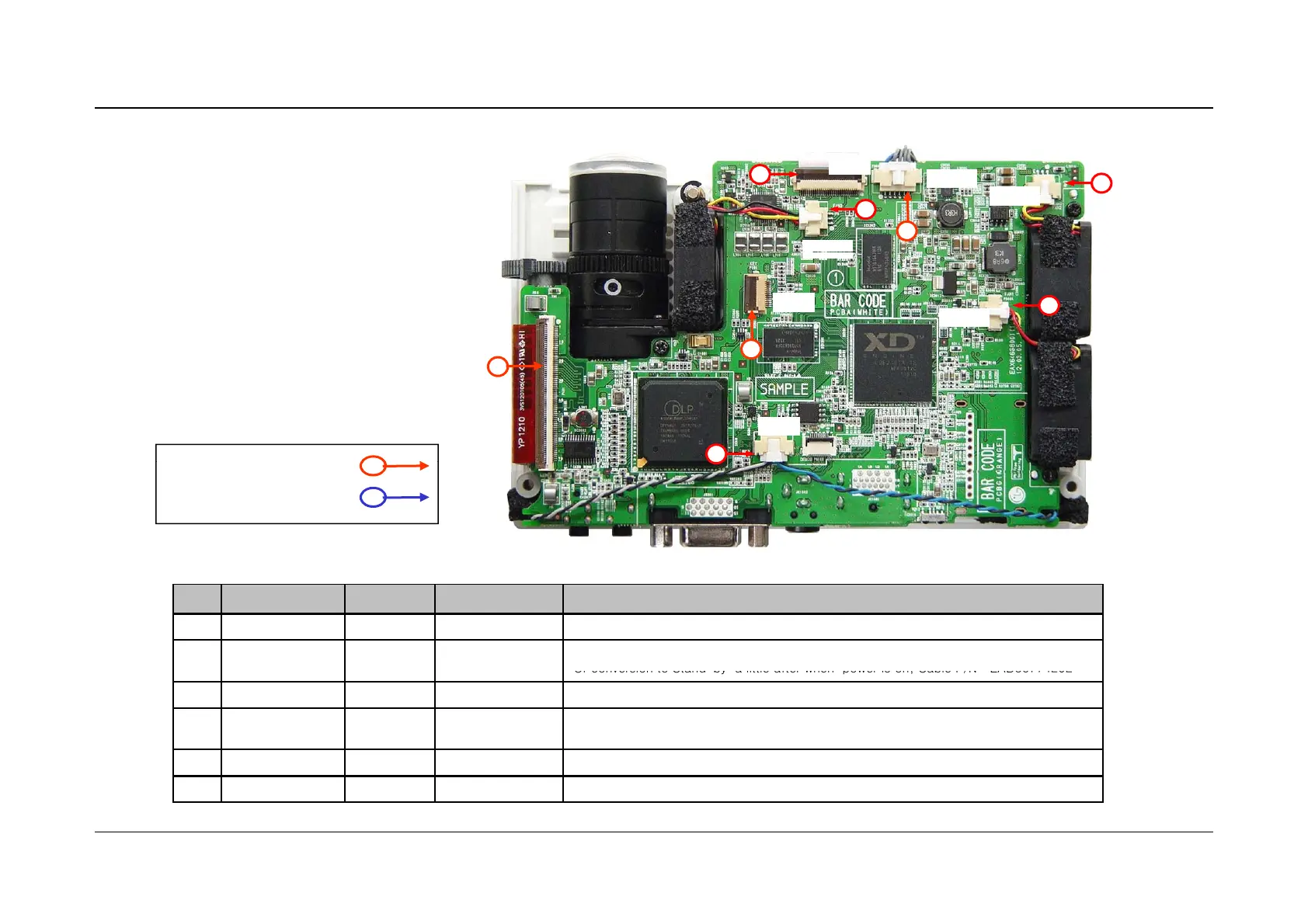

- LED board assembly point

No. Circuit No. Pin quantity Connection Phenomena in case of a connection defect occurrence

1 P3002,04, P3901 3 FAN Stop fan operating, conversion to Stand-by a little after when power is on

2 P402 30 LED board

Abnormality of an image color or no image (LED does not turn on).

Or conversion to Stand

by a little after when

power is on, Cable P/N

EAD36774202

conversion

Stand

little

after

when

power

on,

Cable

P/N

EAD36774202

3 P3001 6 LED board No image , Cable P/N : EAD58345817

4 P401 70 DMD board

No image image (LED turns on normally) or a vertical bar/ a parallel bar occurring,

Cable P/N :EAD62206801

5 P101 10 Keypad Board Key does not operate, Cable P/N : EAD37058302

Only for training and service purposes

LGE Internal Use Only

6 P908 3 Speaker Speaker does not print out. , Cable P/N : EAB62689401
