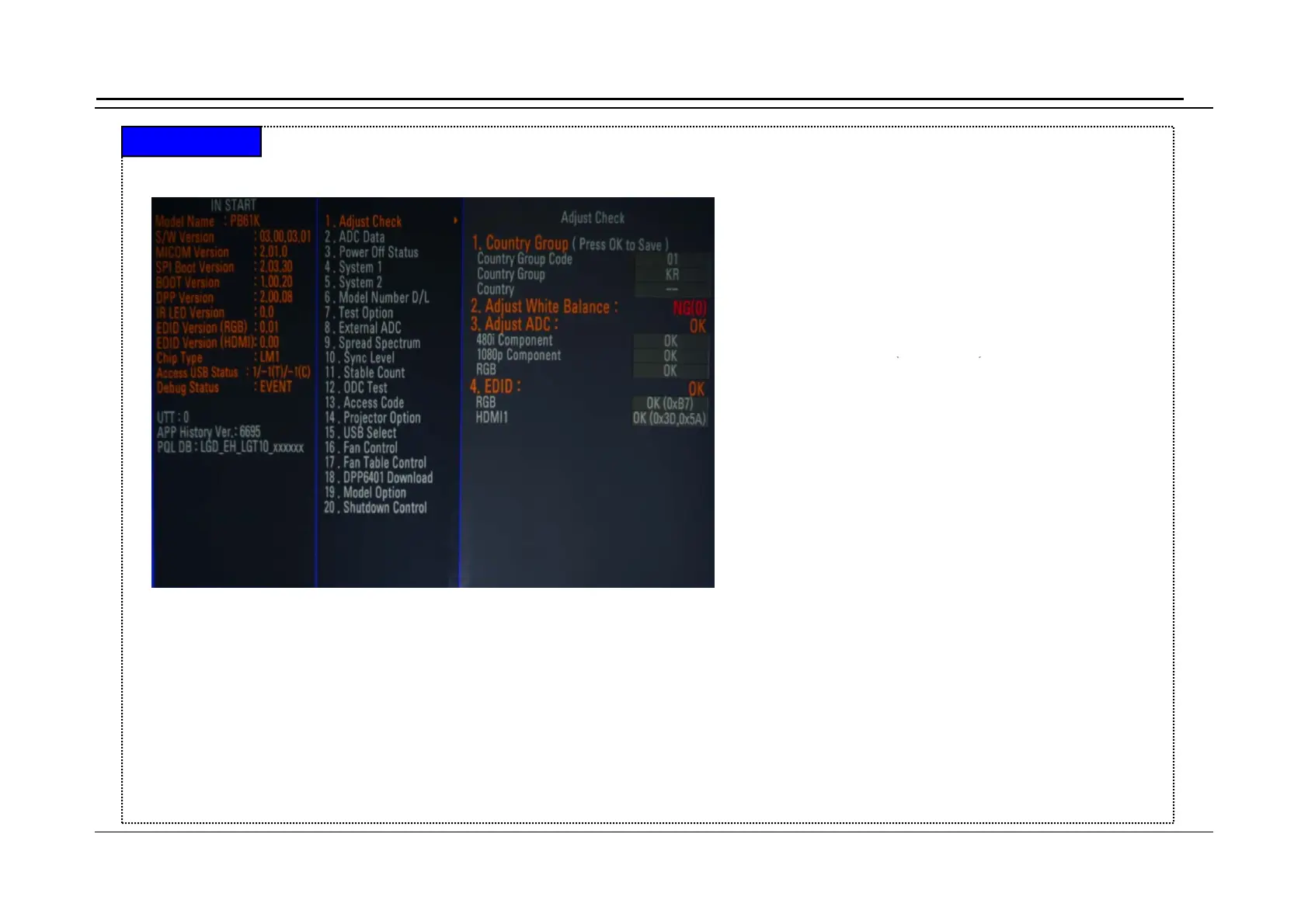

Screen figure
Instart
Adjustment mode use method
Screen
figure
1. Adjust Check – Adjust history check
2. ADC Data(Not in use)
3
POffStt
POffhithk
3
.
P
ower
Off
St
a
t
us
P
ower
Off
hi
s
t
ory c
h
ec
k
4. System1(Not in use)
5. System2(Not in use)
6. Model Number D/L
(
Not in use
)
SET ID
()
7. Test Option (Not in use)
8. External ADC(Not in use)
9. Spread Spectrum(Not in use)
10.Sync Level (Not in use)
11.Stable Count (Not in use)
12.ODC Test (Not in use)
13
Access Code (Not in use)
13
.
Access
Code
(Not
in
use)
14.Projector Option – Function related to DPP
15.USB Select(Not in use)
16.Fan Control Temperature and FAN RPM adjustment
17.Fan Table Control – FAN RPM TABLE correction
18.DPP6401 Download(Not in use)
19.Model Option(Not in use)
Copyright © 2012 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
20.Shutdown Control – Shutdown temperature correction
