LG PB60G Service Manual

Instart
Adjustment mode use method

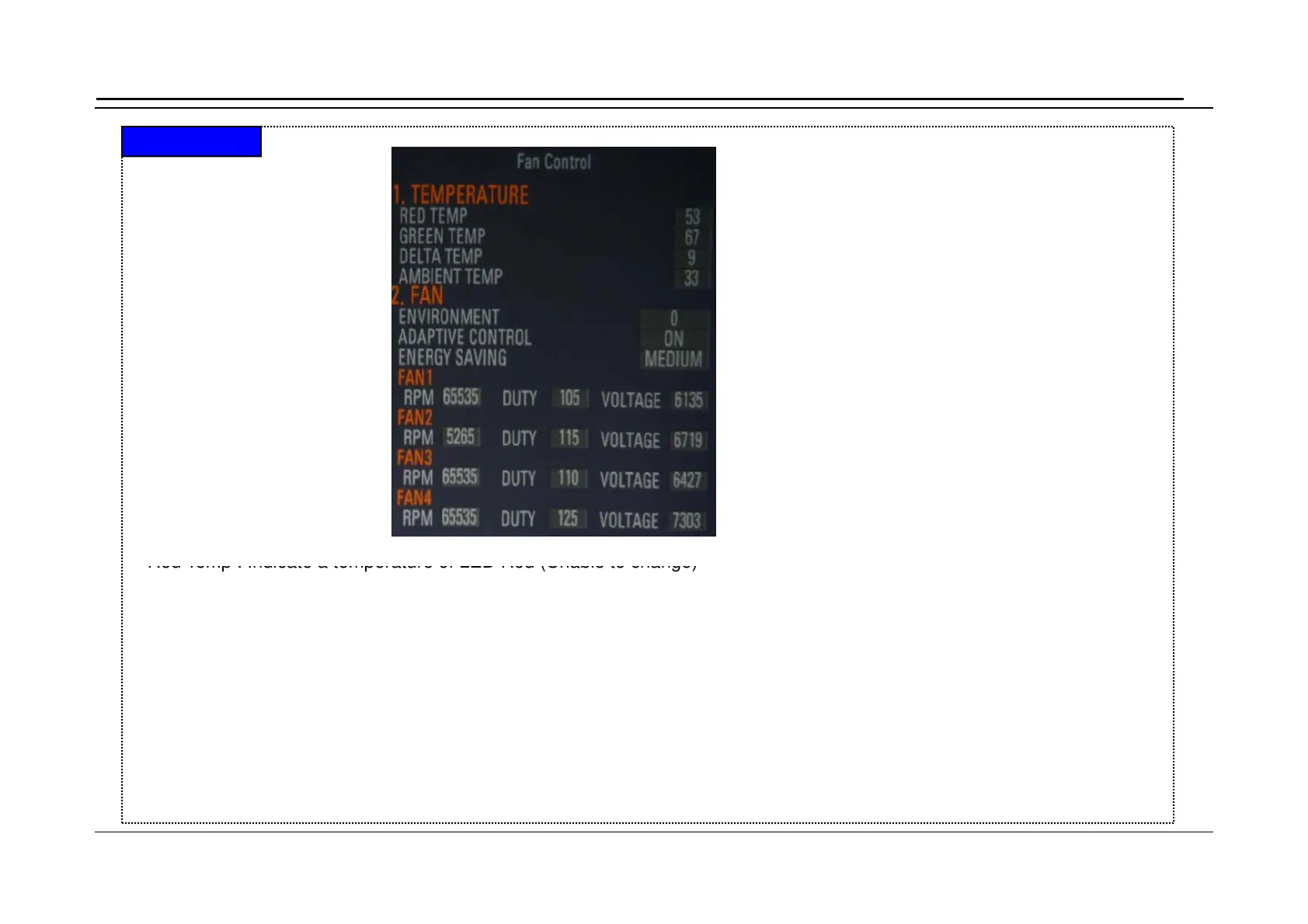

Screen figure
Screen
figure
Red Temp : Indicate a temperature of LED Red
(Unable to change)
Red
Temp
:
Indicate
a
temperature
of
LED
Red
(Unable
to
change)
Green Temp : Indicate a temperature LED Green (Unable to change)
Delta Temp : Red Difference between a temperature and an ambient temperature before correction.(Unable to change)
Ambient Temp : Indicate an outside temperature (Unable to change)
Environment : Indicate an altitude as0 and 1(Unable to change)
Adaptive Control Enable : When it is on, a fan strength differs based upon an ambient temperature and a delta temperature.
When it is off, a fan strength can be adjusted manually (Able to change)
Energy Saving : Indicate a brightness mode applying to Set.(Able to change)
Fan # :RPM, duty, and voltage values that is applied to each fan (Able to change, DUTY)
Copyright © 2012 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG PB60G Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	15000:1
Digital gamma correction	Yes
Screen size compatibility	25 - 100 \
Projector native resolution	WXGA (1280x800)
Lamps quantity	1 lamp(s)
Light source type	LED
Service life of light source	30000 h
Focus	Manual
Offset	100 %
Throw ratio	1.5:1
Focal length range	- mm
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 720p
Analog signal format system	-
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 854 x 480 (WVGA)
RMS rated power	2 W
Number of built-in speakers	2
Audio (L/R) in	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Noise level	31 dB
Certification	KC/KCC, FCC/UL
Noise level (economic mode)	26 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, ITA, KOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Tripod
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	60 W
Power consumption (standby)	0.5 W
Cables included	AC, Component
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	103 mm
Width	158 mm
Height	33 mm
Weight	470 g
