LG PDRYCB500 User Manual

Installation manual 7

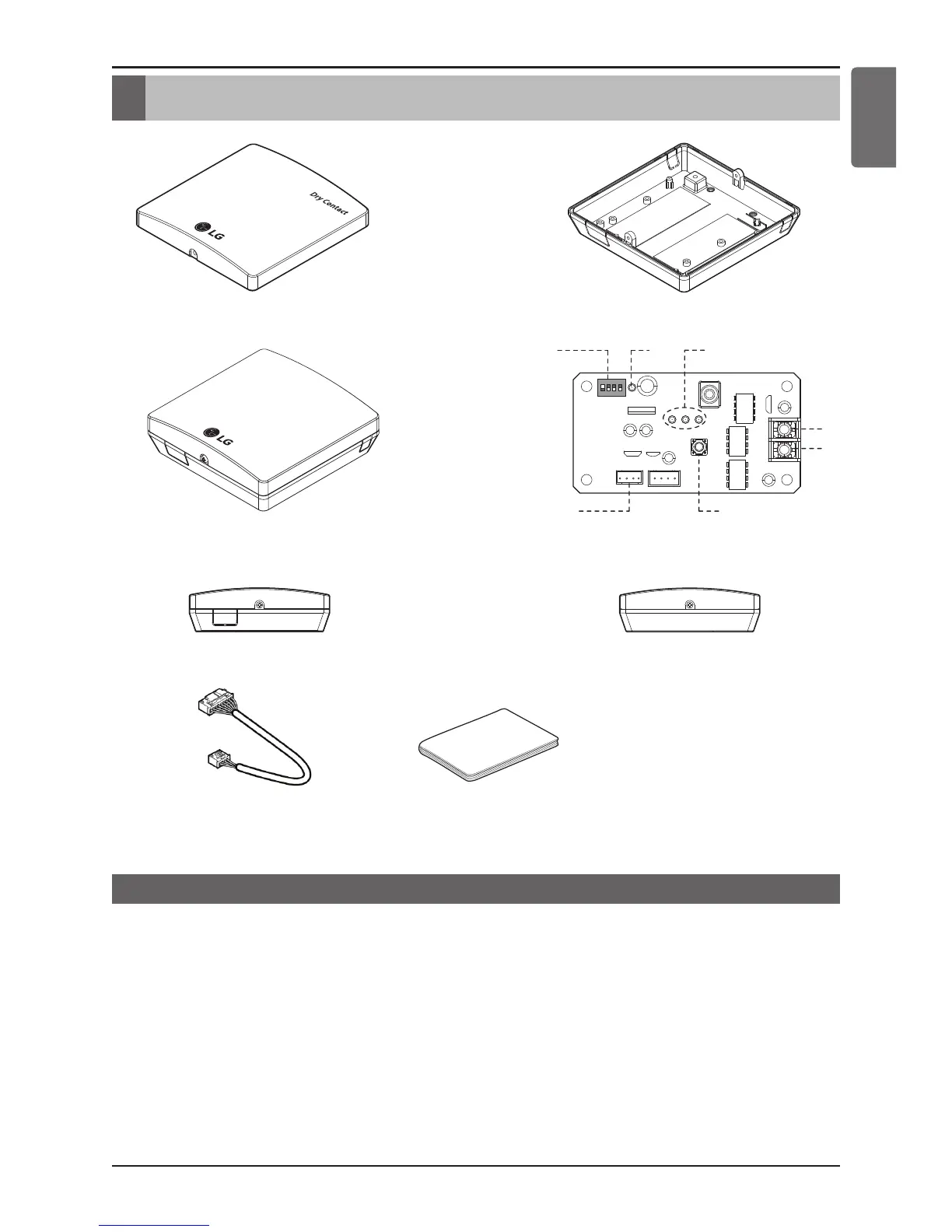

Name of each part
Modbus Gateway For Indoor Unit
Name of each part
PCB
Front Case Rear Case
ISO View
Side
Cable(1 EA)
(For Connecting with indoor unit)
Installation Manual
Side
12
ON
34
1
2
3
4
765
* Others :
Screw 4 EA(For installation)
1. CN-OUT :
2. BUS-A :
3. BUS-B :
4. SW1 :
5. SWDIP :
6. LED1 :
7. LED(01~03)G :
ENGLISH
Indoor Unit Connector
RS-485(+) Terminal
RS-485(-) Terminal
Reset Switch
Setting Address Switch(Refer Page 11)
RS-485 Status LED
Communication Status LED

LG PDRYCB500 Specifications

General

Brand	LG
Model	PDRYCB500
Category	Air Conditioner
Language	English
