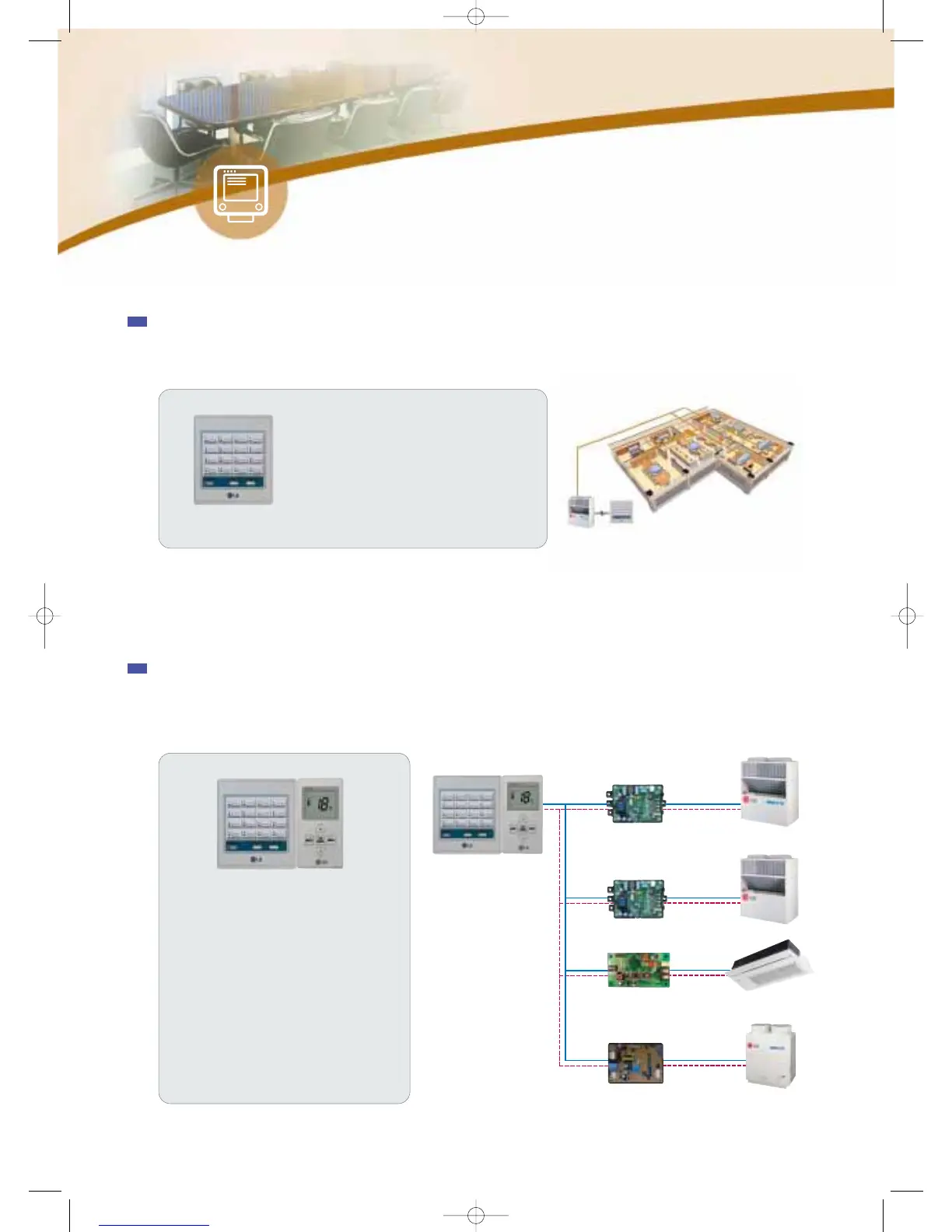

92_ Air conditioning system
Simple central controller
Function central controller (PQCSC101S0)
Simple central controller
•
A central controller for managing small sites
•
Control maximum 16 indoor units
•
Control & monitor the operation status of indoor units in company
with a simple central controller (PQCSB101S0)
Features
•
Individual operation (one button one A/C)
- On operation (Max. 16 indoors)
- Off operation (Max. 16 indoors)
- Individual lock function (1 unit)
•
Group operation
- Group On_Off
- Group lock function (16 units)
•
Sequential starting to protect over current
•
Diagnostic function (LED blinking)
PQCSB101S0
• Additional accessory
Interface unit (PI485) : PMNFP14A0 (for 1 outdoor with max 16 indoors, 1 PI485/1 outdoor)
PMNFP14A1 (for 1 outdoor with max 48 indoors, 1 PI485/1 outdoor)
PQCSB101S0 / PQCSC101S0
PQCSB101S0 / PQCSC101S0
Vcc, GND AC220V
DC Comm, Line
RS485
•
Wiring
PMNFP14A0 (Max. 16 Indoors)
PMNFP14A1 (Max. 48 Indoors)
PMNFP14A0
PHNFP14A0
(Ceiling & Floor, Duct)
PSNFP14A0 (CST, RAC)
PQNFP00A0 MULTI V (R407C)
Single constant
Single A, MULTI
MULTI V PLUS, SYNC, SPACE
R410A
Features
•
Mode / fan speed / temperature control
•
Indoor error display
•
Total cycling status indication via LCD
•
Max. 8 groups with 128 units in group control
1 Function controller
combined max 8 simple central controller
