EXTERNALCONTROLDEVICESETUP
EXTERNALCONTROLDEVICE
SETUP
Connect the RS-232C (serial connector) of the PC to the RS-232C
connector at the back of the Projector.
You need to purchase a cable to connect the RS-232C connectors as it is
not provided as an accessory.
Use a RS-232C cable to remotely control the Projector (see Figure 1).
(Projector)(PC)
RS-232C IN

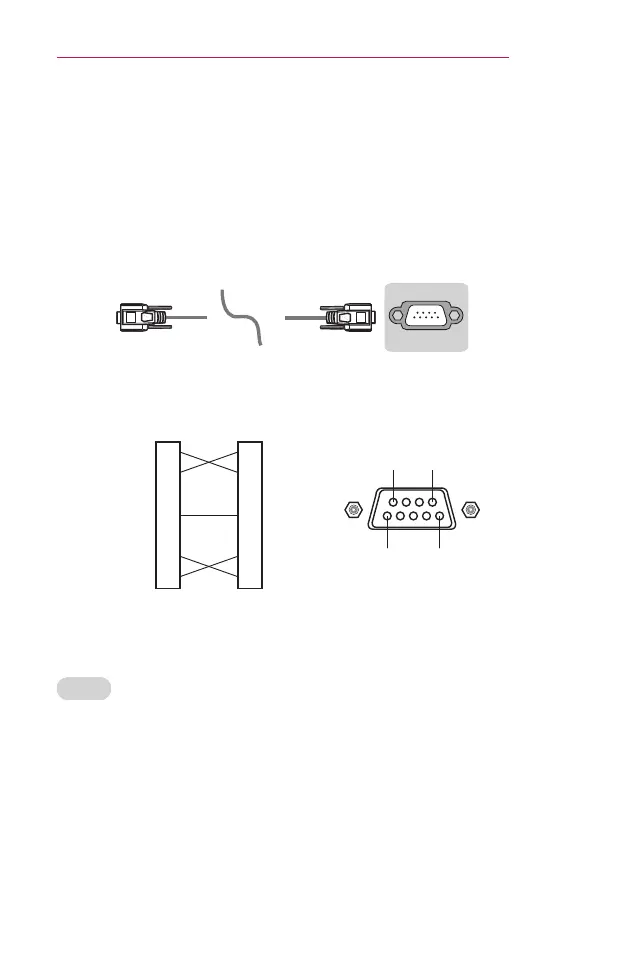

Figure1: RS-232 Connection Diagram
PC Projector
9 6
5 1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
RXD
TXD
DTR
GND
DSR
RTS
CTS
RXD
TXD
DTR
GND
DSR
RTS
CTS
* There is no connection to Pin 1 and Pin 9.
SetID
For Set ID number, see "Realdatamapping(Hexadecimal→Decimal)".
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to OPTION1 and press OK.
3 Press the Navigation buttons to scroll to SetID and press OK.
4 Scroll left or right to select a set ID number and select Close. The
adjustment range is 1-99.
5 When you are nished, press EXIT.
