ONE POINT REPAIR GUIDE
3. "ALL CD DISC" READING ERROR
- All CD disc did not recognized, but BD and DVD are recognized normally.
- If LD output current’s level is abnormal, set can not recognize CD disc.
3-1. Component
1) MD (Traverse Assembly)
2) IC701 (TPIC2050), CN703
3-2. How to troubleshoot (Countermeasure)
1) Check MD’s cable’s status. (Pick-up/ Sled-Spindle/ Tray Cable)
2) Check power source of IC701. (pin42 --> 12 V, pin24 --> 9.5 V, pin34 --> 5 V)
3) Check pin41 (SEL_CD) of CN703 during DVD playback.
(pin41 = 180 mV)

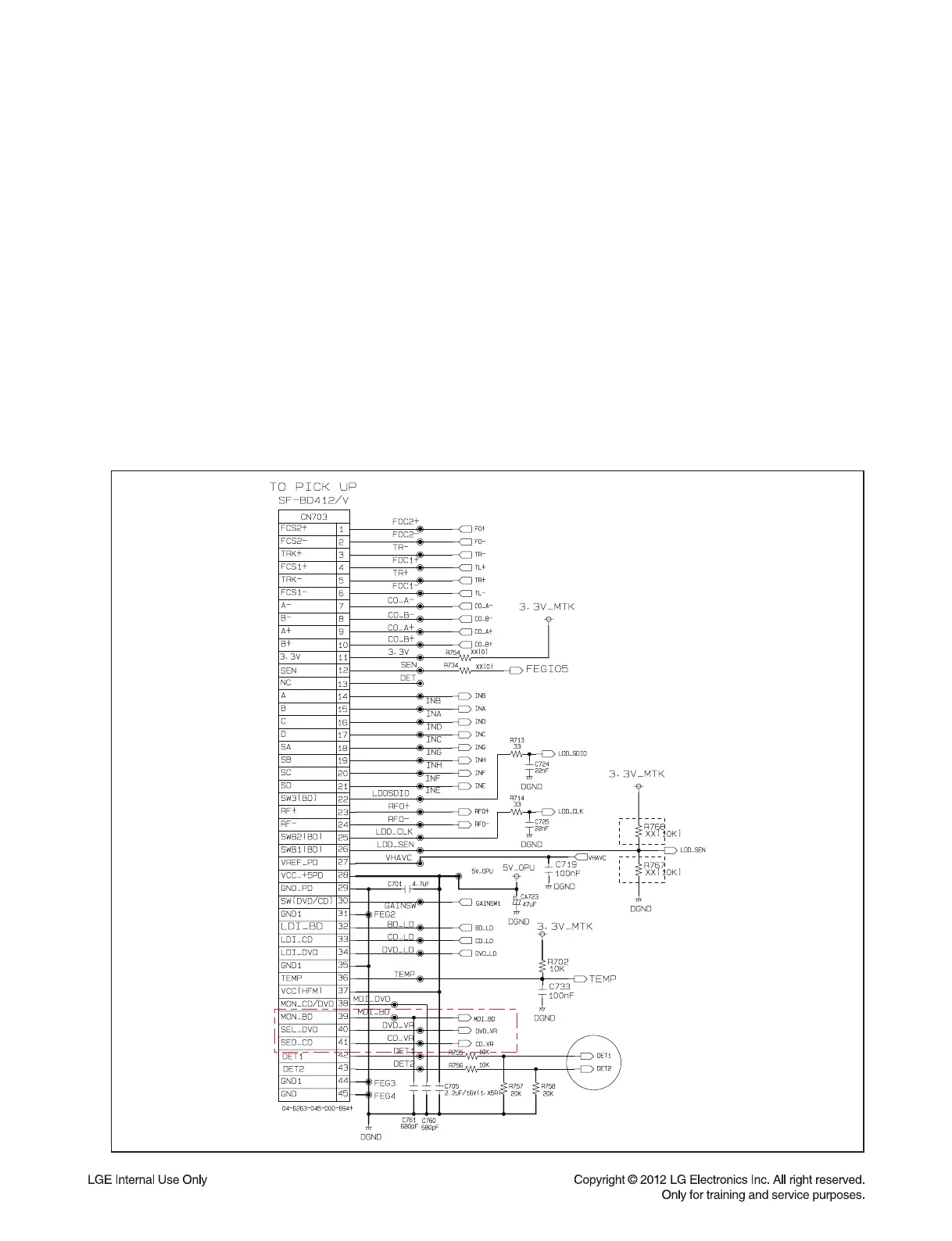

3-3. Service hint (Any picture / Remark)
