Page #77 background imageLoading...
Page #77 background image
2-682-67
1
4
3
2
5
: WAVEFORM NUMBER
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MPEG
EAX66304801 Rev1.4(5) MAIN+AMP(#4)
2014.12.22

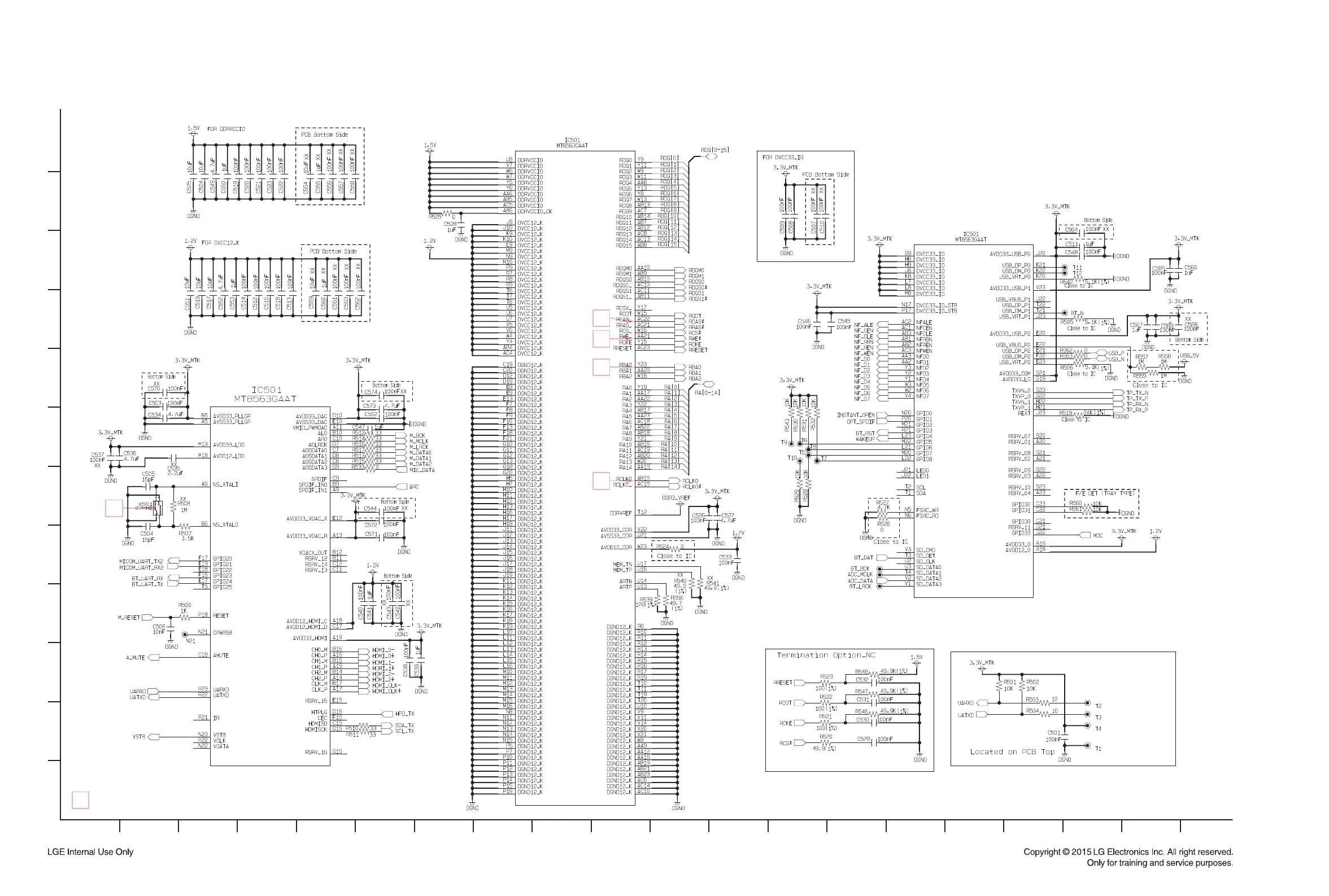

4. MAIN & AMP - MPEG CIRCUIT DIAGRAM
