PLANNING THE INSTALLATION
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into
spaces between walls, crawl spaces, ceiling, attics or
garages.
All exhaust must be ducted to the outside, unless
using the recirculating option.
Use single wall rigid metal ductwork only.
Fasten all connections w/ sheet metal screws and
tape all joints with Silver Tape or Duct Tape.

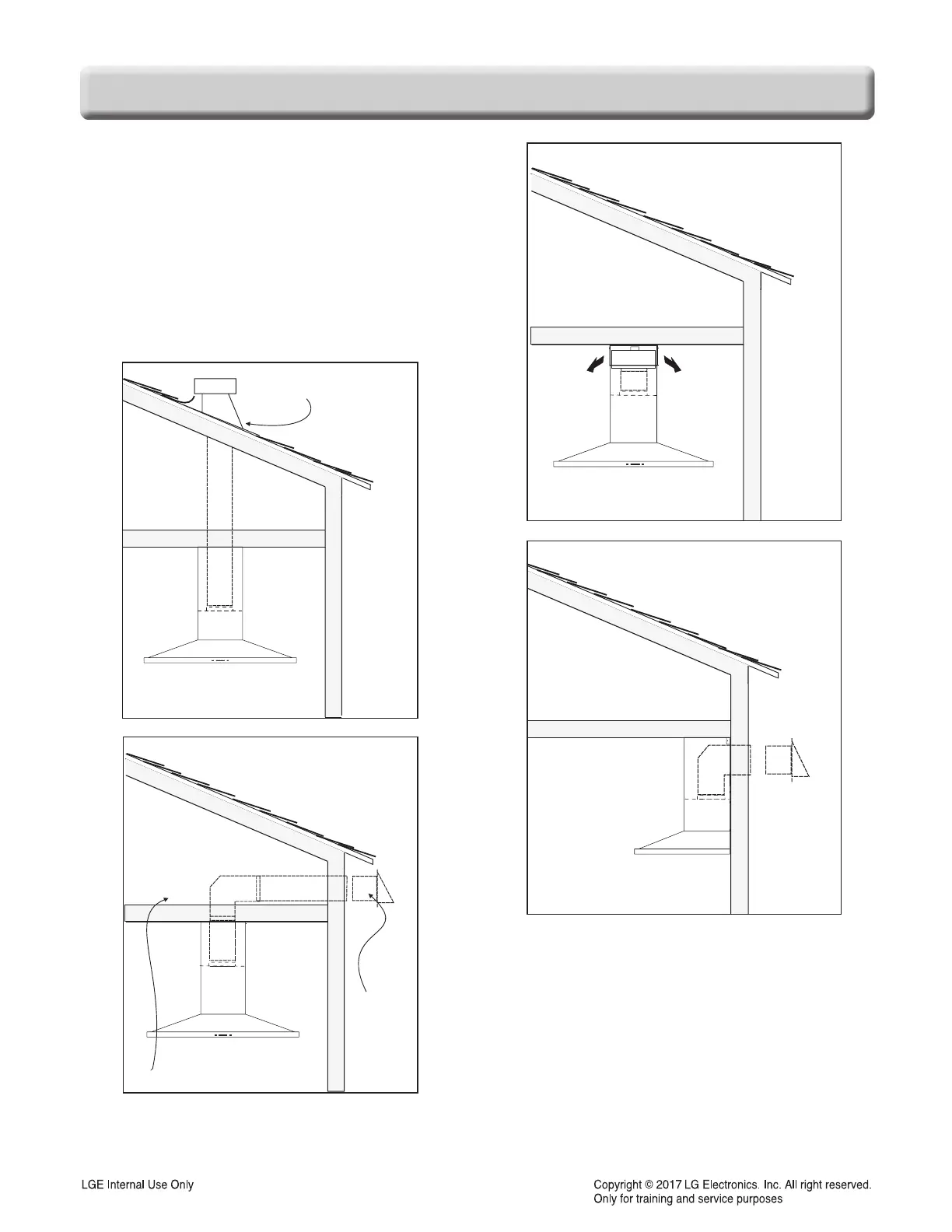

Some Ducting Options
Roof Pitch w/
Flashing & Cap
(blower
housing)
side wall cap
w/ gravity damper
Soffit or crawl space
(blower
housing)
ductless
recirculating
