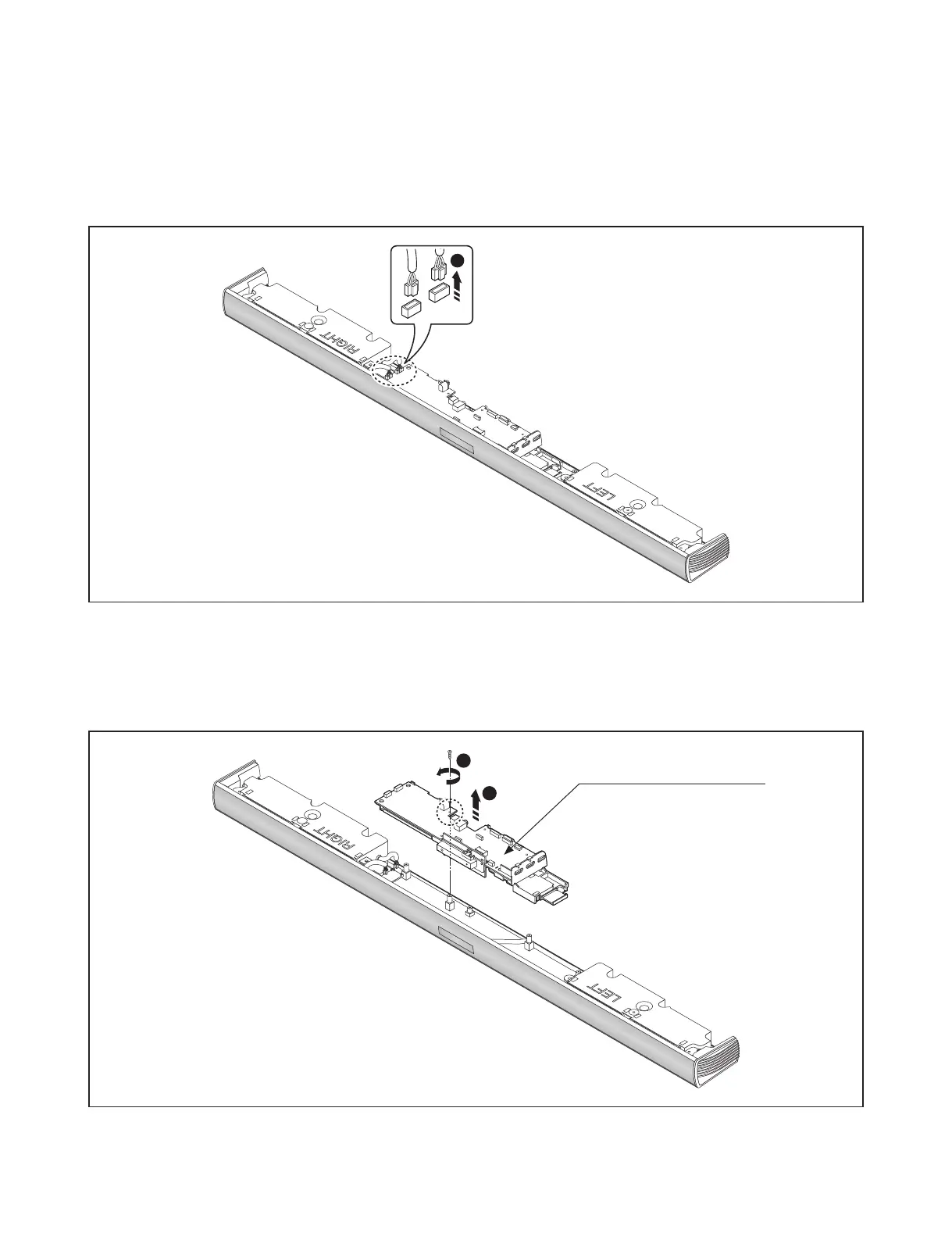

HOW TO DISASSEMBLE THE MAIN UNIT
2) Remove the screw.
3) Remove the Main Frame Assembly (Main Chassis + PCBA).
1-2. Main Frame Assembly
1) Disconnect the 2 harness cables from the Main PCB Assembly.
Main Frame Assembly
FL
FR
