4-6

Only for training and service purposes.

ONE POINT REPAIR GUIDE

2. WIRELESS CONNECTION

Wireless connection malfunction.

2-1. 3.3 VA

1) Check 3.3 VA at WFB604.

2-2. Connection

1) Wireless module connection closely.

2) Implement Wireless Factory Reset.

 MAIN SET : Soundbar vol MIN and push Mute key (sustain 3 ~ 5 seconds).

 Subwofer :  Press Pairing button on the rear of the wireless subwoofer.

   The LED of of the wireless subwoofer blink red and green, pull out power cord.

   The main set and the wireless subwoofer are factory reset mode, then power on.

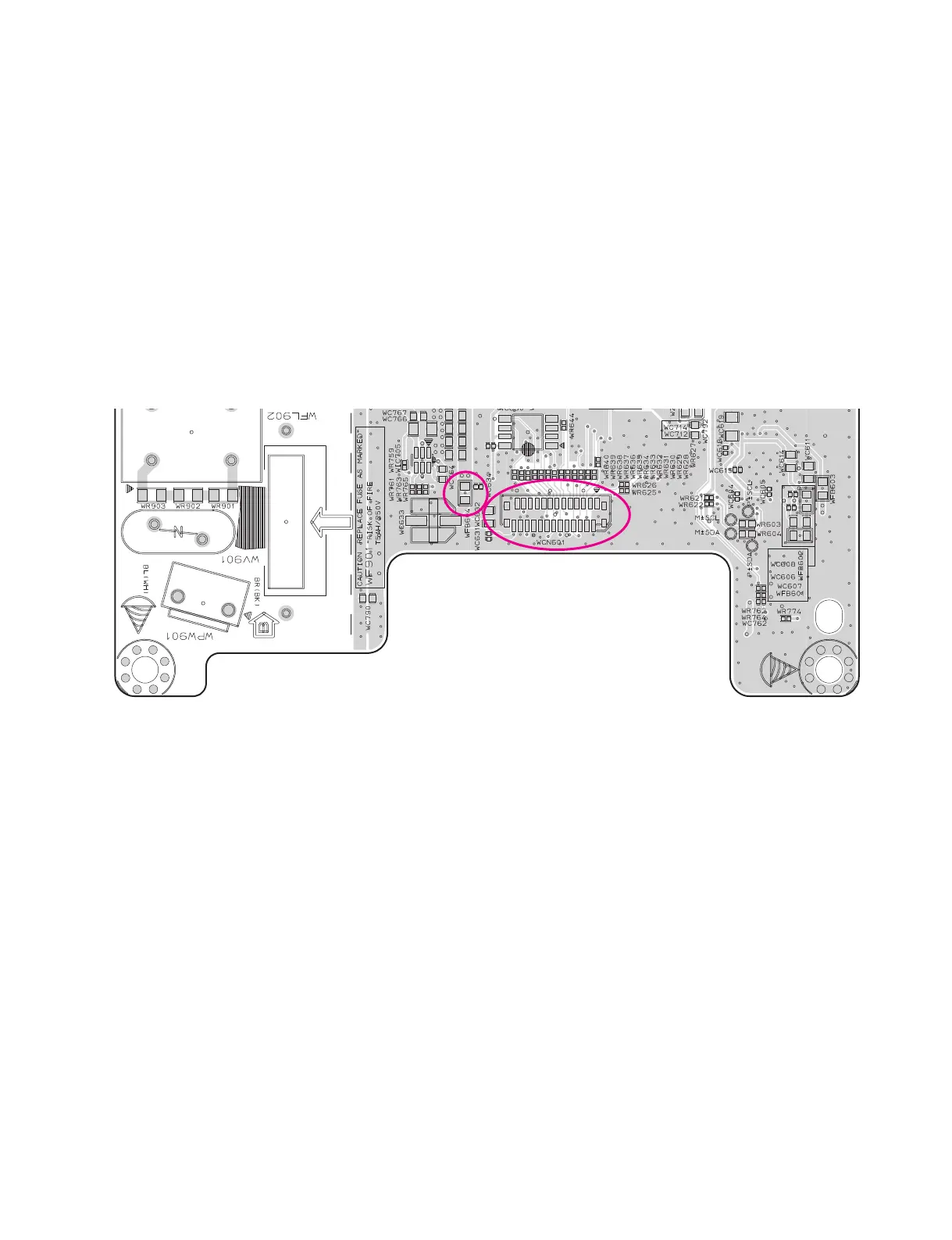

< Woofer SMPS & AMP board top view >

WFB604

Wireless module

Connection check
