LG SJ4Y - Tact Key

3-17
Copyright © 2017 - 2019 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
3. TACT KEY

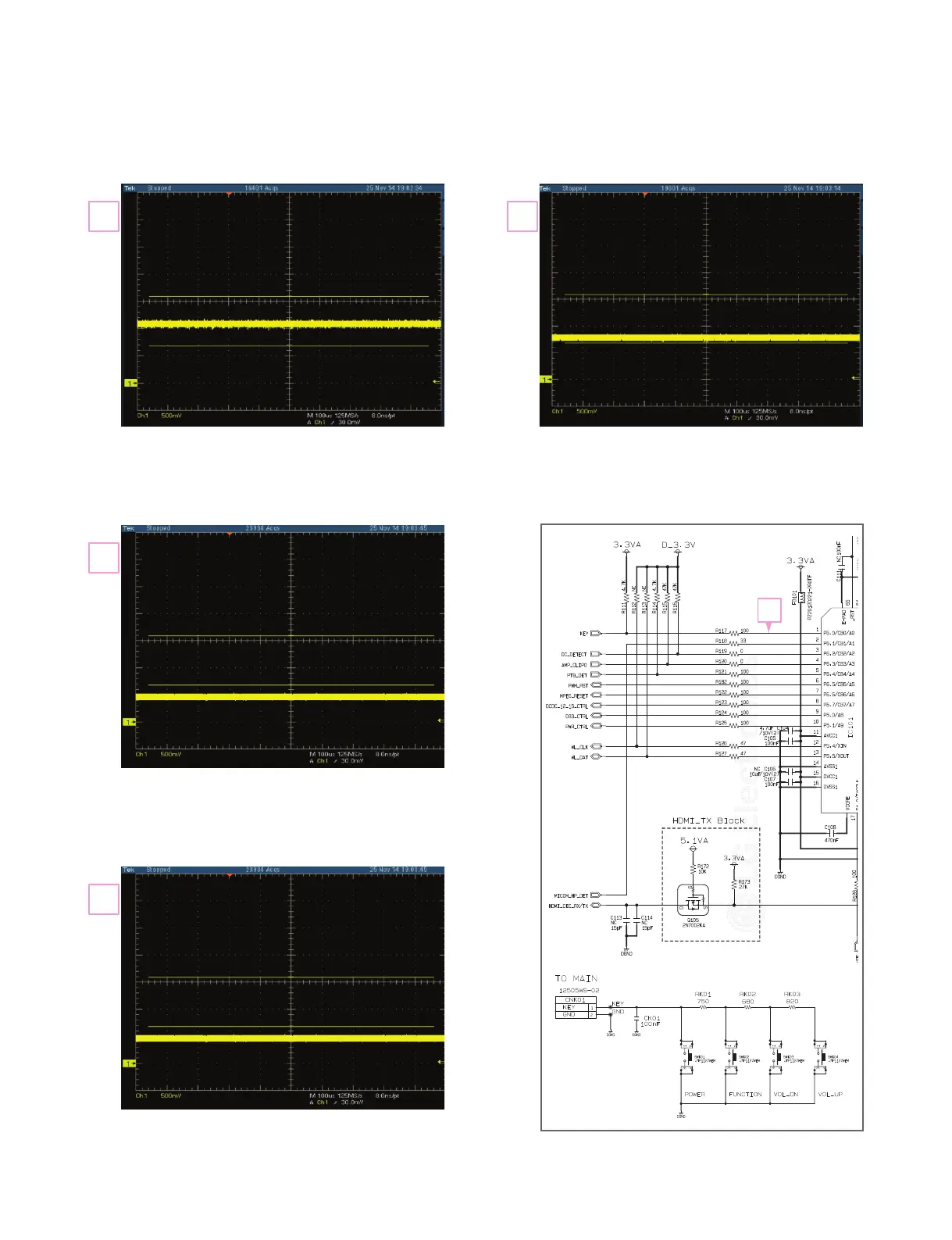

FIG 3-2. Press FUNC Key
0.72 ~ 0.82 V
FIG 3-1. Press Power Key
1 ~ 1.13 V
7
7
FIG 3-3. Press VOL - Key
0.424 ~ 0.485 V
7
FIG 3-4. Press VOL + Key
0 V
7
7
