LG SJ4Y - Waveforms of Major Check Point; Crystal; Flash Memory

4-7
Copyright © 2017 - 2019 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

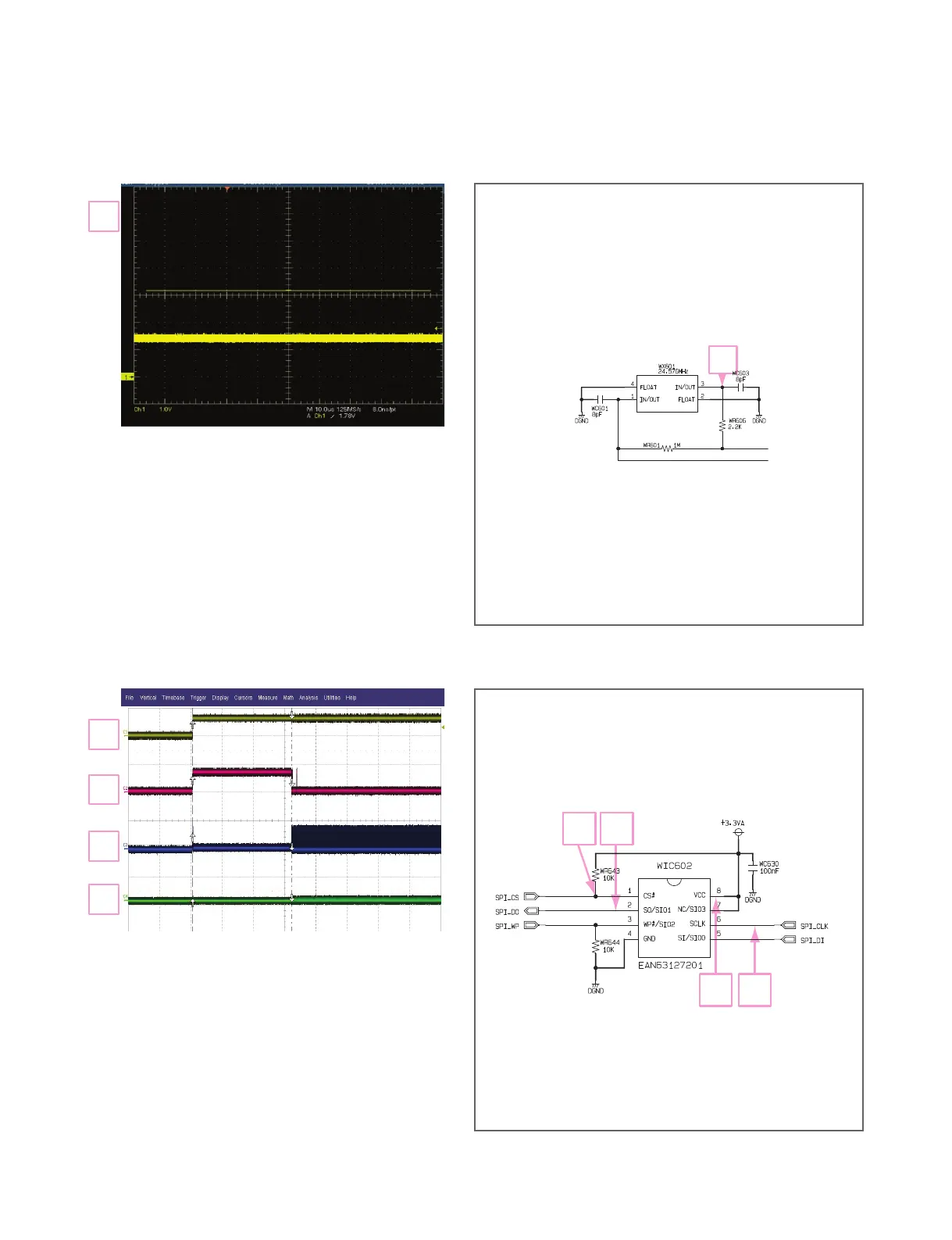

WAVEFORMS OF MAJOR CHECK POINT
1. CRYSTAL
2. FLASH MEMORY
FIG 1. WX601 (24.576 MHz)
FIG 2. VCC, CS#, CLK, DO
1
2
4
3
5
VCC
CS#
CLK
DO
1
2 4
53
