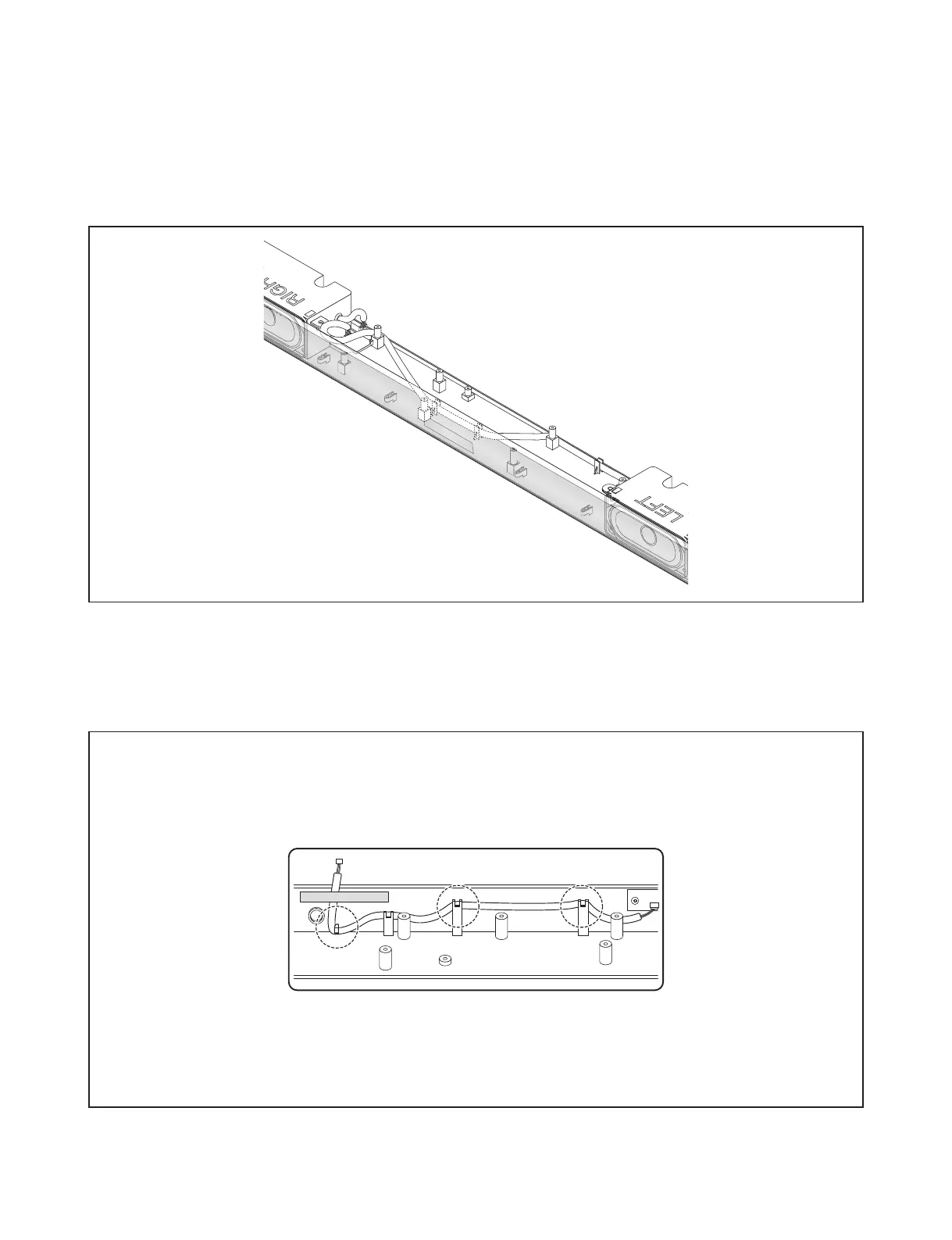

Figure 1-5 (1). < Speaker network cable from SPK Chamber L/R Assembly to MAIN PCB >
Figure 1-5 (2). < Harness cable from KEY PCB to MAIN PCB >
HOW TO DISASSEMBLE THE MAIN UNIT
1-5. How to organize cables
When assembling, place the cables (Speaker network cables and Key cable) as shown in the fi gure below.
To Next Page
