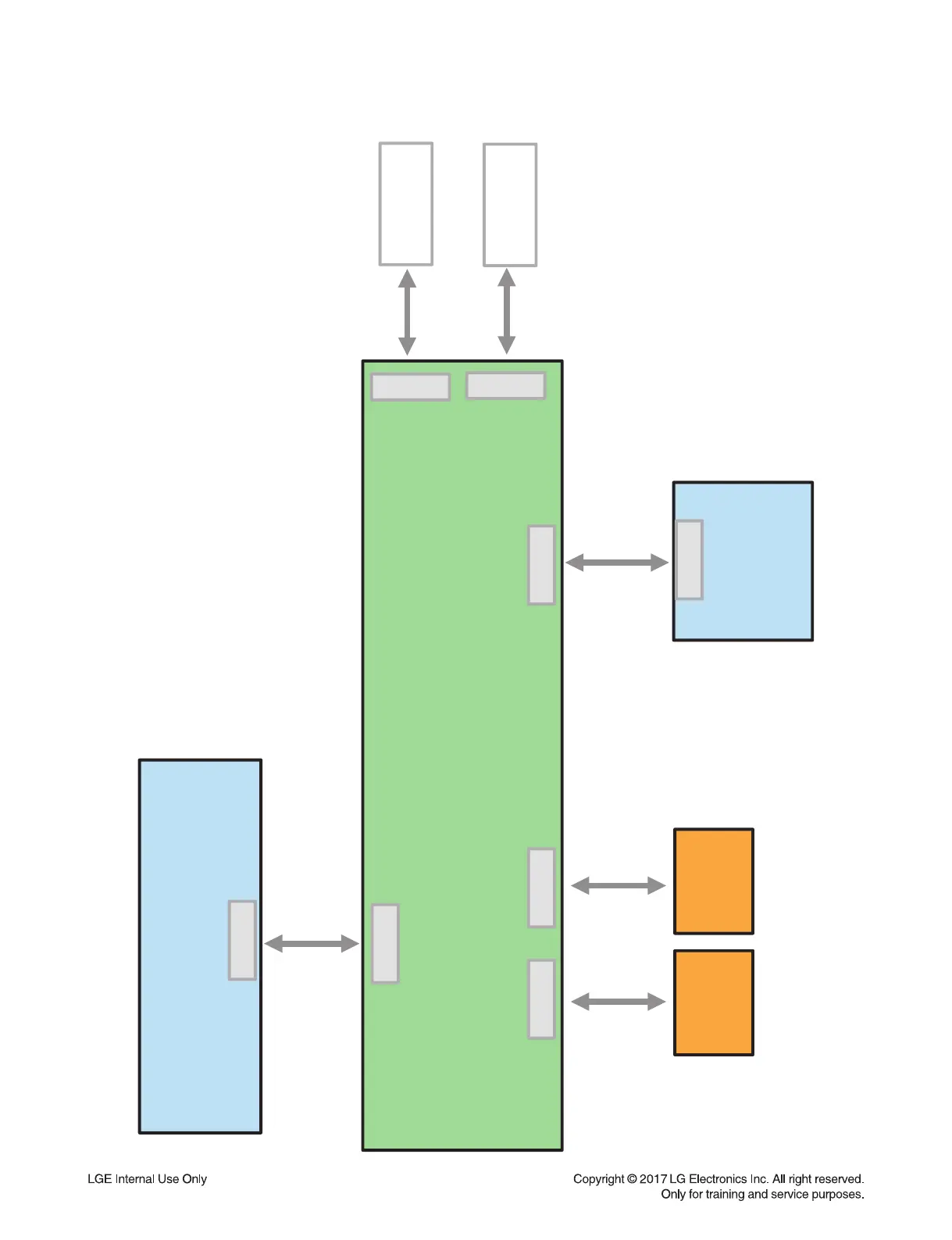

LG SJ5 - Wiring Diagram

3-2
MAIN
(FR4 Epoxy 4layer 1.2T 234x59.5)
Array size: 242x133
FRONT
(CEM-1 1.6T 128.5x55)
Array size: 257x128
WirelessBT
CN101
CN102 CN107
12P FFC 26P FFC
CN704
CN703
5P Harness
4P
Harness
SPK (FL)
SPK (FR)
CN103
2P Harness
KEY
(CEM-1 1.6T)
CNK01
12P B to B
CNF02
WIRING DIAGRAM
