LG SJ5 - Waveforms of Major Check Point

3-16

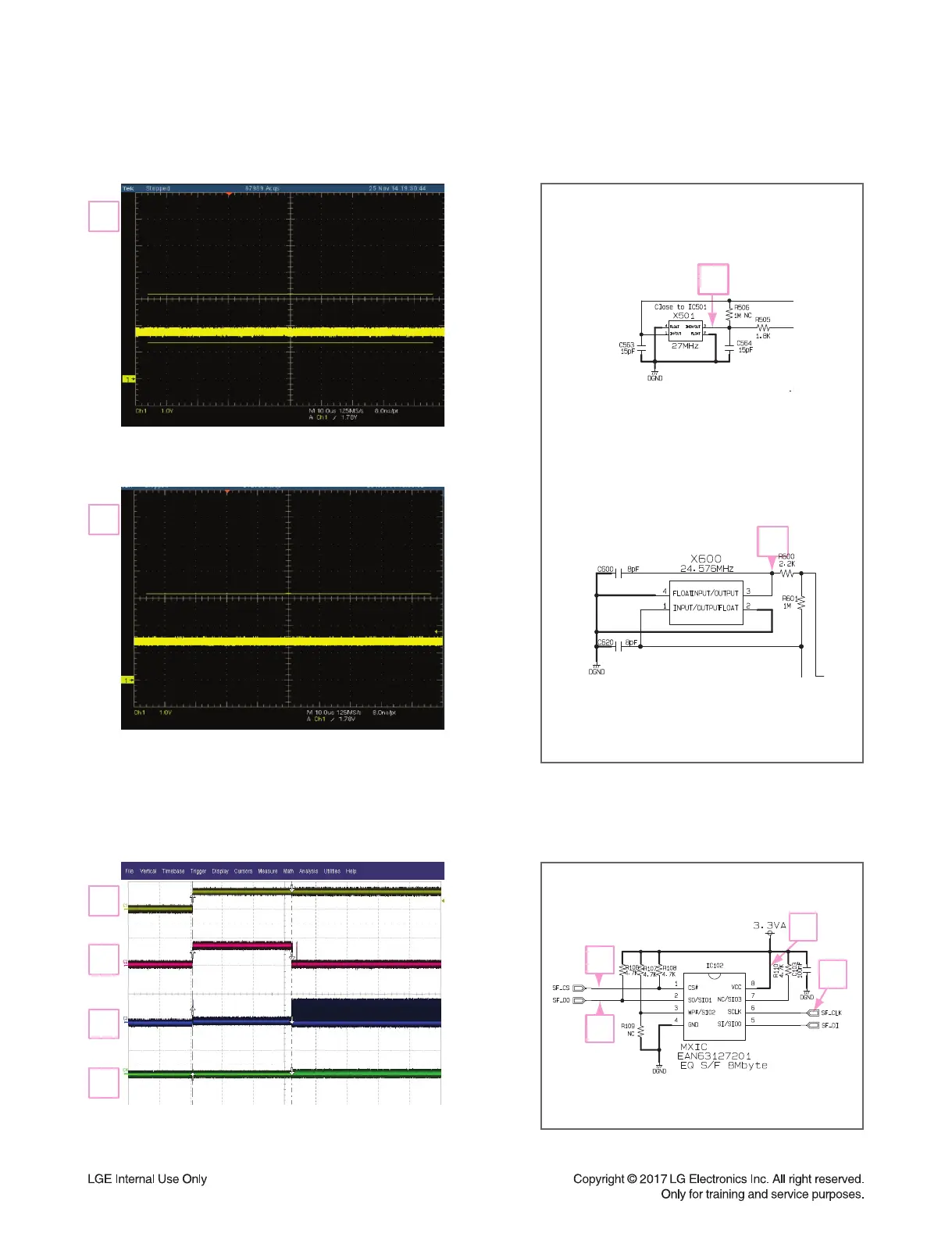

WAVEFORMS OF MAJOR CHECK POINT
1. CRYSTAL
FIG 1-1. X501 (27 MHz)
1
FIG 1-2. X600 (24.576 MHz)
2
2. FLASH MEMORY
FIG 2. VCC, CS#, CLK, DO
3
4
5
6
VCC
CS#
CLK
DO
6
5
3
4
1
2
