ONE POINT REPAIR GUIDE
PROTECTION ERROR
No display or No Sound.
3-2. S(SHUT DOWN) PROTECTION
3-2-1. Solution
Replace MAIN board.
3-2-2. How to troubleshoot (Countermeasure)
1) Check PVDD voltage (25 V) of IC700, IC701 pin38, 37, 36.
- If PVDD voltage has 8.5 V under, refer to STEP 1-1.
2) Check GVDD, VDD voltage (12 V) of IC700, IC701 pin1, 2.
- If GVDD, VDD voltage has 8.5 V under, refer to STEP 1-1.
3) Check impedance (4 Ω) of speaker unit.
- If impedance of speaker unit has 1 Ω under, replace speaker unit.
4) If check point 1), 2), 3) is ok, replace MAIN board.
3-2-3. Service hint (Any picture / Remark)

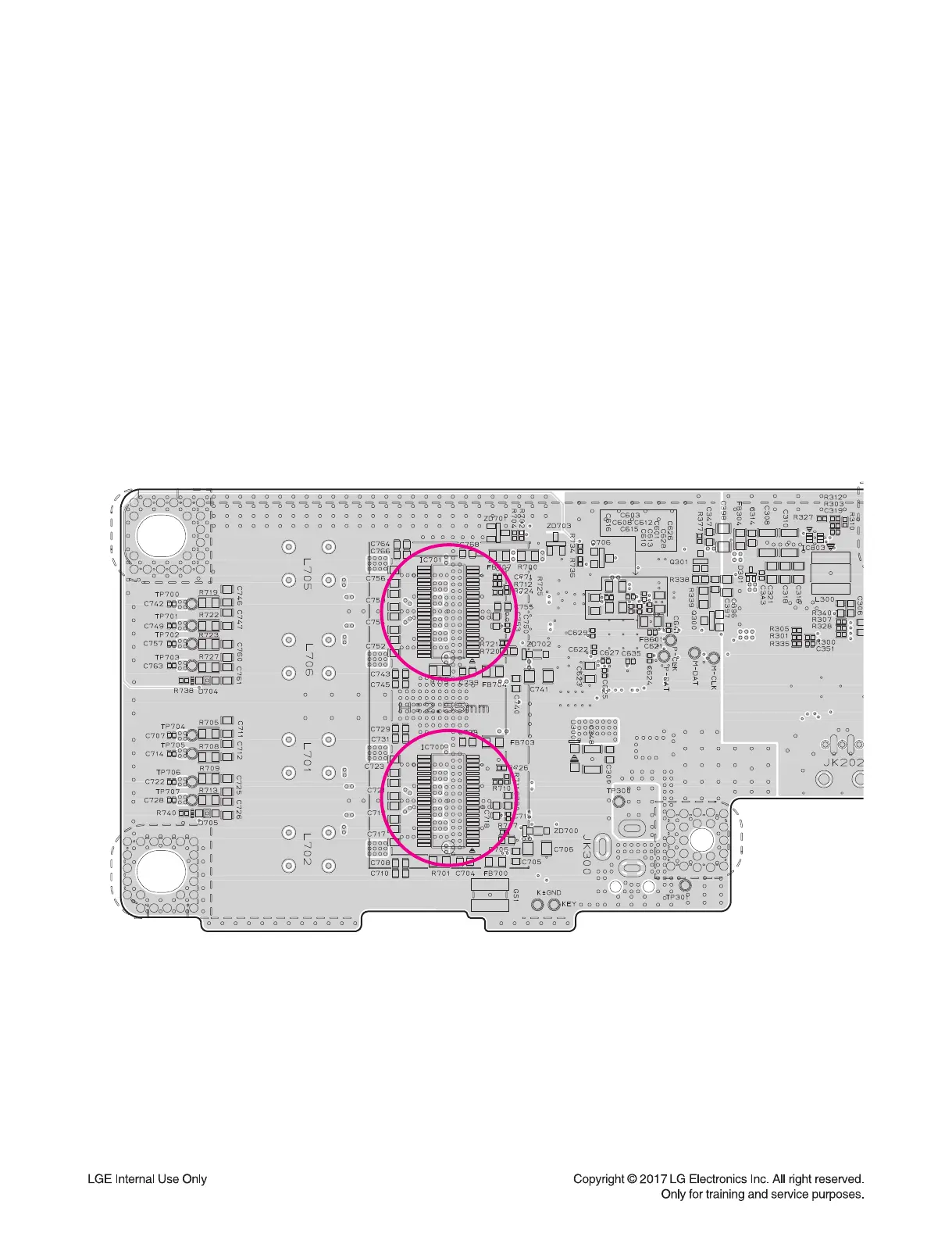

< MAIN board bottom view >
IC701
IC701
IC700
IC700
