2-4
Copyright © 2017 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
1
1
4
3
3
3
3
2

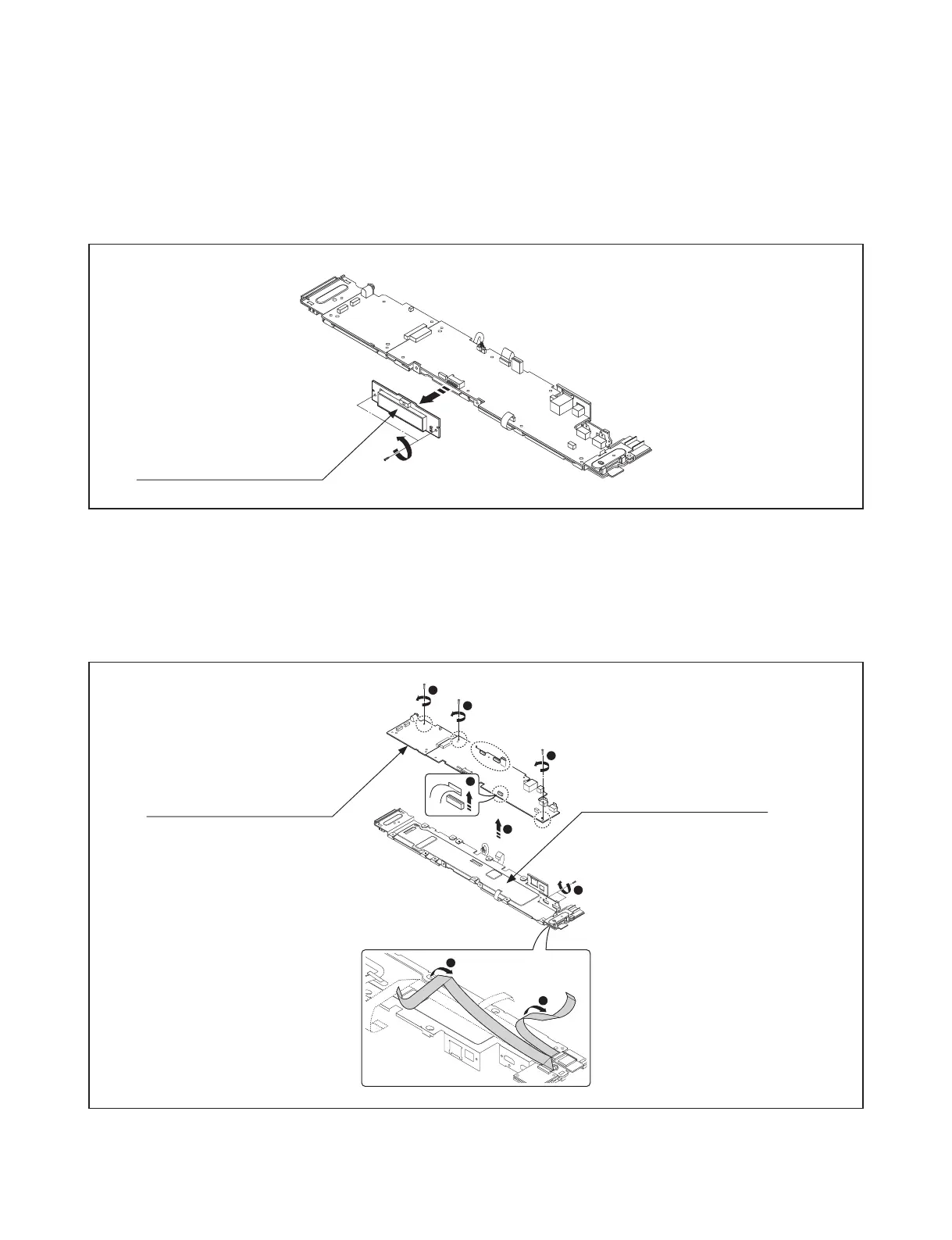

Figure 1-2-1
Figure 1-2-2
HOW TO DISASSEMBLE THE MAIN UNIT
1-2-1. Front PCB Assembly
1) Remove the 2 screws.
2) Remove the Front PCB Assembly.
1-2-2. Main PCB Assembly
1) Detach the cables from the Main chassis.
2) Disconnect the cables from the Main PCB.
3) Remove the 5 Screws (Main + HDMI Jack).
4) Remove the Main PCB Assembly.
Front PCB Assembly
Main PCB Assembly
Main Chassis
