LG SJ8 - Waveforms of Major Check Point; Crystal

3-15
Copyright © 2017 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
1

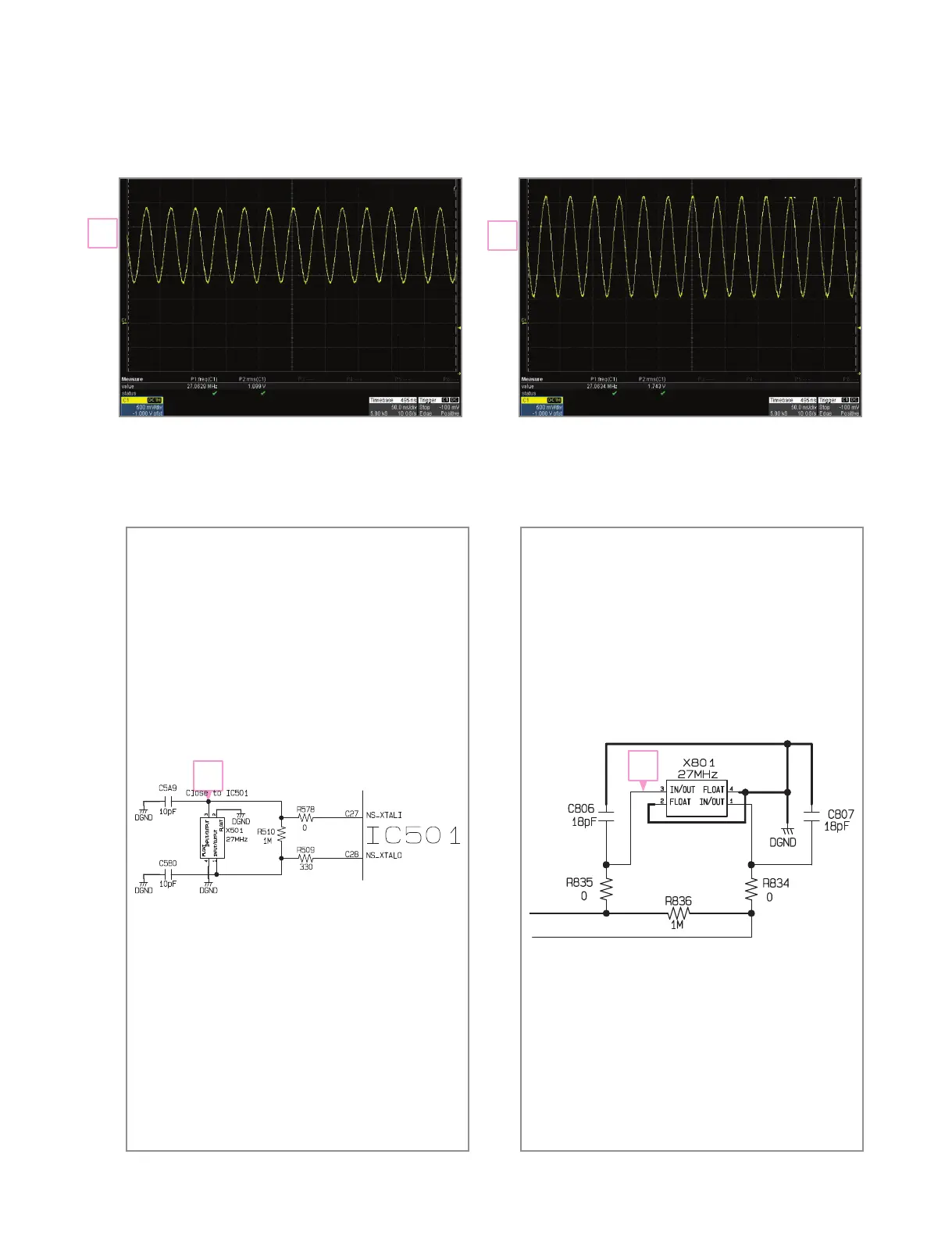

WAVEFORMS OF MAJOR CHECK POINT
1. CRYSTAL
Fig 1-2. Crystal
X801 (27 MHz)
Fig 1-1. Crystal
X501 (27 MHz)
1
2
2
