LG SJ8 - How to Disassemble the Main Unit

2-3
Copyright © 2017 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
2
3
1
1

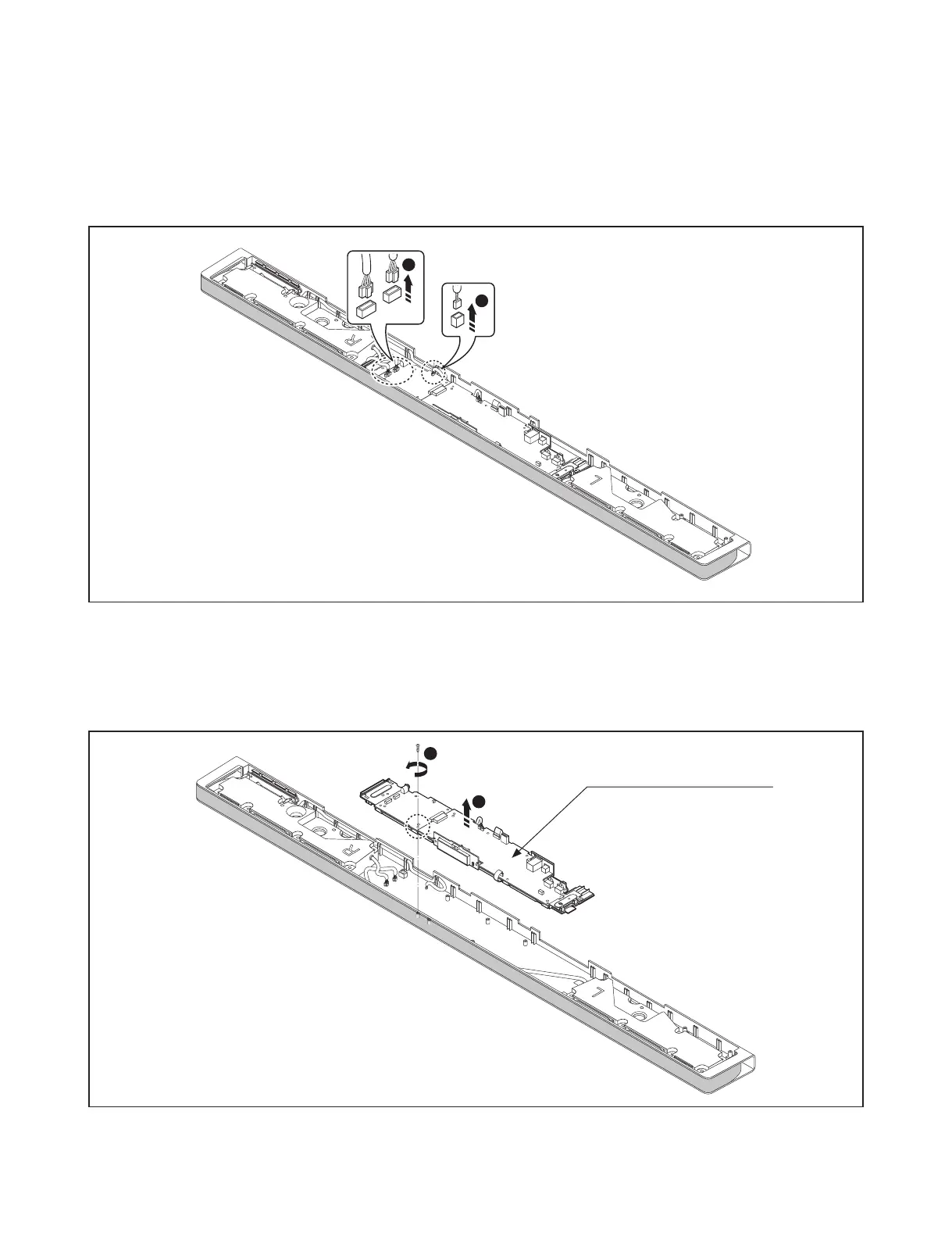

Figure 1-2 (2)
Figure 1-2 (1)
HOW TO DISASSEMBLE THE MAIN UNIT
2) Remove the screw.
3) Remove the Main Frame Assembly (Main Chassis + PCBA).
1-2. Main Frame Assembly
1) Disconnect the 3 harness cables from the Main PCB Assembly.
Main Frame Assembly
FL
FR
KEY
