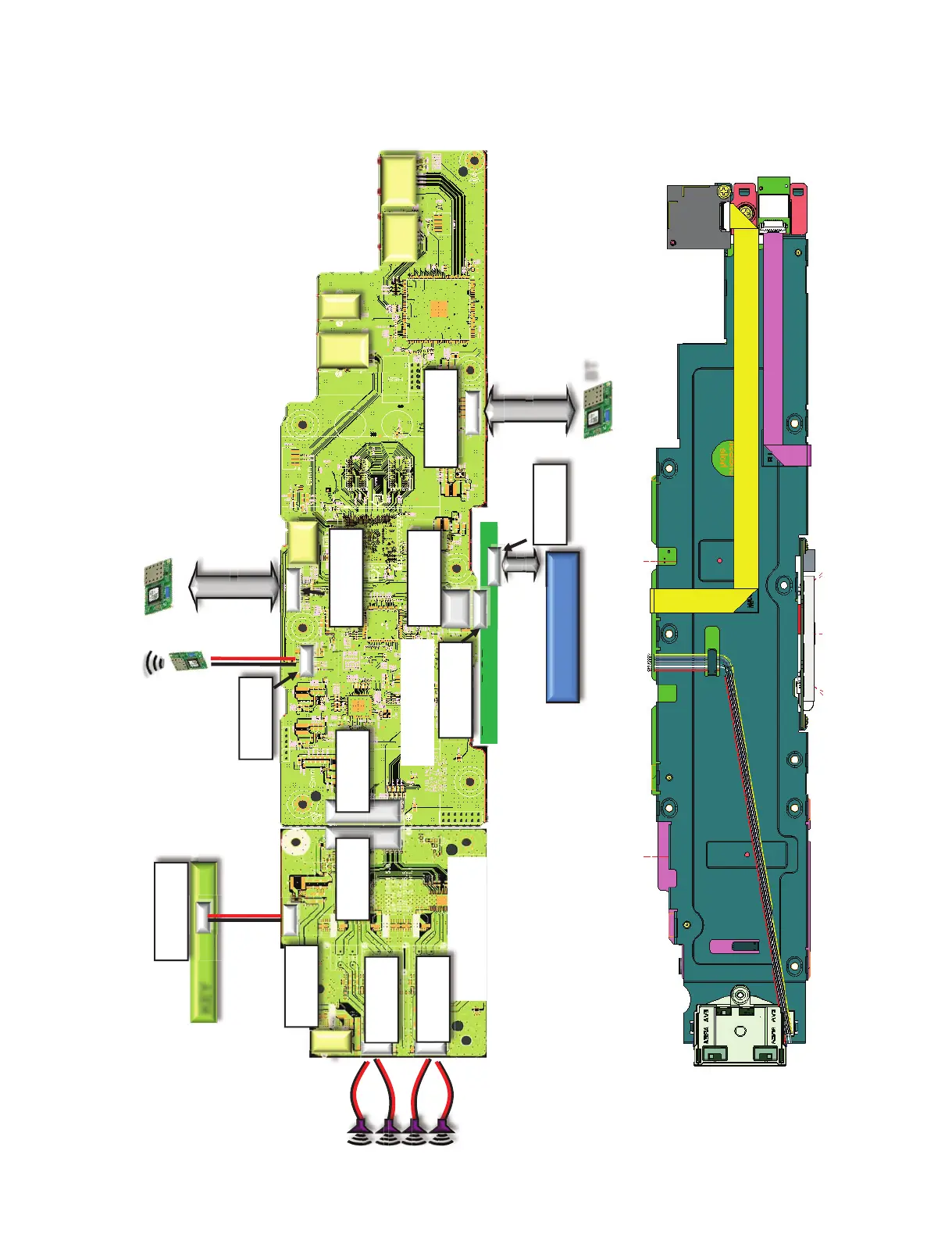

LG SJ8 - Wiring Diagram

3-2
Copyright © 2017 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Front PCB
OPT
ADAPTER
USB
MAIN PCB
AMP PCB
KEY
E
R
2P, 1.25 mm
ST, Lock, SMD
2P, 1.25 mm
Angle, Lock , SMD
8P, 1.25 mm
ST, Lock, SMD
10P, 1 mm
Straight, SMD
BT
26P, 0.5 mm
Straight, SMD
Wireless
HDMI
HDMI
Ethernet
WIFI
26pin BtoB ,
Angle, Famale
26pin BtoB ,
Angle, Male
A
M
5P, 2.0 mm
ST, Lock, SMD
4P, 2.0 mm
ST, Lock, SMD
LCD Module
10P, 1 mm
AG, Lock, SMD
F
P
C
B
16P, 2 mm
ST, SOCKET, SMD
16P, 2 mm
AG, HEADER, SMD
MAIN PCB
AMP PCB
Front PCB
WIFI Cable
Wireless Cable
BT Cable
Wireless Module
BT Module
WIFI Module
WIRING DIAGRAM
