TACT KEY
About : 0.77 V
About : 3.34 V

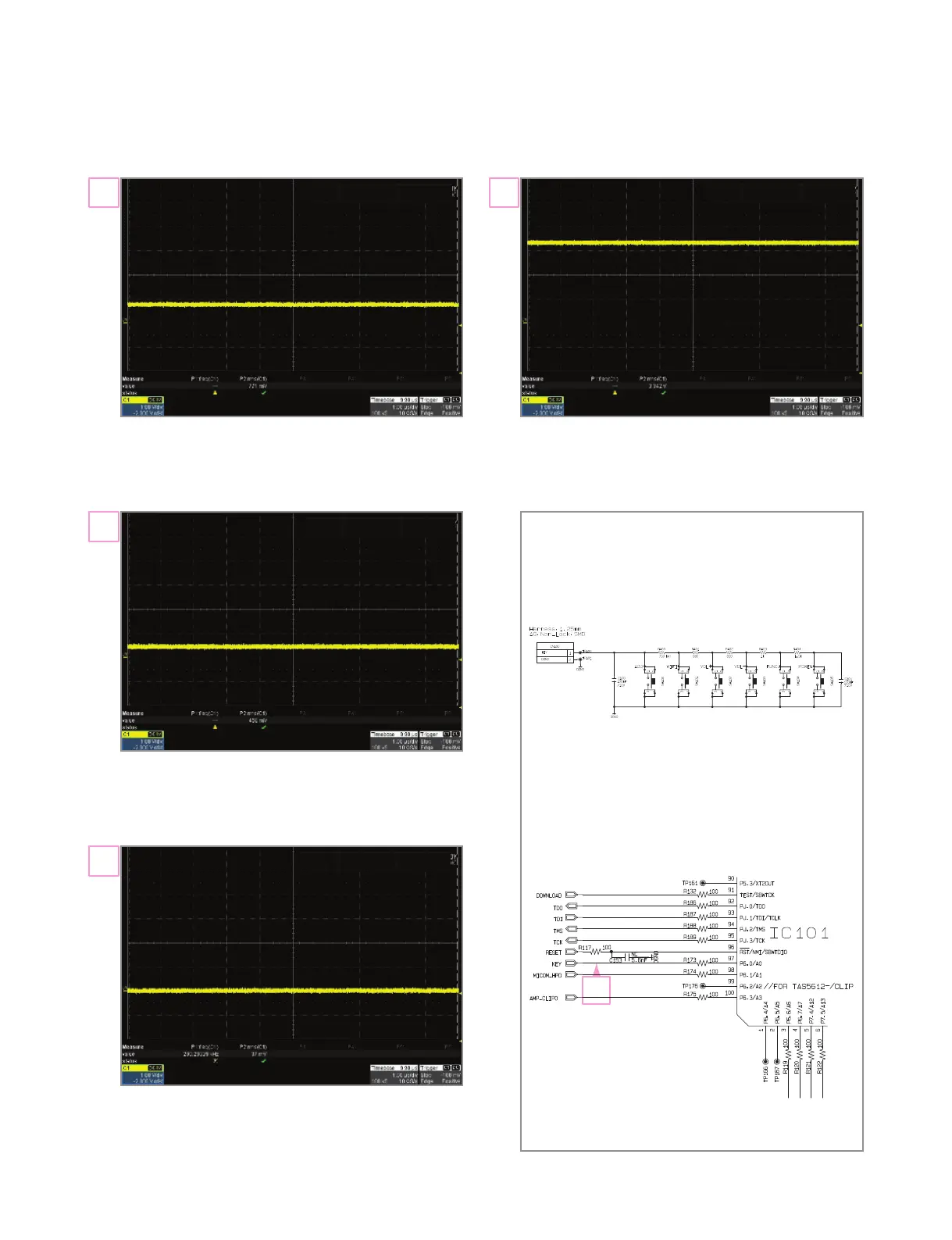

Fig 3-4. Tact Key
Press VOL(+) Key
Fig 3-7. Tact Key
Press No Key
9 9
About : 0.45 V
Fig 3-5. Tact Key
Press Wi-Fi Key
9
About : 0 V
Fig 3-6. Tact Key
Press ADD Key
9
9
