KEY PCB

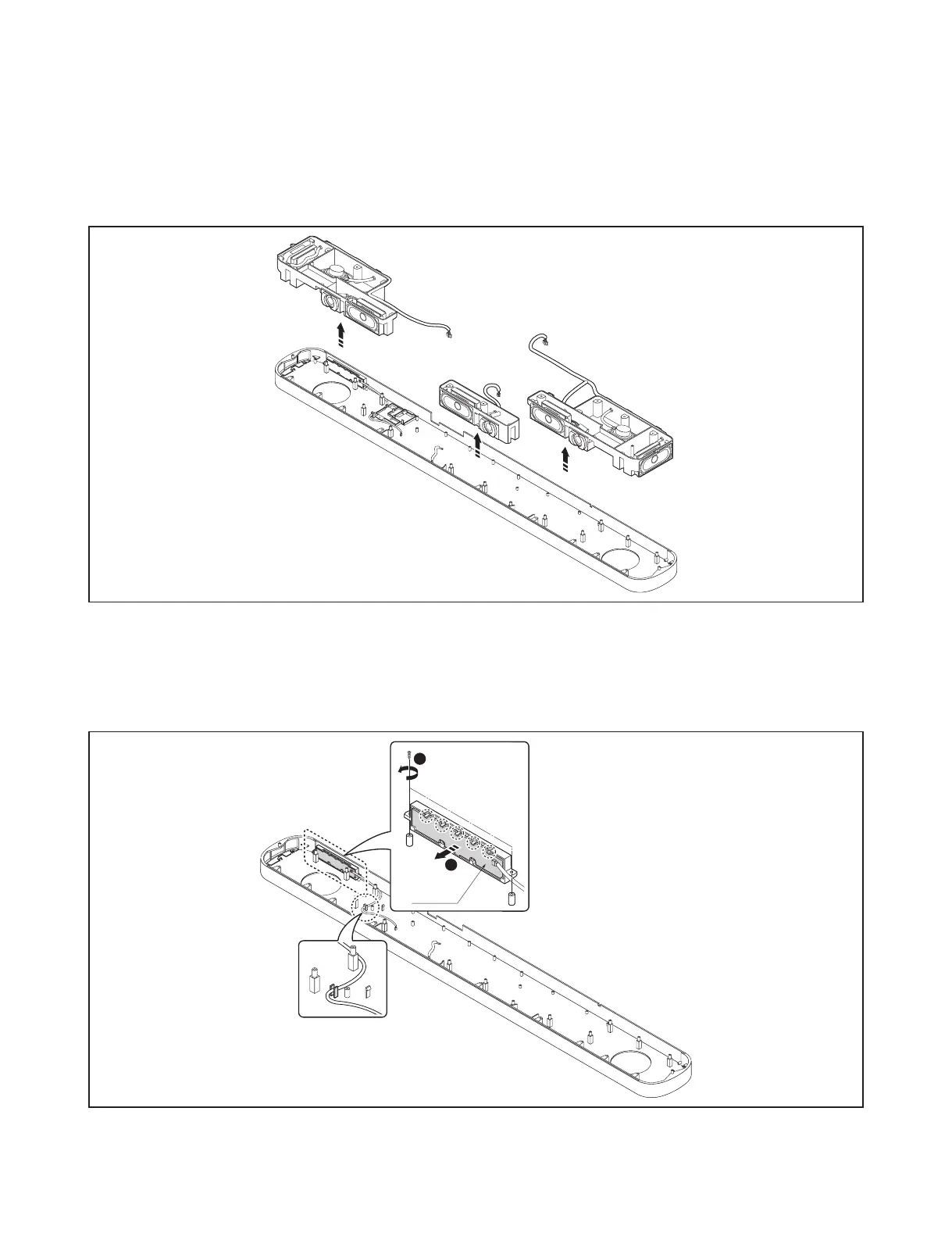

Figure 1-5
Figure 1-6
HOW TO DISASSEMBLE THE MAIN UNIT
1-5. SPEAKER CHAMBER Assembly
1) Remove the Speaker Chamber Assembly.
1-6. KEY PCB Assembly
1) Remove the 2 screws.
2) Disconnect the 5 hooks and then remove the KEY PCB Assembly.
