4. REMOTE CONTROL

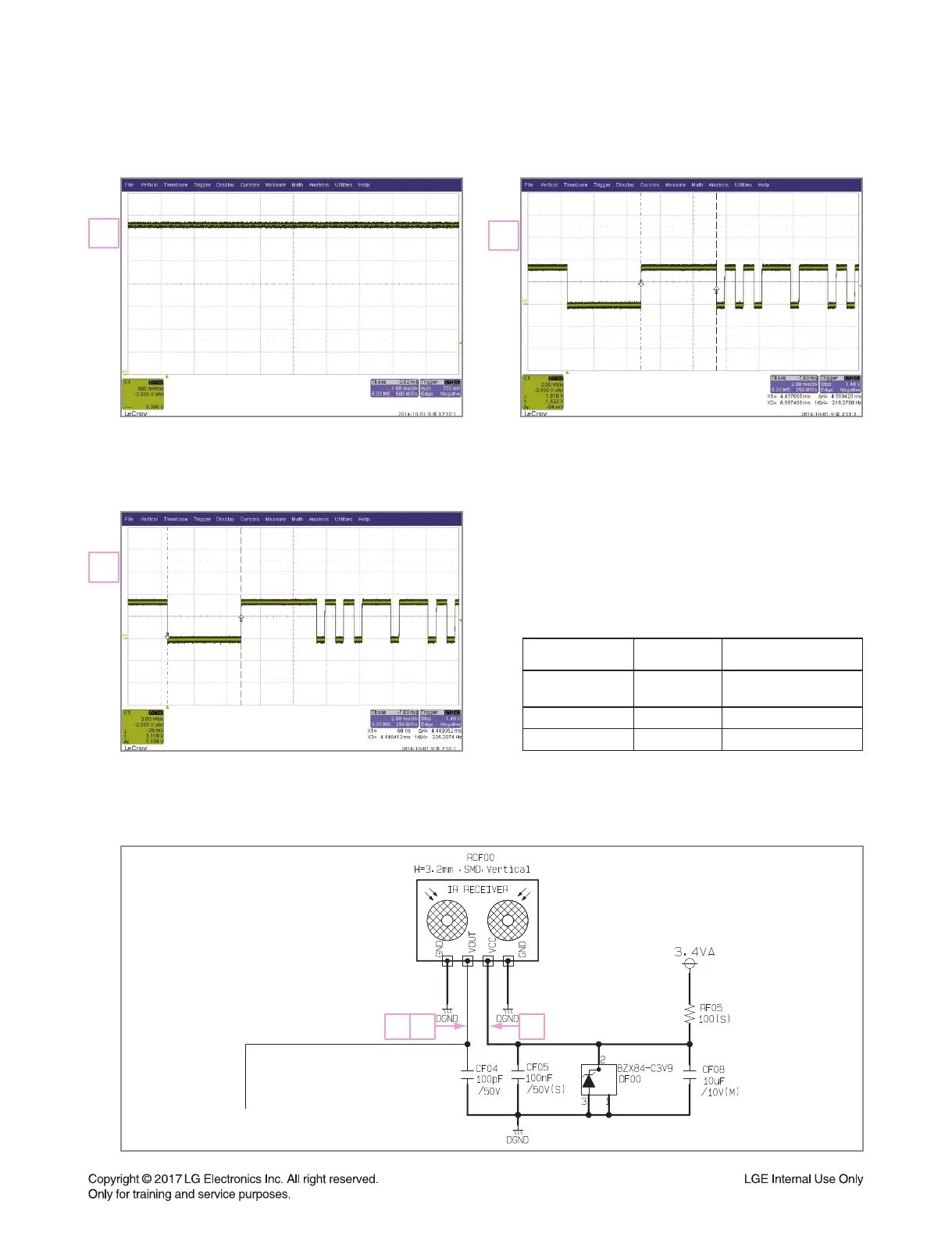

Fig 4-3. Remote Control
High Timing
Fig 4-1. Remote Control
Input Voltage
10
Fig 4-2. Remote Control
Low Timing
11
12
Item Measured Spec.
Input Level 3.3 V
IR Receiver Spec:
2.7 ~ 5.5 V
“ Low” Timing 4.4 ms 3.6 ms ~ 5.04 ms
“ High” Timing 4.48 ms 4.08 ms ~ 5.04 ms
