4-3

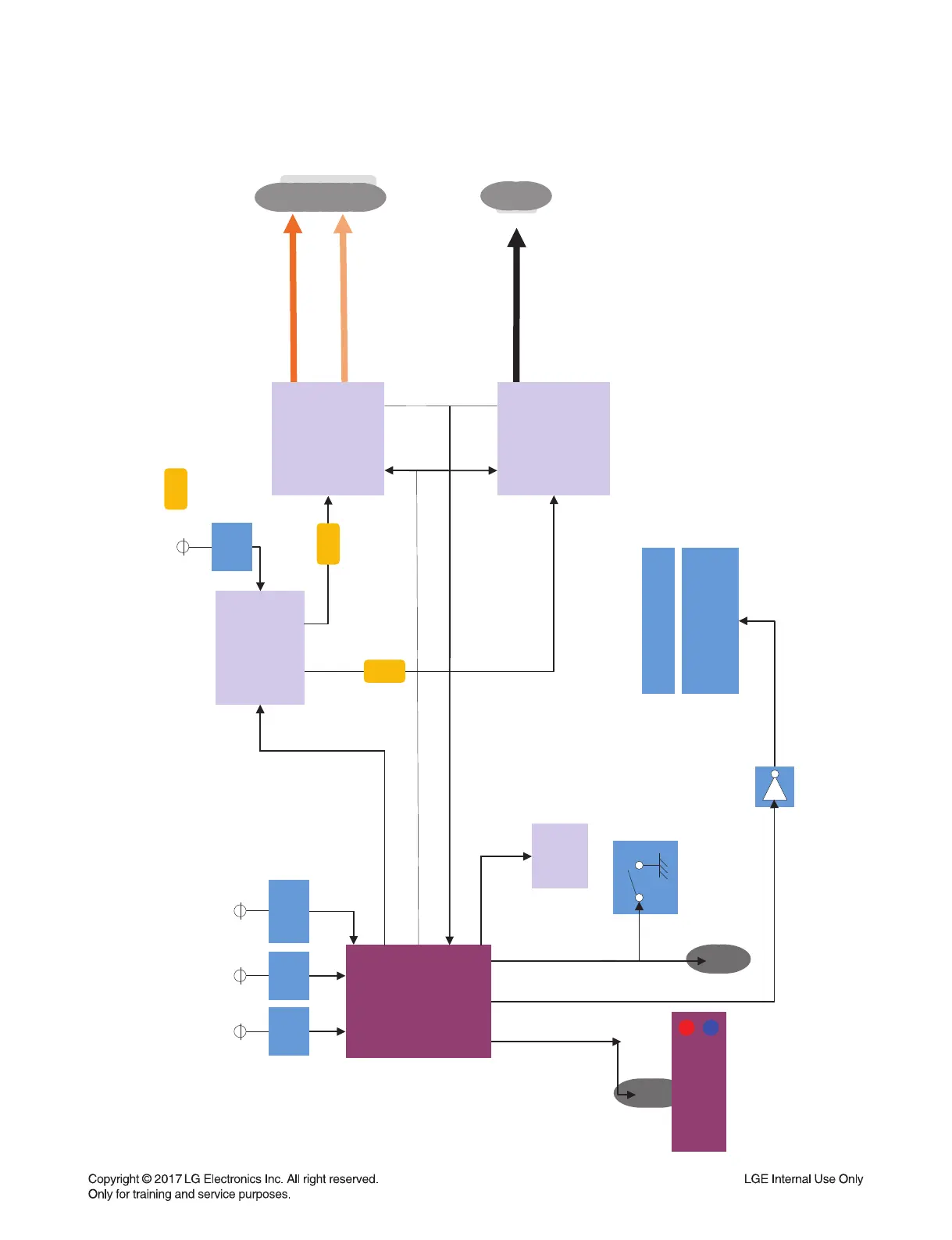

BLOCK DIAGRAM
Paring S/W
WIRELESS
MU
Serial
Flash
PWM
I2C, PWM_RST, I2S_AUDIO
LDO
5 VA
3.3 VA
AMP_PDN
AMP_SD
RED/BLUE_LED
DC-DC (12 V)
LDO (3.3V_PWM)
Buffer
S7127F
5 VA
Reset
P_CTRL
WL_Ready
SPI
Voltage
Detector
5 VA
P_SENSE
AMP
AMP
SDIO_W : Rear_3D
SDIO_X : Rear
SDIO_Y : Woofer
RL_OUT
RL_3D_OUT (RR_OUT)
RR_OUT (SW_OUT)
RR_3D_OUT
Woofer SPK
Connector
Resistors (OPTION)
Pairing
S/W CNT for Woofer
LED CNT
Rear SPK Connec
tor
DC-DC (5 VA
)
ST-BY
PARING STATUS
LDO
5 VA
3.3V
65
67
Table of Contents
Section 1 Summary
3
Table of Contents
3
Product Safety Servicing Guidelines for Audio Products
4
Servicing Precautions
5
General Servicing Precautions
5
Insulation Checking Prodedure
5
Electrostatically Sensitive (Es) Devices
5
Name of each Component
6
Wireless Subwoofer Connection
7
Hidden Key Mode
8
Software Update Guide
9
Specifications
17
Section 2 Cabinet & Main Chassis
18
Disassembly Instructions
19
How to Disassemble the Main Unit
20
How to Disassemble the Subwoofer
29
Exploded Views
34
Main Unit Section
34
Wireless Subwoofer Section
35
Packing Accessory Section
36
Section 3 Electrical
38
Wiring Diagram
39
Block Diagrams
40
System Block Diagram
40
Power Block Diagram
41
Booting When You Turn the Unit On, no Message or "Hello" on Front Panel
42
One Point Repair Guide
42
Sound
46
Protection Error
50
Crystal
52
Waveforms of Major Check Point
52
Flash
54
Tact Key
55
Remote Control
56
Optical
57
Capacitors
58
Circuit Voltage Chart
58
Connectors
58
Ics
58
Printed Circuit Board Diagrams
59
Smps P. C. Board Diagram
59
Main P. C. Board Diagram
61
Hdmi/ Jack P. C. Board Diagram
62
Front P. C. Board Diagram
63
Key P. C. Board Diagram
63
Section 4 Wireless Subwoofer Part
64
Wiring Diagram
65
Block Diagram
66
One Point Repair Guide
67
Power Problem
67
Power on Error (12 V, 5 Va)
69
Power on Error (3.3 Va, 3 V)
70
Wireless Connection
71
Crystal
72
Flash Memory
72
Waveforms of Major Check Point
72
Voltage
73
Amp Voltage
75
Pwm
76
Led
77
Capacitors
78
Circuit Voltage Chart
78
Connector
78
Ics
78
Printed Circuit Board Diagrams
79
Woofer Smps P. C. Board
79
Woofer Amp P. C. Board
80
Woofer Key P. C. Board
80
