3-7
ONE POINT REPAIR GUIDE
NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR
“HELLO” ON FRONT PANEL
When you turn on your set, it will blank / no message on front panel, and stand-by LED doesn’t work.
1-3. LCD System power 12 V, VCC_5V (No 12 V, VCC_5V)
1-3-1. Solution
Replace MAIN/ FRONT board.
1-3-2. How to troubleshoot (Countermeasure)
1) Please check CN101 12 V (pin9), VCC_5V (pin4).
2) If 12V, VCC_5V is abnormal, replace MAIN board.
3) If 12V, VCC_5V OK, replace FRONT board.

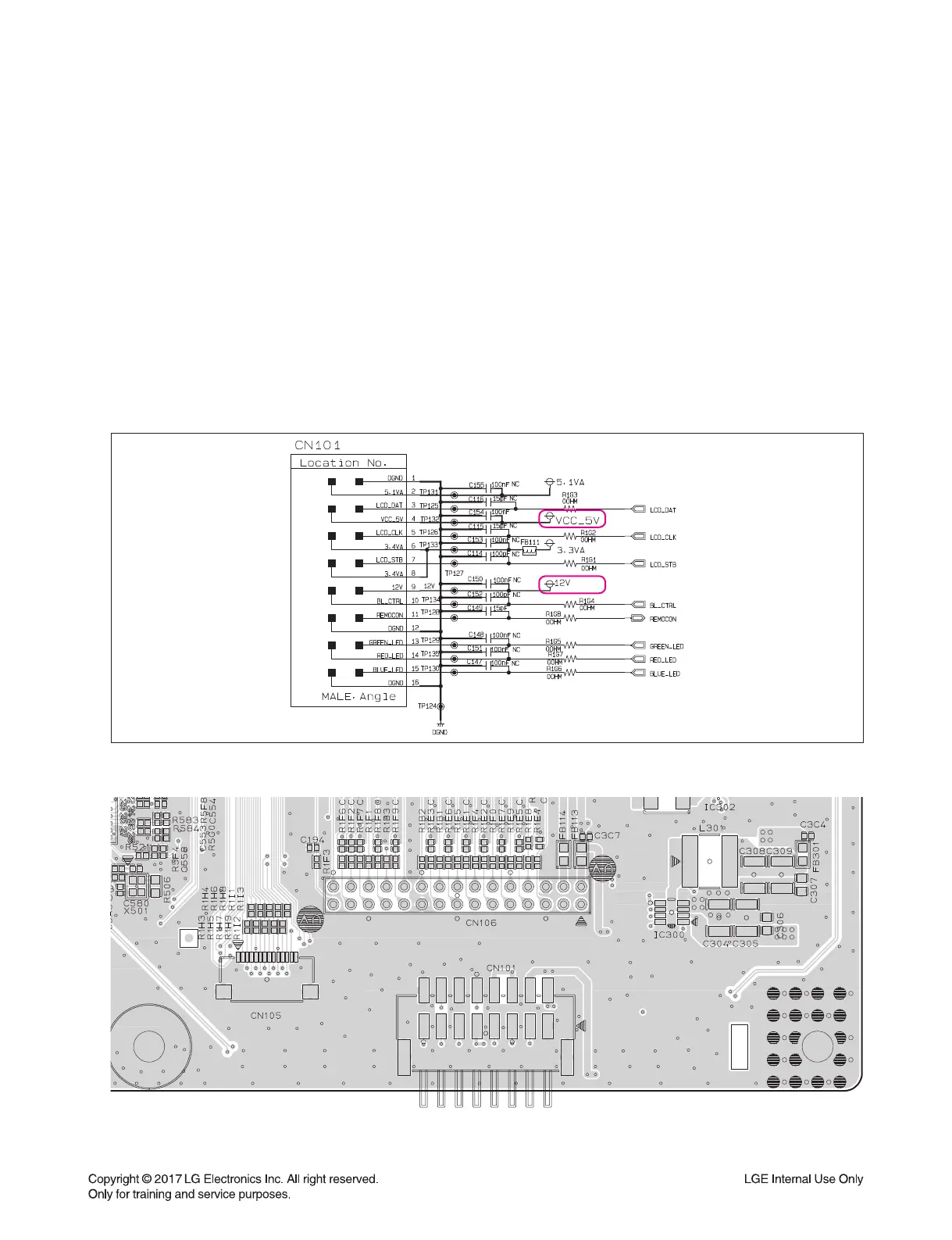

1-3-3. Service hint (Any picture / Remark)
< MAIN board top view >
CN101
To Next Page
