LG SPJ9B-W Service Manual
5
of 1
of 1 rating
81 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3-10
ONE POINT REPAIR GUIDE
NO SOUND
2-3. HDMI
2-3-1. Solution
Replace JACK board.
2-3-2. How to troubleshoot (Countermeasure)
1) Please check soldering status of HDMI jack and check HDMI_5.1VA at IC803 pin1.
2) If soldering status and 5.1 VA are abnormal, replace JACK board.

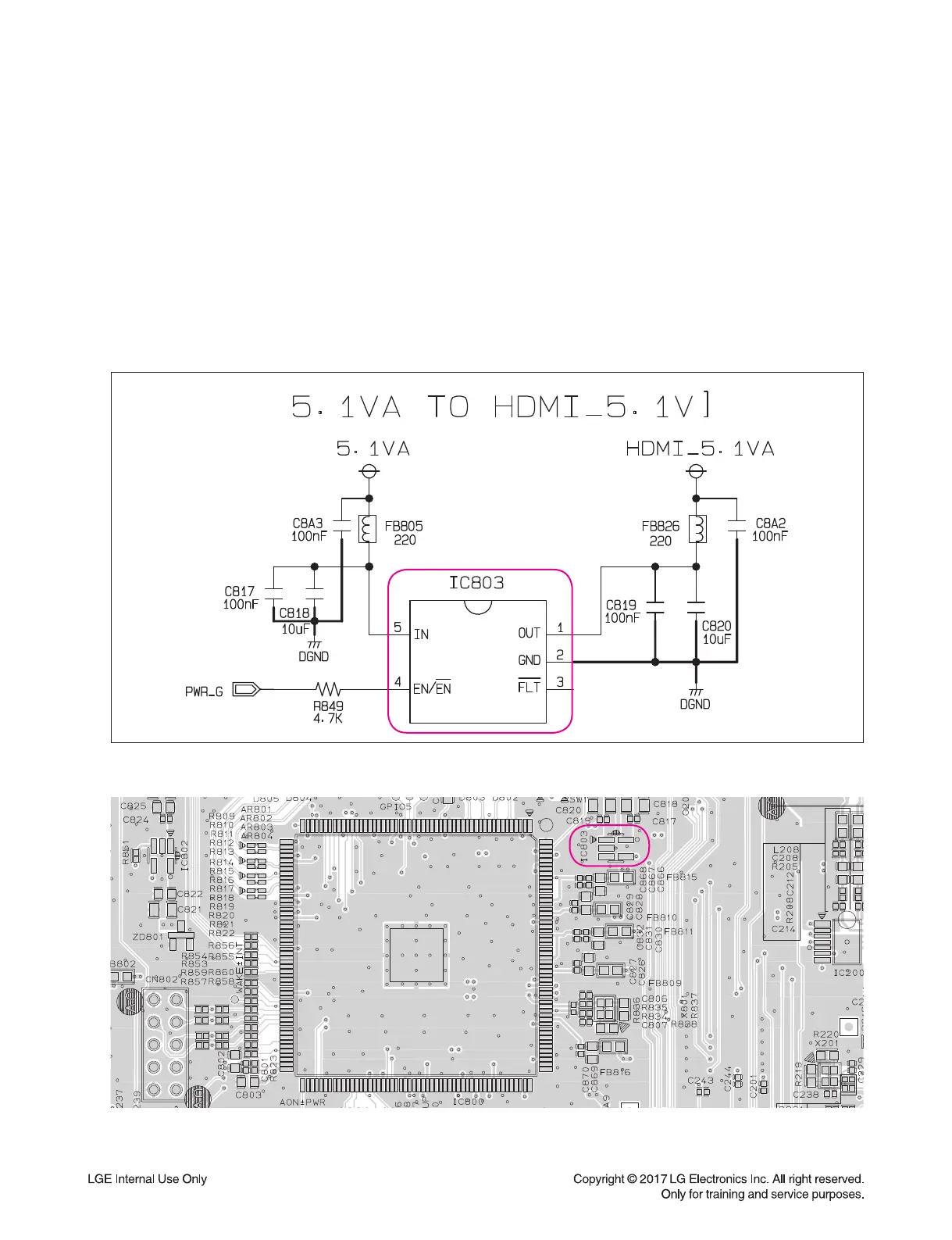

2-3-3. Service hint (Any picture / Remark)
< JACK board top view >
IC803
IC803
IC800
IC800
46
48
