MULTI F OUTDOOR UNIT
'LPHQVLRQV

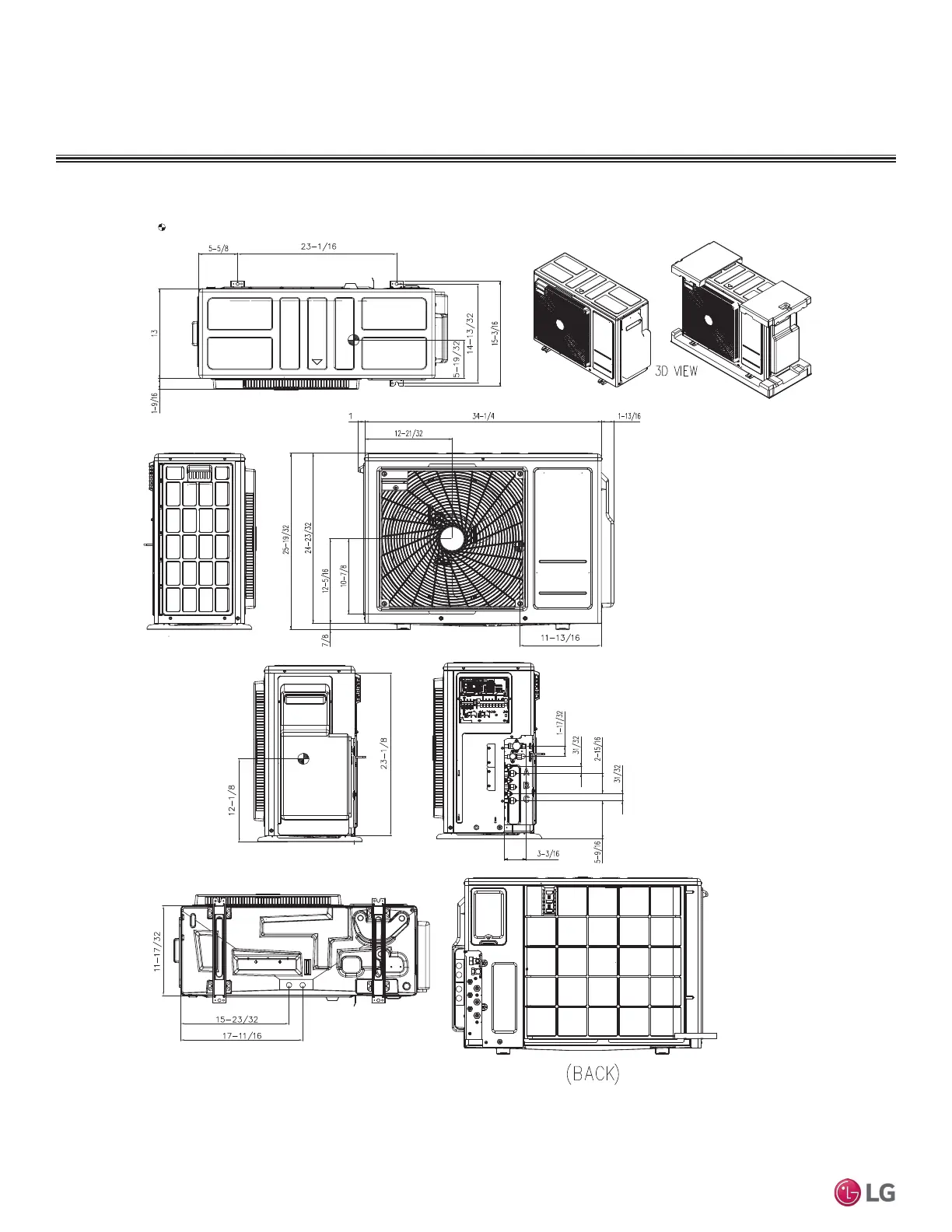

Figure 6: LMU180HV and LMU240HV External Dimensions.
Unit: Inch
Gravity point
1. Unit must be installed in compliance with the installation manual.
2. Unit must be grounded in accordance with the local or state regulations and applicable national codes.
3.
All field-supplied electrical components and materials must
comply with the local, state, and national codes.
4. Electrical characteristics must be considered for electrical work and design. The capacity of power cable and circuit
breaker for the outdoor unit must follow local, state, national, and manufacturer requirements.
Notes:
5. For LMU180HV Unit, ports A and B are available.
6. For LMU240HV Unit, ports A, B, and C are available.
