24 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Wiring Diagram

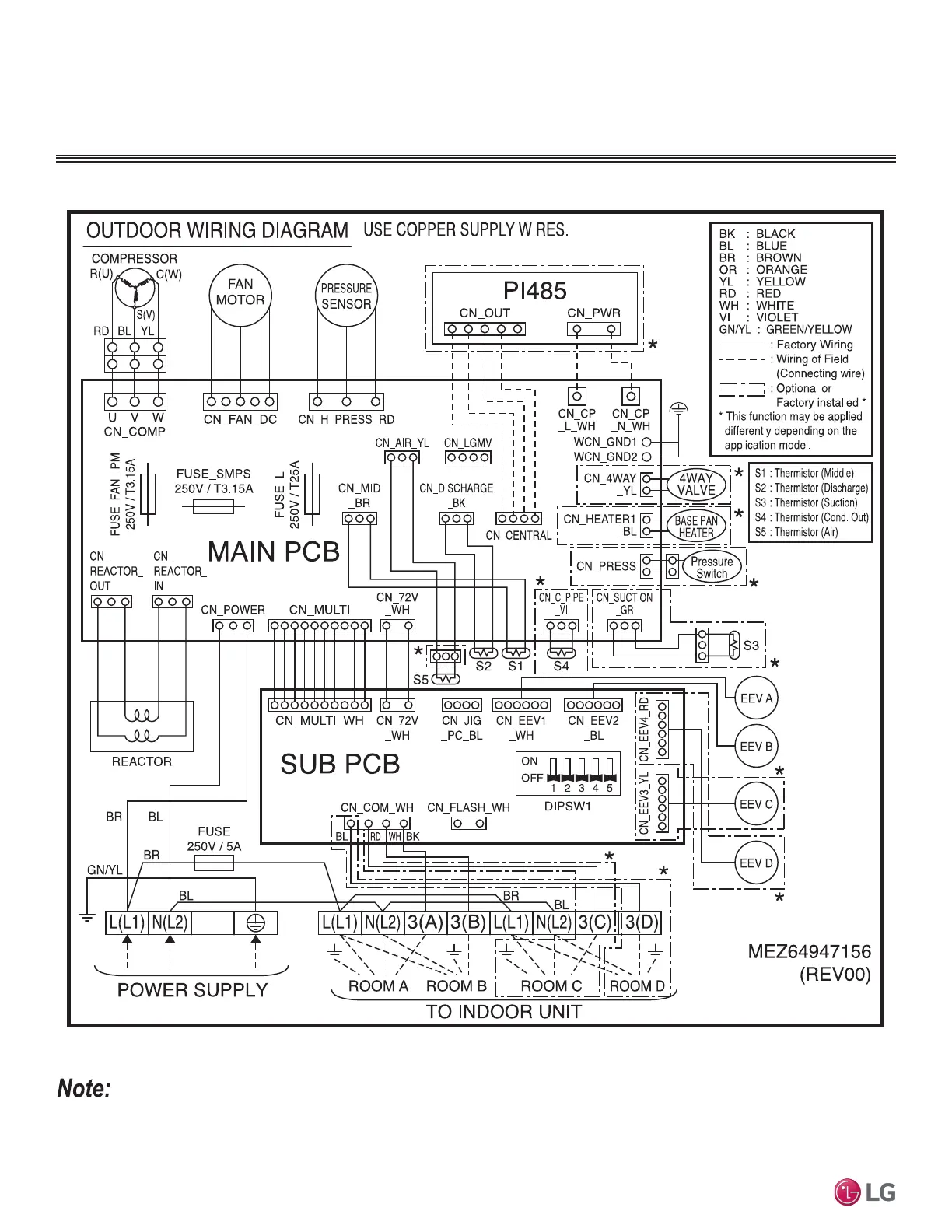

Figure 10: LMU180HV and LMU240HV Wiring Diagram.
LMU180HV can support no more than two indoor units; LMU240HV can support two or three indoor units. Ensure the communication cable / power
wiring from the outdoor unit to the indoor units is installed correctly for the system and the chosen application.
01-2021
