Multi F Outdoor Unit Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
&HQWHURI*UDYLW\&RUQHU:HLJKWV

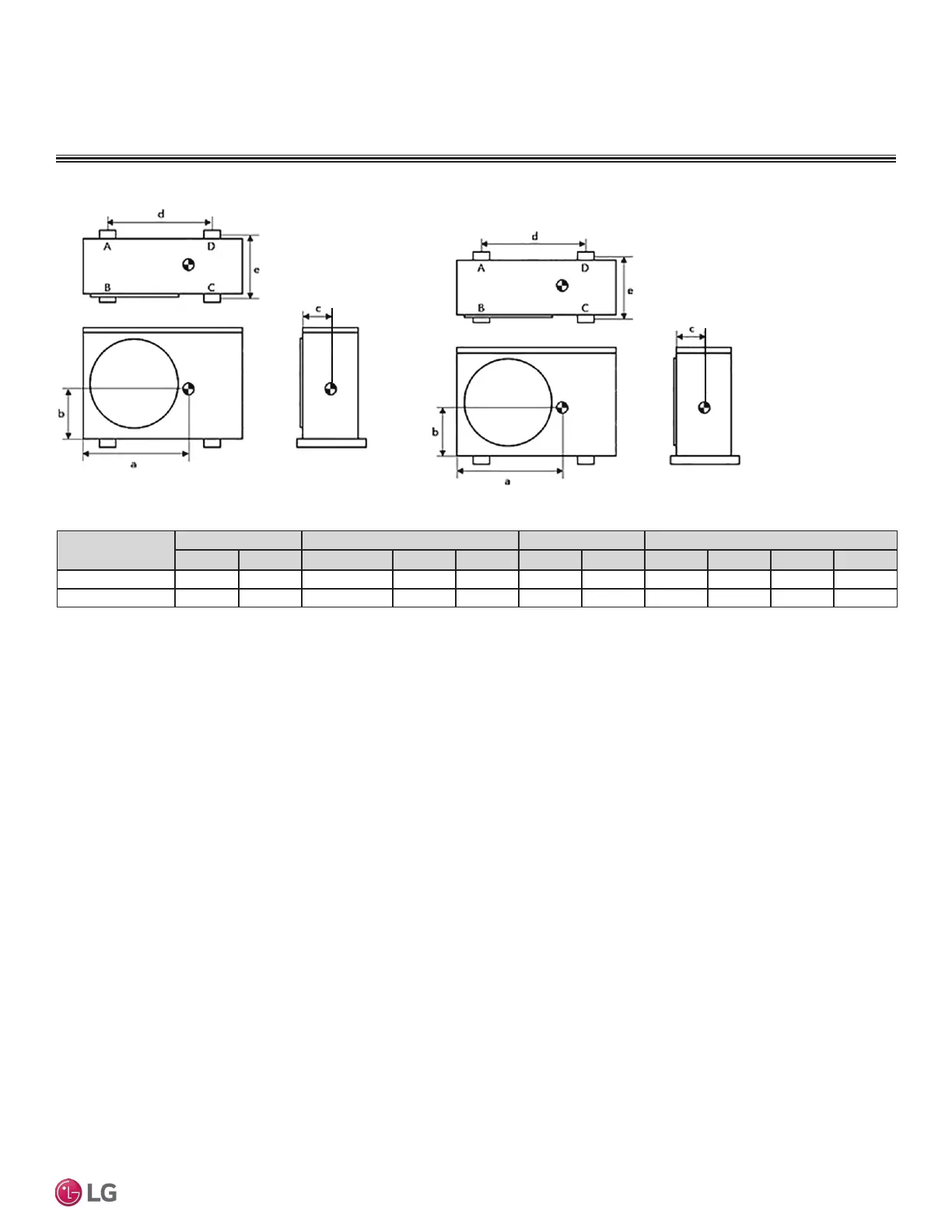

Figure 9: LMU180HV and LMU240HV Center of Gravity and Corner Weight Diagram.
Table 16: LMU180HV and LMU240HV Center of Gravity and Corner Weights.
Model No.
Weight (lb.) Center of Gravity (in.) Leg (in.) Corner Weight (lb.)
Shipping Net a b c d e A B C D
LMU180HV 109.8 101.0 22 7/16 11 3/16 5 19/32 23 1/16 14 13/32 13.3 21.0 40.8 25.9
LMU240HV 110.2 101.4 22 7/16 11 3/16 5 19/32 23 1/16 14 13/32 13.4 21.1 41.0 26.0
