26 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F

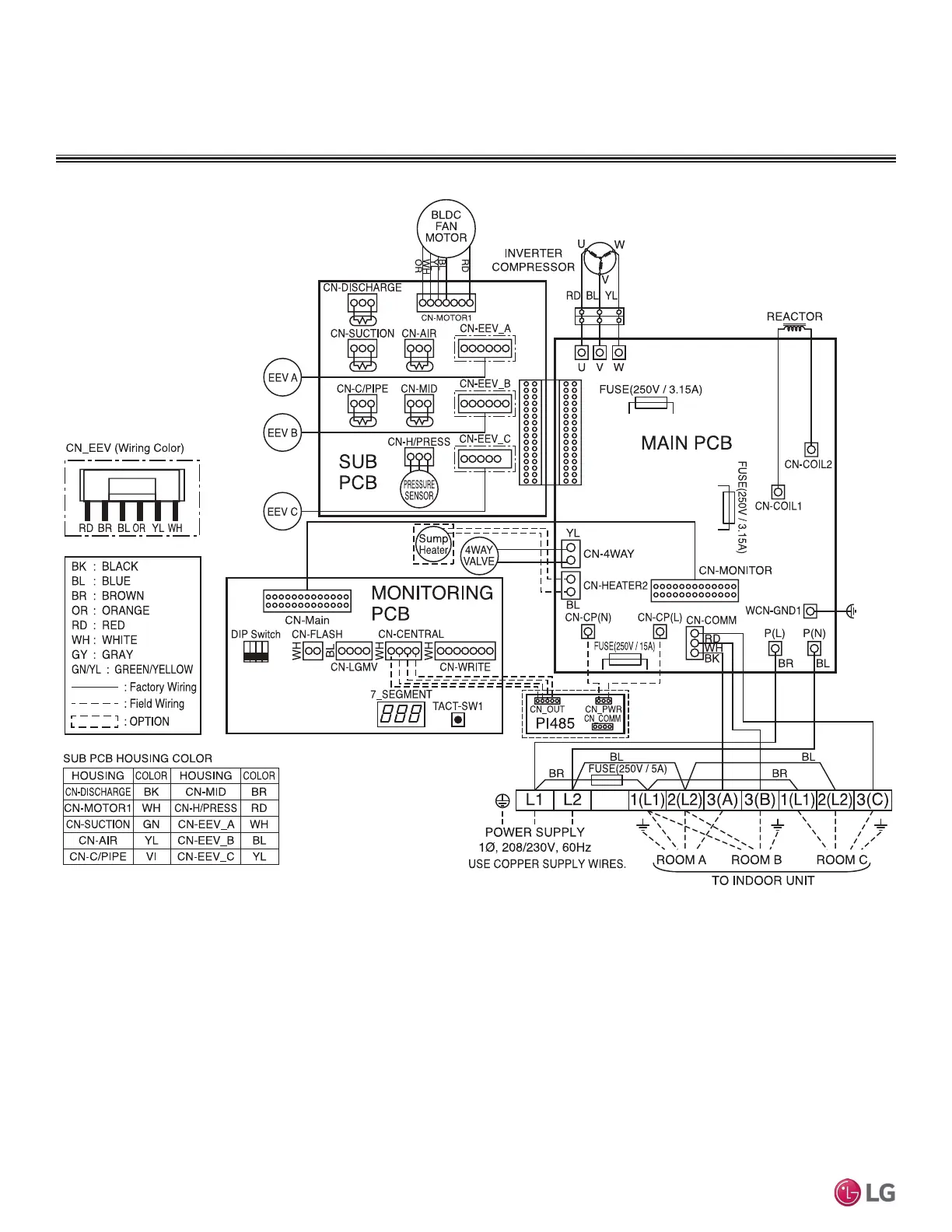

Figure 12: LMU24CHV Wiring Diagram.
MULTI F OUTDOOR UNIT
Wiring Diagram
