Connecting the Display
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

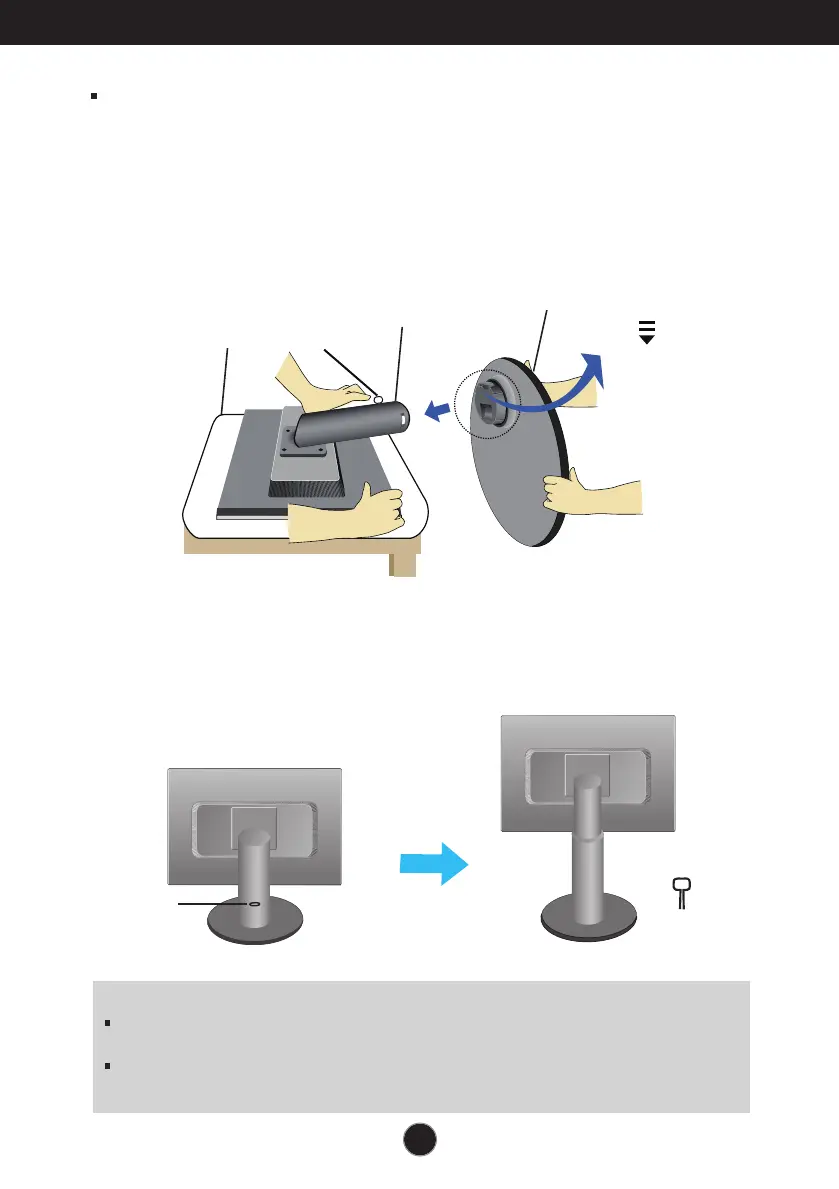

Connecting the stand
1. Place the monitor with its front facing downward on a cushion or soft cloth.
2. Assemble the Stand Base into the Stand Body.
Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.
3. Make the monitor stand , then pull out the Stop Pin.
Stand Base
FRONT
Stand Body
Stop PinSide
Stop Pin
Stop Pin
pull out the stop pin
The tape and locking pin may only be removed from those monitors
equipped with a standing base when the base is pulled up. Otherwise,
you may be injured by the protruding sections of the stand.
Warning:
To Next Page
