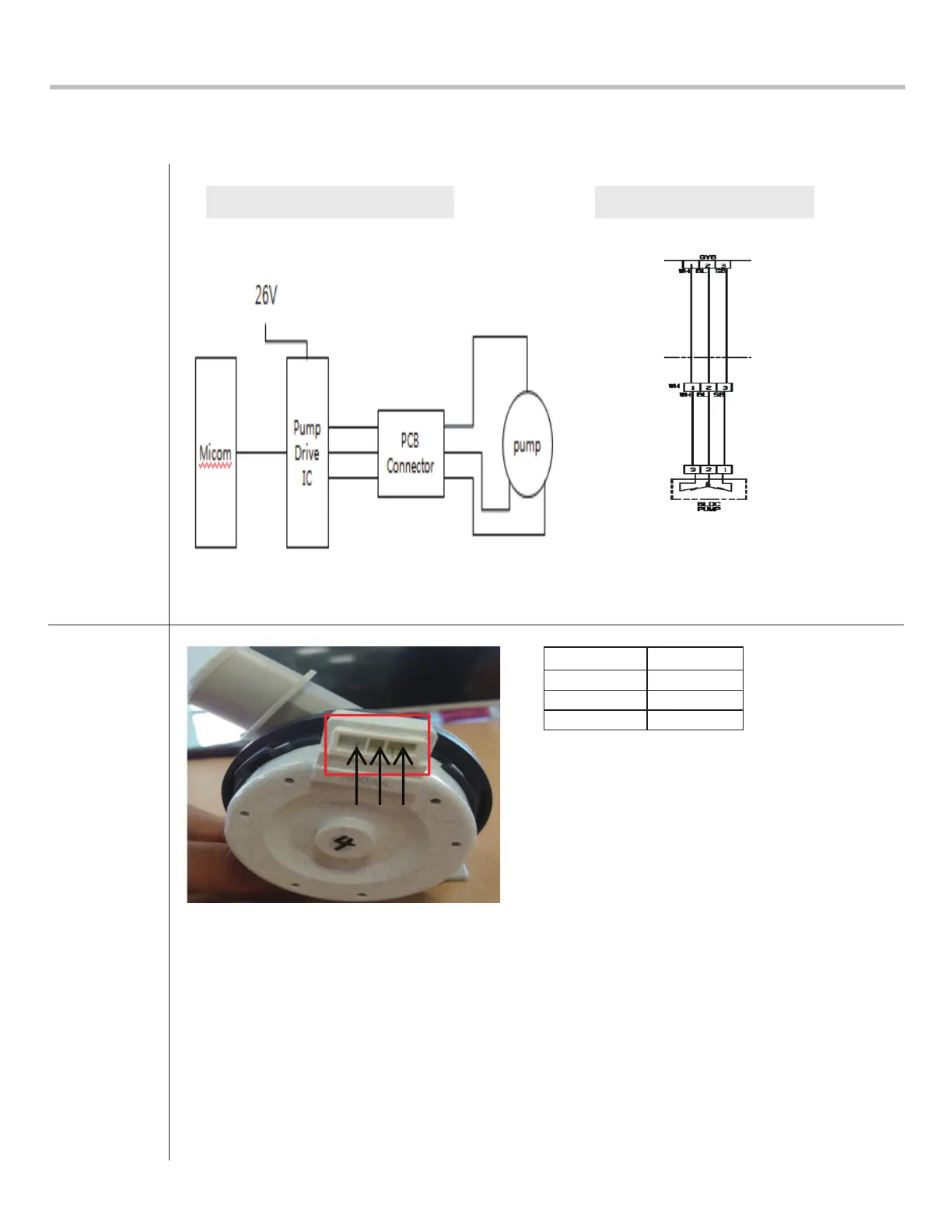

5-4. PUMP MOTOR ASSEMBLY
Wiring
diagram
Test
points
and
Result
Circuit in the MAIN PCB Wiring Diagram
(1)(2)(3)
* Each circuits of loads in wiring diagram are all same.
Test Points Result
(1) to (2) 1.5 – 4Ω
(2) to (3) 1.5 – 4Ω
(3) to (1) 1.5 – 4Ω
