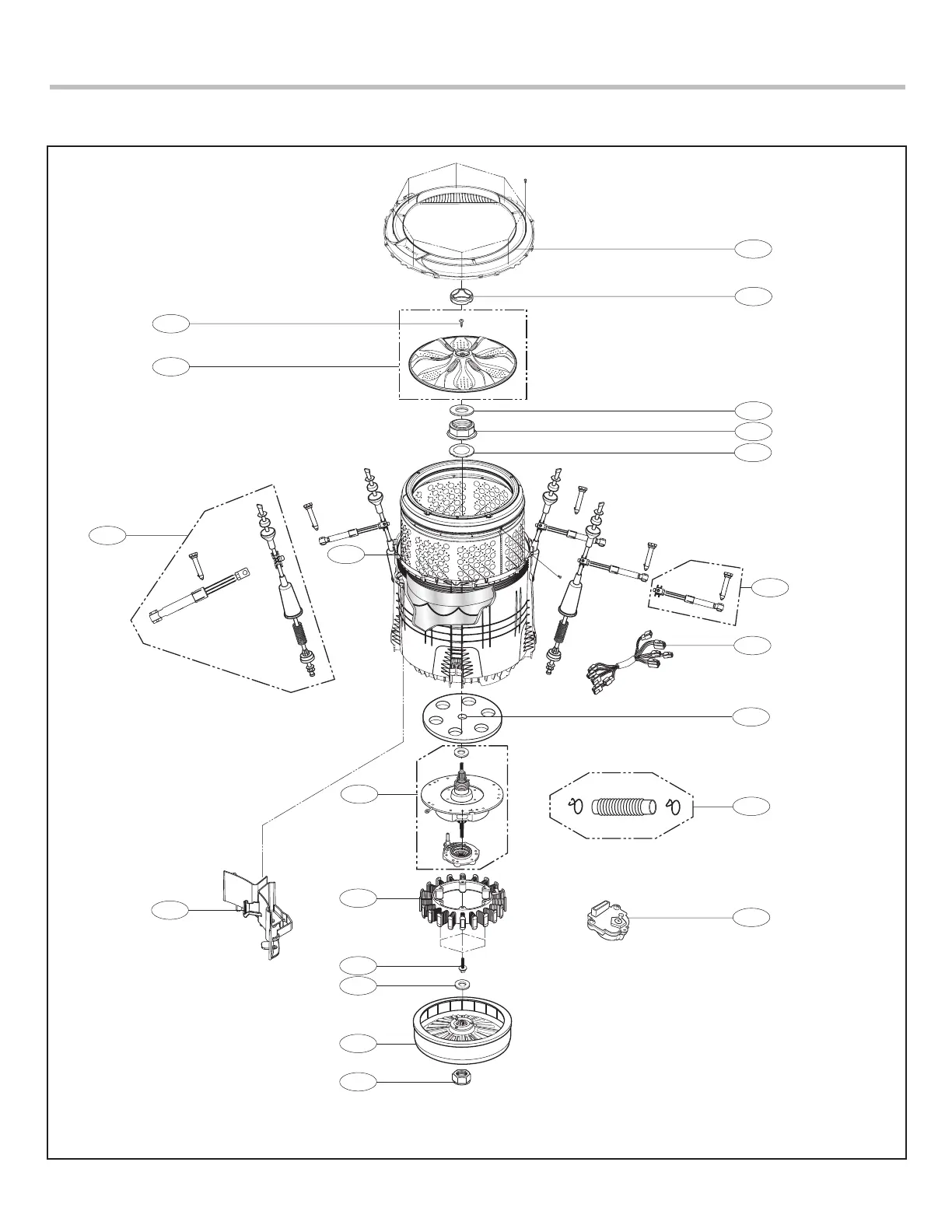

6-3. EXPLODED VIEW OF TUB ASSEMBLY
50
K064
K000
K021
K020
K100
K250
K060
NATURAL
K200
K210
K201
K310
K300
K170
K290
K230
K050
K140
K040
K012
K030
K104
*When replacing the Bellows Assembly (K140),
install new clamps (4861FR3068E) at both ends.
* If replacing the Clutch Coupling (K170), check for damage on Washer (K310) and replace if needed.
To Next Page
