2 - INSTALLATION

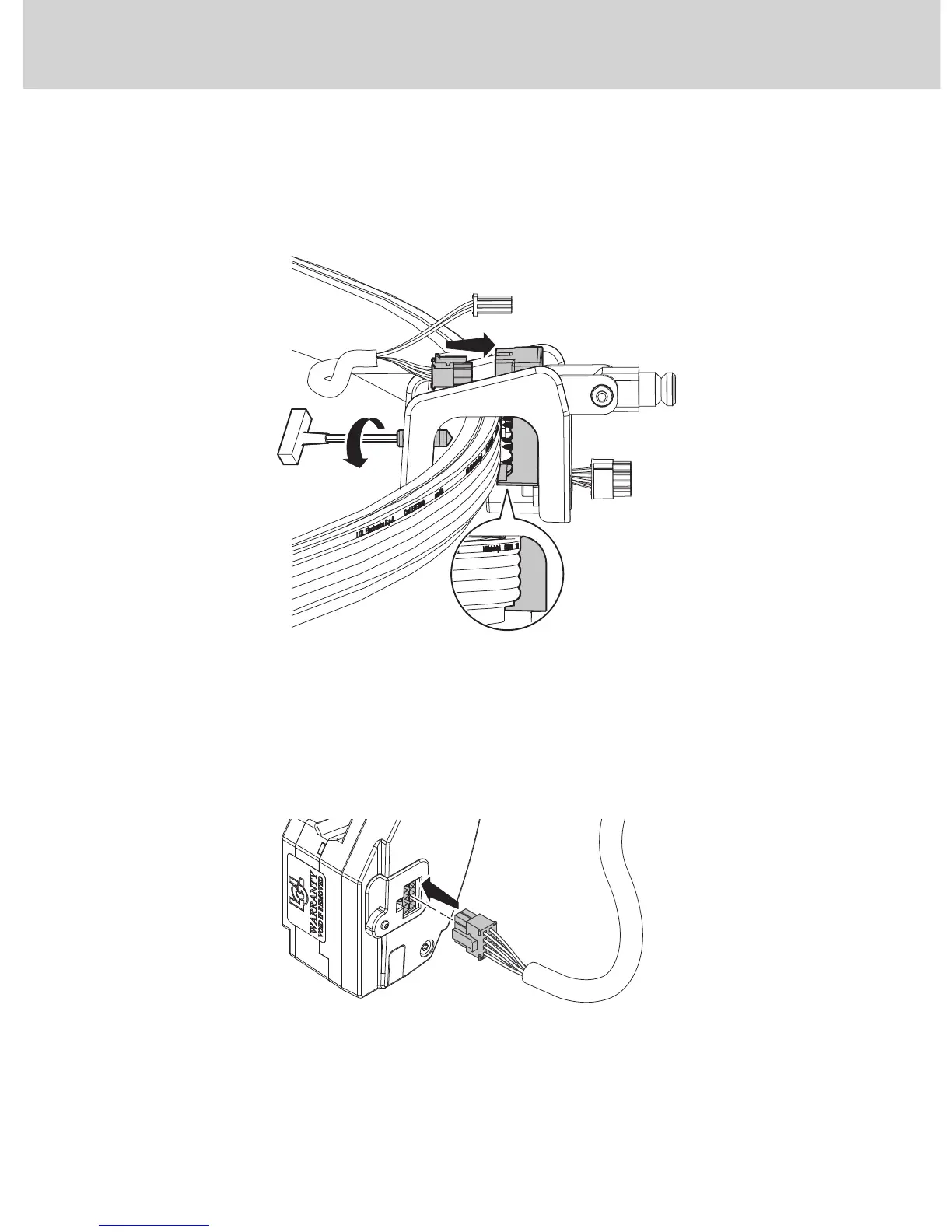

2. Connect the cable connector to clamp connector (A).
3. Place the clamp in the desired position; close the clamp grab screw until
the strip is punctured (B), taking care to have the connector profile match
that of the plate (C).
4. Connect the (A1N1SA792-0200) cable connector to the related
connector found on the accumulator and fasten it by tightening on the
accumulator the screw that is in the cable protection housing (D).
