LGL Electronics SPIN1 - Page 17

17
2 - INSTALLATION

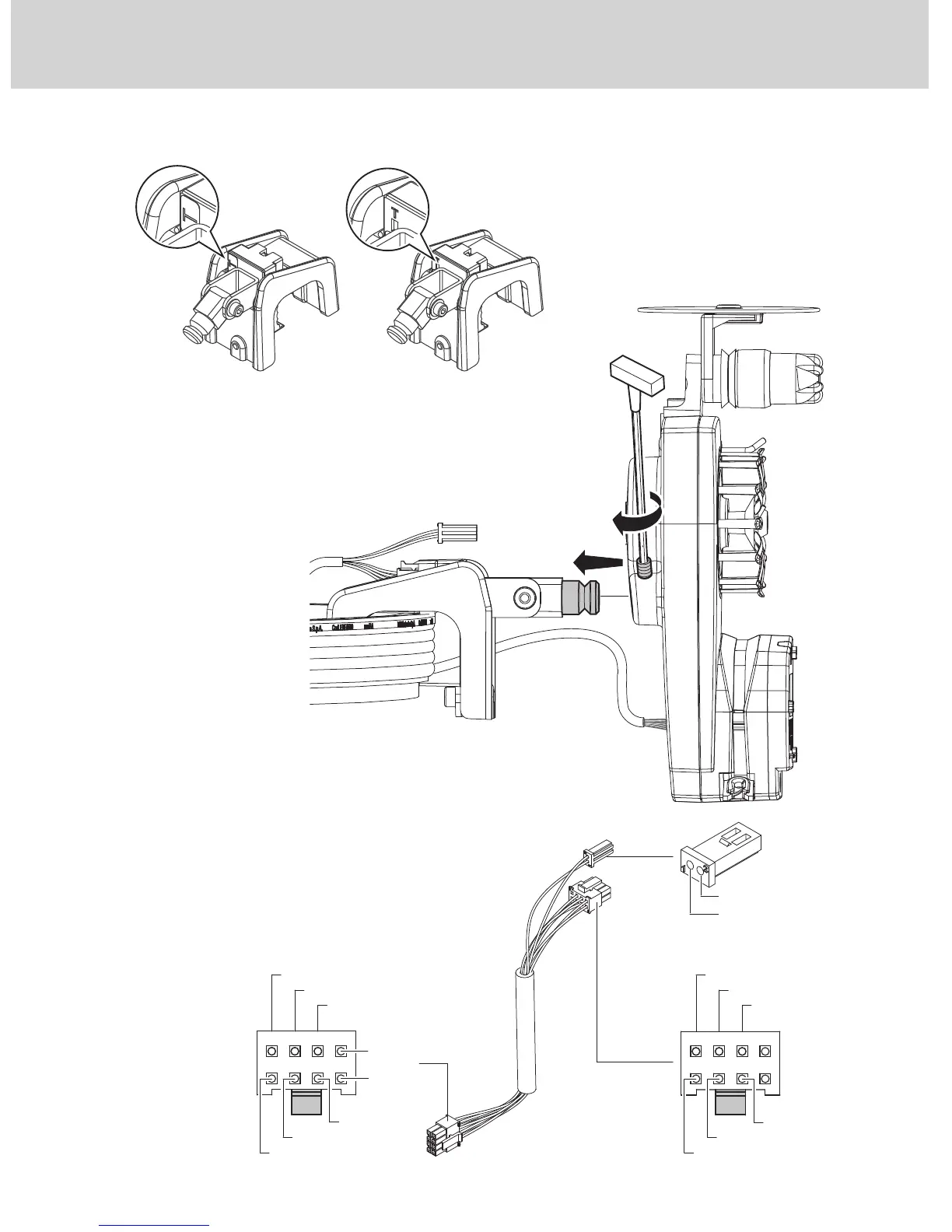

5. Fix the accumulator to the clamp pin with the related screw (E).
DEC
INC
CANL / LSB
STOP
+Vdc POWER
CANH / LSH
ID / ADDRESS
GND
1 2 3 4
5678
CANL / LSB
STOP
+Vdc POWER
CANH / LSH
ID / ADDRESS
GND
1 2 3 4
5678
INC
DEC
E
DEC
INC
A1C2SA072-T A1C2SA072
Place the terminated clamp on the first and the last SPIN in the
row. On the others, use the unterminated clamp. Do not use
more than two terminated clamps along the same line, as
communication problems might result.
Unterminated
clamp
Terminated
clamp
