18

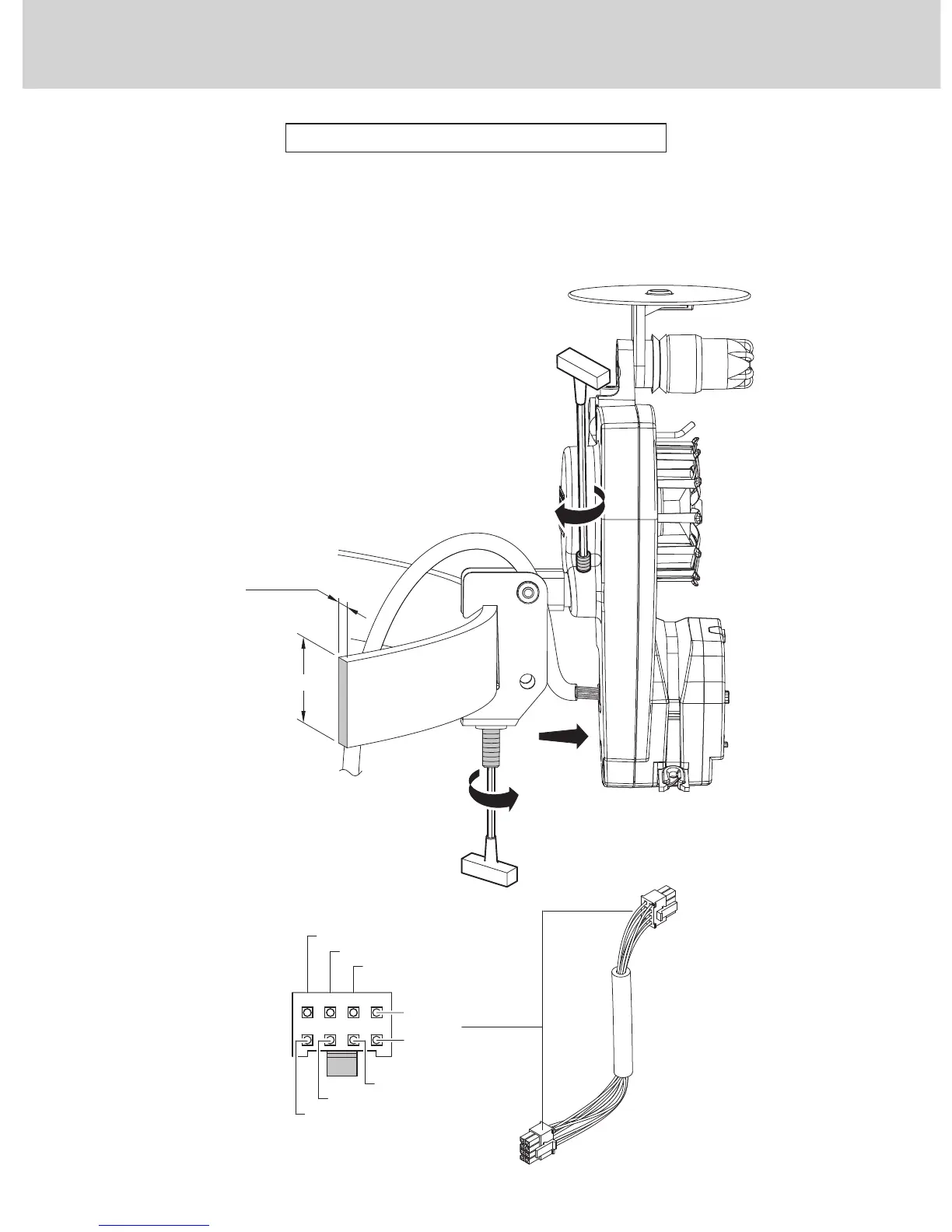

2 - INSTALLATION
SINGLE-CABLE VERSION
1. Fix the clamp (A1C2SA060) with the related screw in the desired position
on the support ring.
2. Connect the single-cable (A1N1SA791) into the accumulator.
3. Fix the accumulator to the clamp.
N.B.: The support ring shall
be sized as follows:
- height ranging between 15 and 30 mm
- max. thickness 5 mm
max 5 mm
3
1
2
15÷30 mm
CANL / LSB
STOP
+Vdc POWER
CANH / LSH
ID / ADDRESS
GND
1 2 3 4
5678
INC
DEC
