3 - START-UP AND THREADING
In cases when the offset calibration procedure is not successful, the led will
blink and the message “ERR” will be displayed instead of “OK”.
In this case, ensure the yarn does not come into contact with the cell and that
there is no residual dirt left around the cell ceramic, then try and repeat the
offset procedure. If the offset calibration is not successful after many
attempts, have the device serviced by LGL Customer Service.
N.b.: For a detailed description of the “Offset menu, please read chapter 4.2.11.
3.2 YARN THREADING
WARNING: Before threading the accumulator, ensure the latter
is at a steady temperature. We suggest threading 15 minutes
after power-on.
Thread the accumulator as follows:

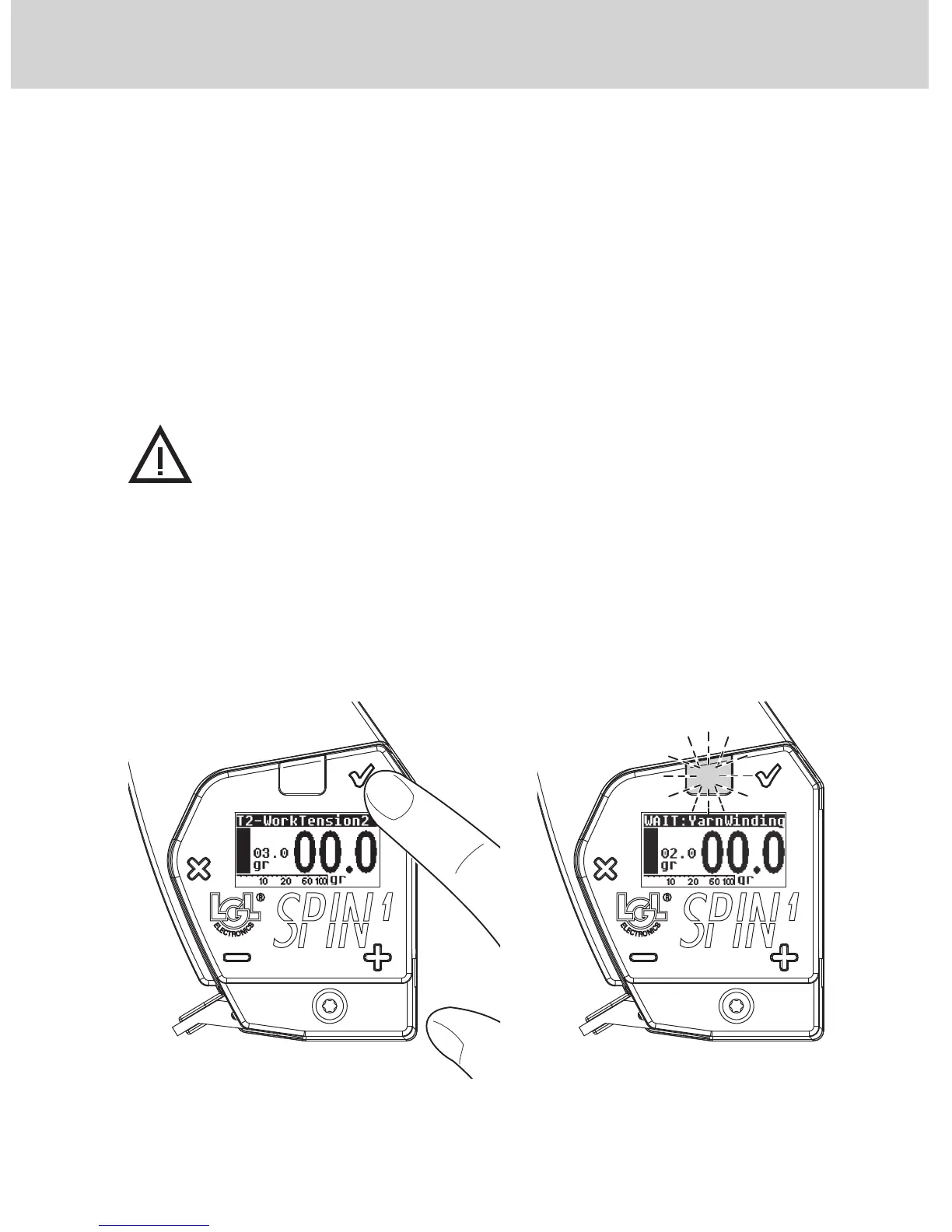

• Press the “X” or “√” button for 1 second (depending on the type of reset you
wish to use). The red light will go on on the accumulator and the message
“WAIT:YarnWinding” will appear on the display unit.
