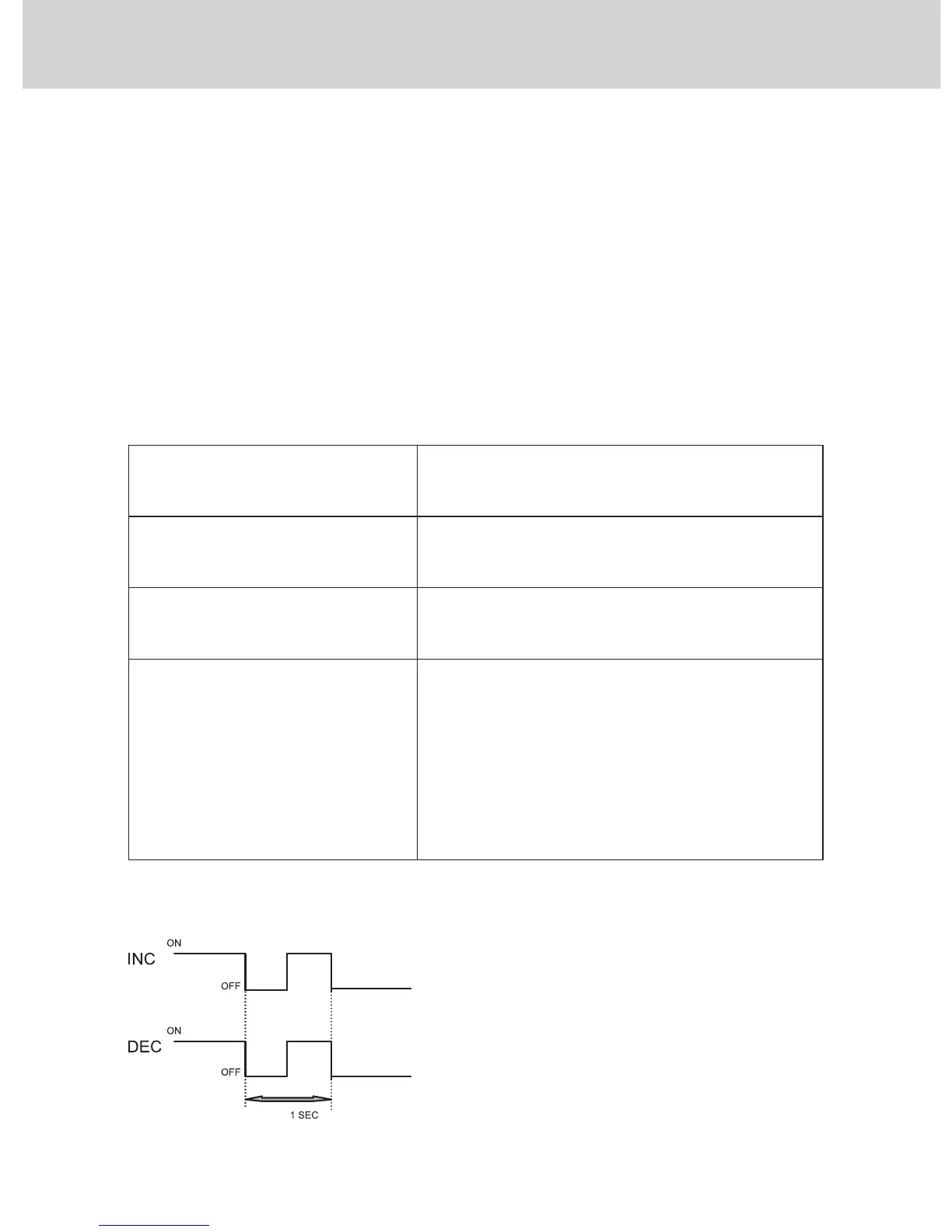

SWITCHES 7 & 8: POSITION OF THE “TR-Tension Relax” FUNCTION
It defines the work position (dictated by the state of the INC/DEC signals)
that has the relax function enabled, i.e. ready to be actuated.
N.B.:
− This option does not set the operating condition FOR the function,
but only the time when it is ready to be actuated.
− Remember that the position of T1 and T2 as to the INC/DEC signals
depends on the way the “AO-0 - INC/DEC SIGNAL POLARITY”
option is set.
PROCEDURE:
4 - SETTING THE OPERATING PARAMETERS
AO-7 and 8
- POSITION OF FUNCTION
“TR-Tension Relax” = 0-0
ENABLED IN T1 AND T2
The relaxation function is enabled in both work
positions T1 and T2.
AO-7 and 8
- POSITION OF FUNCTION
“TR-Tension Relax” = 0-1
ENABLED IN T1
The relaxation function is only enabled in T1, not
in T2.
AO-7 and 8
- POSITION OF FUNCTION
“TR-Tension Relax” = 1-0
ENABLED IN T2
The relaxation function is only enabled in T2, not
in T1.
AO-7 and 8
- POSITION OF FUNCTION
“TR-Tension Relax” = 1-1
ENABLED VIA A DEDICATED PROCEDURE
The relaxation function is only enabled in following
the actuation of the dedicated timed PROCEDURE.
The sequence consists in setting both the INC and
DEC signals to OFF, then to ON and finally back to
OFF, within a time not greater than 1 second.
N.b.: Please bear in mind that if the “AO-0-
INC/DEC SIGNAL POLARITY” option is set to 1,
the sequence logic is reversed.
