16

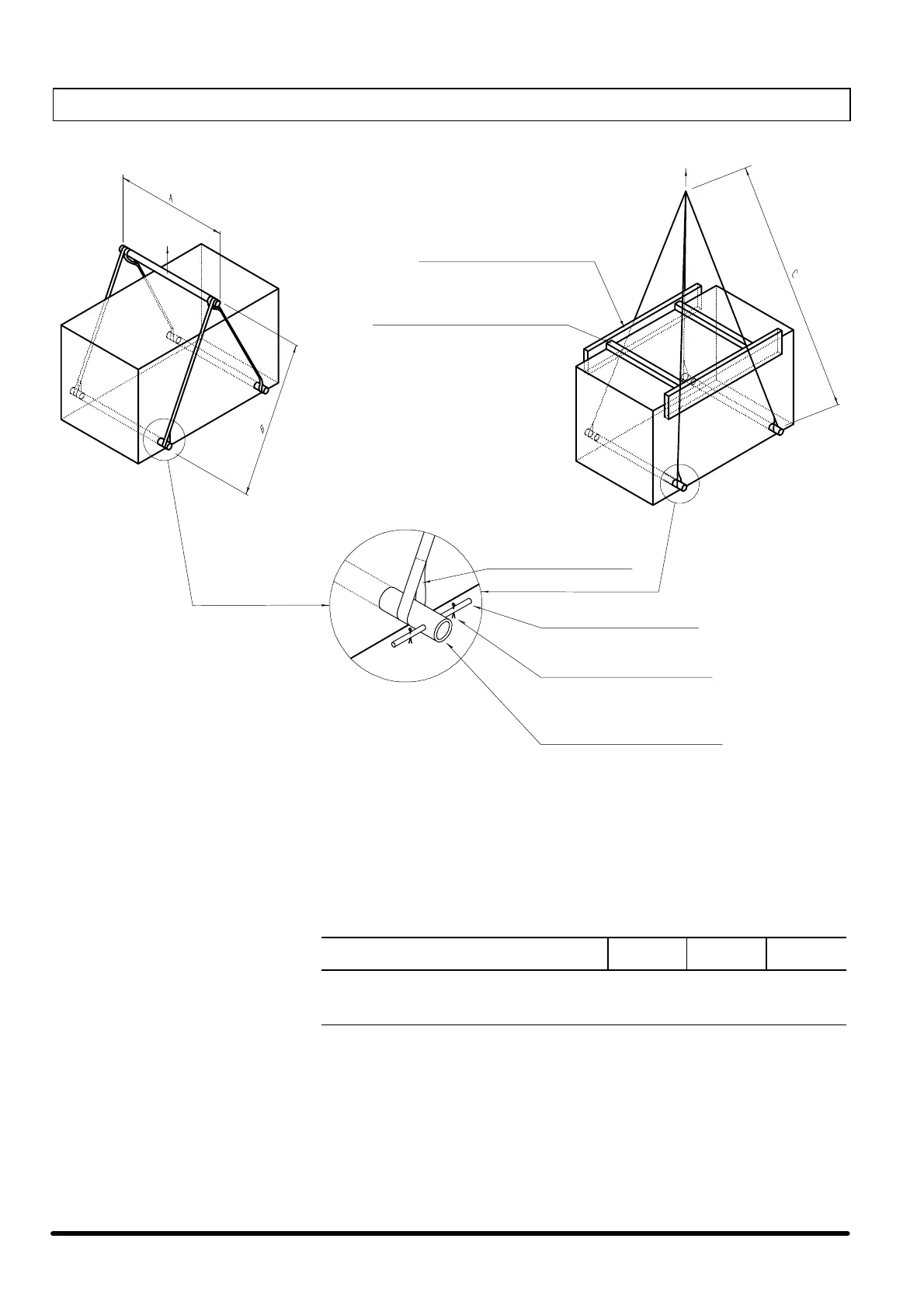

Fig. 2 --- Lifting instructions with tubes
LIFTING TUBE
(NOT SUPPLIED)
(BASE HOLES Ø56)
SPLIT PIN
(NOT SUPPLIED)
BLOCKING PEG
(NOT SUPPLIED)
BELT OR CHORD
PROTECTION PLANK
RIGID STRUTS
(POSSIBILY STEEL)
N.B: Place the lifting tubes in the holes in the base indicated by the words “LIFT HERE”. Lock the ends of the tubes in position with
the locking pins and split pins as shown above. The capacity of the lifting gear must be adequate to lift the load in question.
Check the weight of the unit, the capacity of the lifting gear and ropes and the condition and suitability of the aforementioned
equipment. Lift the unit with a speed suitable for the load to be moved, so as not to damage the structure.
Lifting
Models
“A”
(m)
“B”
(m)
“C”
(m)
CBH / CLH 017 ---020 ---023 ---025 ---028 ---030 ---032
CQH 017 --- 020 --- 023 --- 025 --- 028 --- 030
SBH / SL H 017 ---020 ---023 ---025 ---028 ---030 ---032
SQH 017 --- 020 --- 023 --- 025 --- 028 --- 030
1.8 ' 5.0 ' 9.0
