Operation with Advanced Microprocessor Controls
3
2.0 OPERATION WITH ADVANCED MICROPROCESSOR CONTROLS
The advanced microprocessor (A) control for your Liebert Challenger 3000 unit features an easy-to-
use menu driven LCD display. The menus, control features, and circuit board details are described in
this section. For more control details, refer to 4.0 - System Performance with Advanced Micro-
processor Controls, and for more alarm information, refer to 5.0 - Alarm Descriptions.
2.1 Basics
Control keys include ON/OFF, Menu/ESCape, Enter, Increase (UP) arrow, and Decrease (DOWN)
arrow. Refer to Figure 1. These keys are used to move through the menus as prompted on the LCD
display (refer to Figure 2).
To turn the unit ON, press the ON/OFF key after power is applied. To turn the unit OFF, press the
ON/OFF key before power is disconnected.
Active alarms are displayed on the LCD screen. Alarms are also annunciated by an audible beeper. To
silence an alarm, press the ENTER key as prompted on the display. The unit stores the 10 most
recent alarms for review.
Setpoints, DIP switch settings, and other selections were made on your unit before testing at the fac-
tory. Setpoints were chosen based on typical operating experience. Other selections were made based
on options included with your unit. Make adjustments to the factory default selections ONLY if they
do not meet your specifications. When entering setpoints, time delays, etc., the allowable ranges are
displayed and may require a password, if enabled.

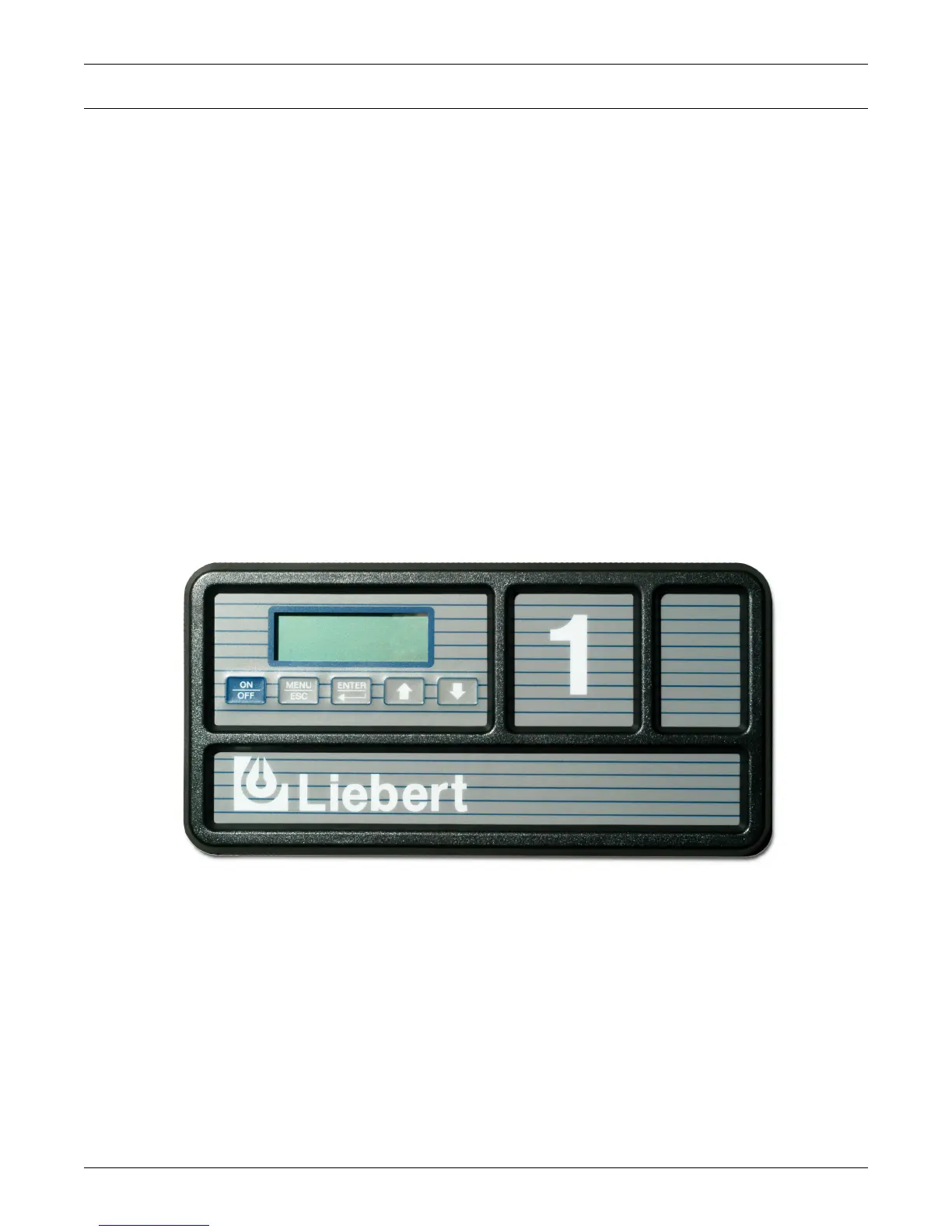

Figure 1 Advanced microprocessor control panel
