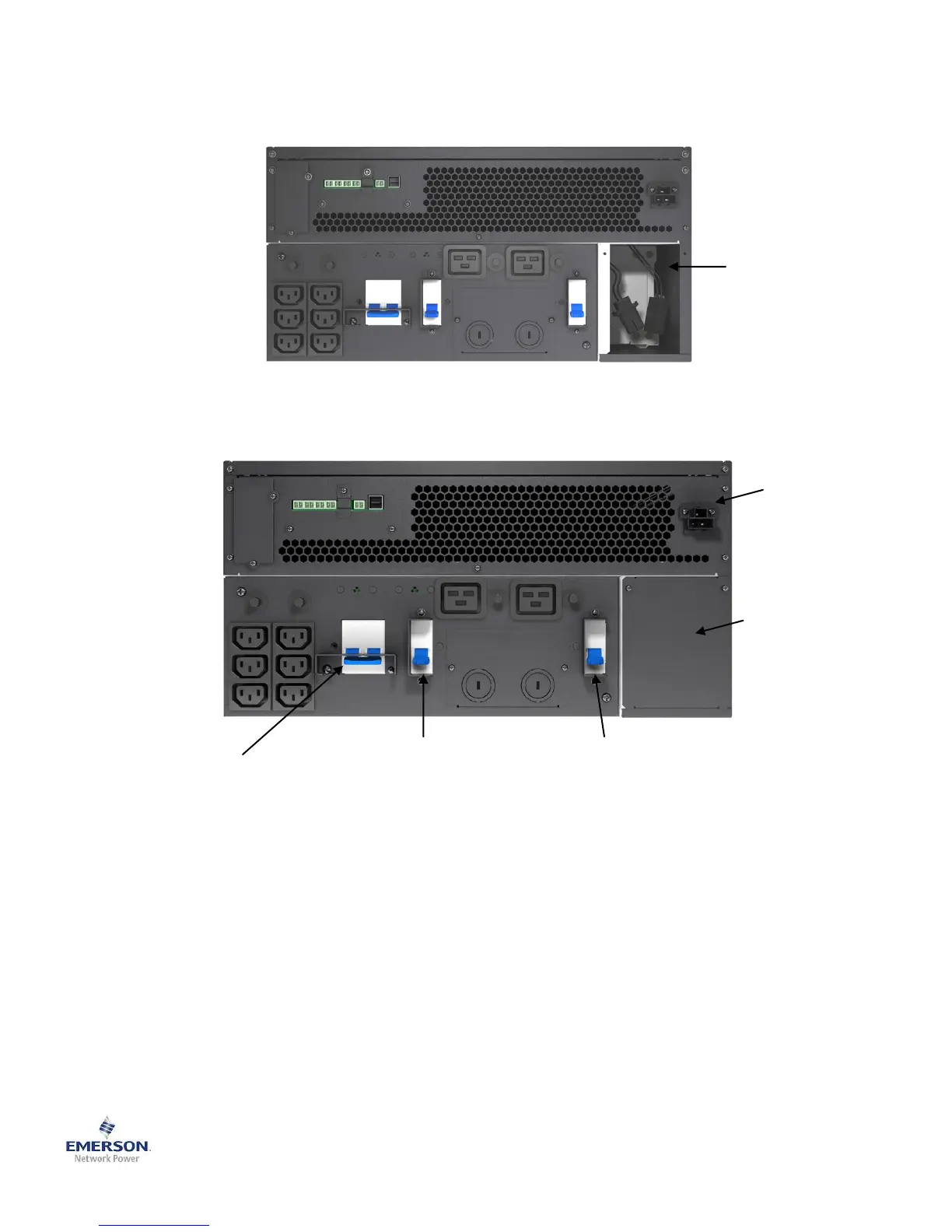

Liebert GXT3 RT230 - UPS Component Identification; Rear Panel Components

2 SLI-23185QS6_Rev0_09-2012
The Liebert
®
GXT3
™
5000-6000 VA RT230 models are compatible with IT Power Systems. To configure the unit for
operation on the IT Power system, remove the 2 screws securing the cover plate in the lower right hand side on the rear
of the unit and disconnect the jumper, then replace the cover and secure with the screws.
Input Circuit Breaker
Maintenance
Bypass Breaker
Output Circuit Breaker
Liebert GXT3 UPS
GXT3-5000RT230
and
GXT3-6000RT230
IT Power System
Connector
(with cover removed)
GXT3-5000RT230
and
GXT3-6000RT230
IT Power System
Access Cover
External Battery
Cabinet Connector
for
GXT3-240VBATTCE
