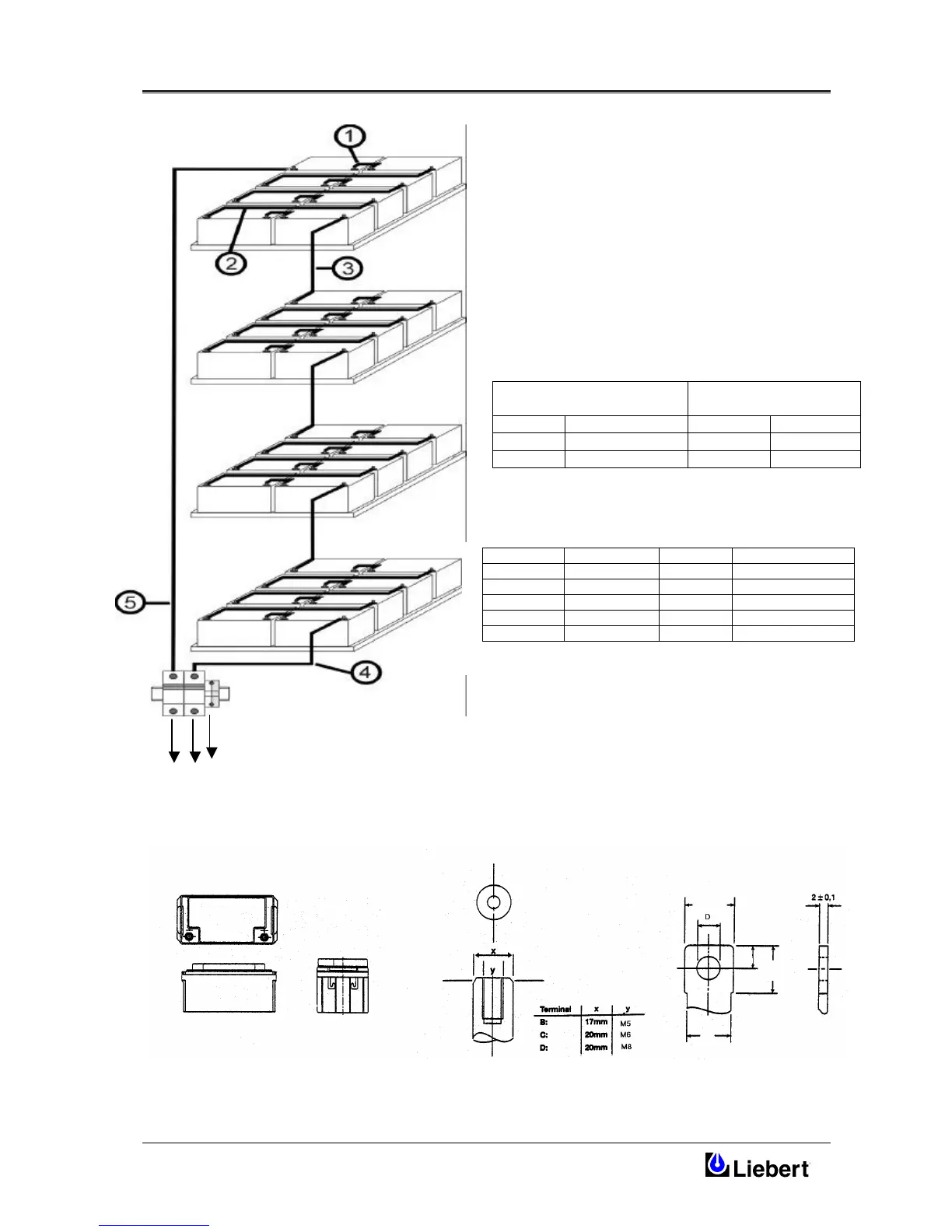

7.10 Batteries for external Battery Cabinet
Battery 65Ah 12V
Dimensions (mm) : L=350 ,W= 166 , H=174 (over Terminals), Weight=22.8 kg , Terminal D=7mm or M6
Battery 38 Ah 12V
Dimensions (mm) : L=197 , W=165, H=170 (over Terminals), Weight=13.9 kg , Terminal D=5.5mm or M5
To Terminal
blocks UPS
Position
Length Quantity Type
1 150 mm 16 Connection 1
2 800mm 12 Connection 2
3 1400mm 3 Connection 3
4 900mm 1 Positive
5 1500mm 1 Negative
Battery Cabinet
Connections
UPS Tagblock
Connections
F1 Negative 8 and 9
Negative
F2 Positive 6 and 7
Positive
GND Ground 1 or 18 Ground
F1 F2
G
