Dimensional Drawings
8--2
Liebert HPS---PD--- 272965---20.11.2009

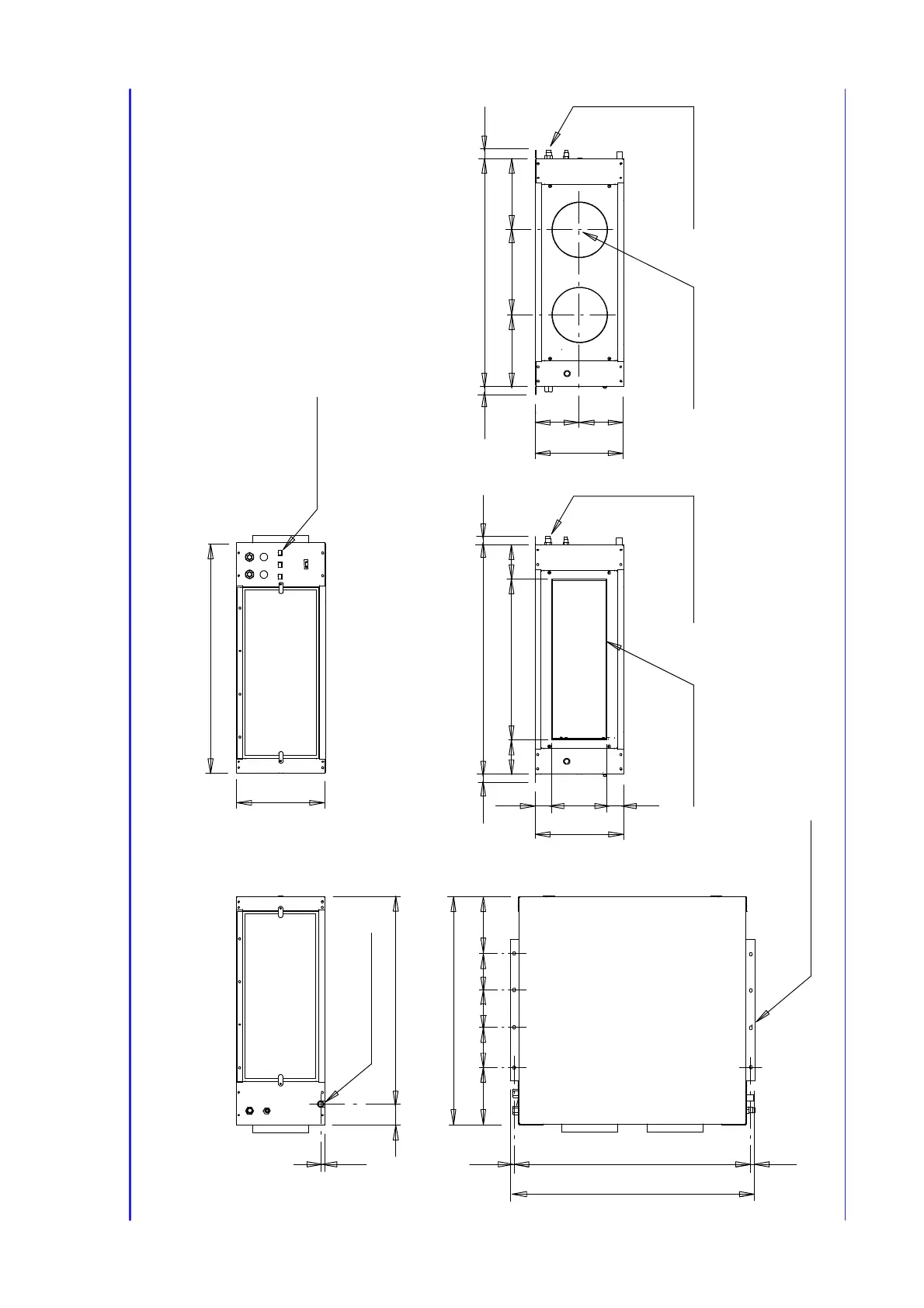

F i g . 5 --- E v a p o r a t i n g u n i t HPSE 08--10--12--14 (version with freecooling)
Condensate drain
226,5 150
150 150
13,593313,5
903
276,5 350 276,5
375
187,5
28.528.5 903
375
TOP VIEW
LEFT SIDE VIEW
RIGHT SIDE VIEW
N. 8 slots 9x12---
unit fixing
N. 2 collars
ø250 H=35 mm
Refrigerant connection
Electrical
connection
903
81588
14.5
150,7 601,6 150,7
61,7 251,6 61,7
375
903 28,528,5
Refrigerant connection
Collar
250x600 H=35 mm
960
187,5
226,5
FRONTVIEW(RECTANGULARDUCTVERSION)
FRONT VIEW (CIRCULAR DUCTS VERSION)
