Liebert HPSE User Manual

2
Model Description and Selection
2--1
Liebert HPS---PD--- 272965---20.11.2009
3
6
54
10987
Cooling Capacity “kW”
(Nominal Cooling C apacity)
1 2

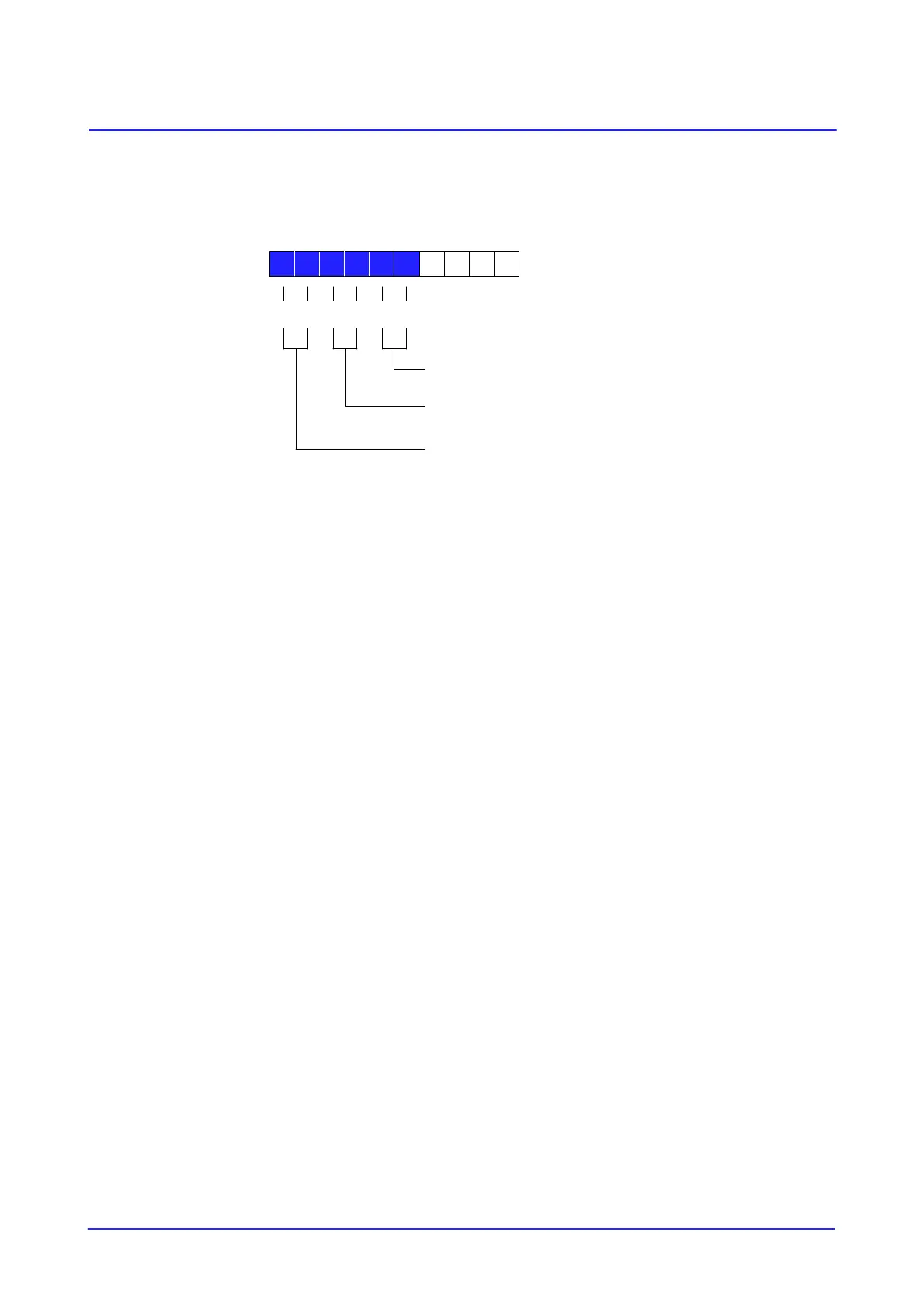

Model Nomenclature / Digit Numbers
_______
HPSE06
Split Evaporator Section
(Indoor Unit)
High Performance Unit
CEILING MOUNTED INDOOR UNIT
HPSE 06 --- 14
BASE UNIT EVA PORATOR SECTION
Split air cooled indoor unit
Digits 1, 2, 3, 4, 5, 6
D RAL7035 “bright grey” cabinet
Digit 7 --- Emergency cooling (EFC)
0 = No emergency cooling
1 = Emergency cooling through 48Vdc fan
(*)
2 = Kit for connection to external inverter
(*)
(*) Option possible only if digit 9 = 1, 2, 3, or 4.
Digit 8 --- Main power supply and electric heating
(*)
0 = 230V / 1Ph / 50Hz (no electric heating) --- HPS 06
400V / 3Ph / 50Hz (no electric heating) --- HPS 08---14
1 = 230V / 1Ph / 50Hz (with electric heating) --- HPS 06
400V / 3Ph / 50Hz (with electric heating) --- HPS 08---14
(*) Power supply must be the same as per digit 5 of HPSC unit.
Digit 9 --- Fresh air freecooling (FC)
0 = No freecooling
1 = FC circular holes --- modulating damper
2 = FC rectangular holes --- modulating damper
3 = FC circular holes --- fast return damper
4 = FC rectangular holes --- fast return damper
Digit 10 ---Microprocessor control
1 = Control (no display)
Plug for display available on indoor unit
2 = Control + remote display
Remote wallmount display
3 = Connectivity
(*)
control (no display)
Available plugs: LAN, remote display and g raphic display
4 = Connectivity
(*)
control + remote display
Available plugs: LAN, remote display and g raphic display
5 = Connectivity
(*)
control + graphic display and language Set L1
Available plugs: LAN, remote display and g raphic display
6 = Connectivity
(*)
control + graphic display and language Set L2
Available plugs: LAN, remote display and g raphic display
(*) To create LAN choose the Connectivity control and select the optional LAN
cable.
LanguagesetL1:GB,F,I,D,E,P,NL,S.
LanguagesetL2:GB,PL,CZ,H,RUS,TK.
D i g i t 1 1 --- A i r f i l t e r
0 =G3
1 =G4
2 = G3 (indoor air) + clogged filter pressure switch (indoor air)
3 = G4 (indoor air) + clogged filter pressure switch (indoor air)
D i g i t 1 2 --- P a c k i n g
0 = Cardboard and pallet
C = Cardboard and wooden crate
S =Seaworthy
D i g i t 1 3 --- F r e e
0 =Freeoptionalways
Digit 14 ---Evaporator coil
0 = Standard aluminium evaporator fins
1 = Epoxy coated evaporator fins
D i g i t 1 5 --- F r e e
0 =Freeoptionalways
D i g i t 1 6 --- F r e e
0 =Freeoptionalways
Digit 17 ---Special requirements
0 =None
X =Special
