Model Description and Selection
2--2
Liebert HPS---PD--- 272965---20.11.2009

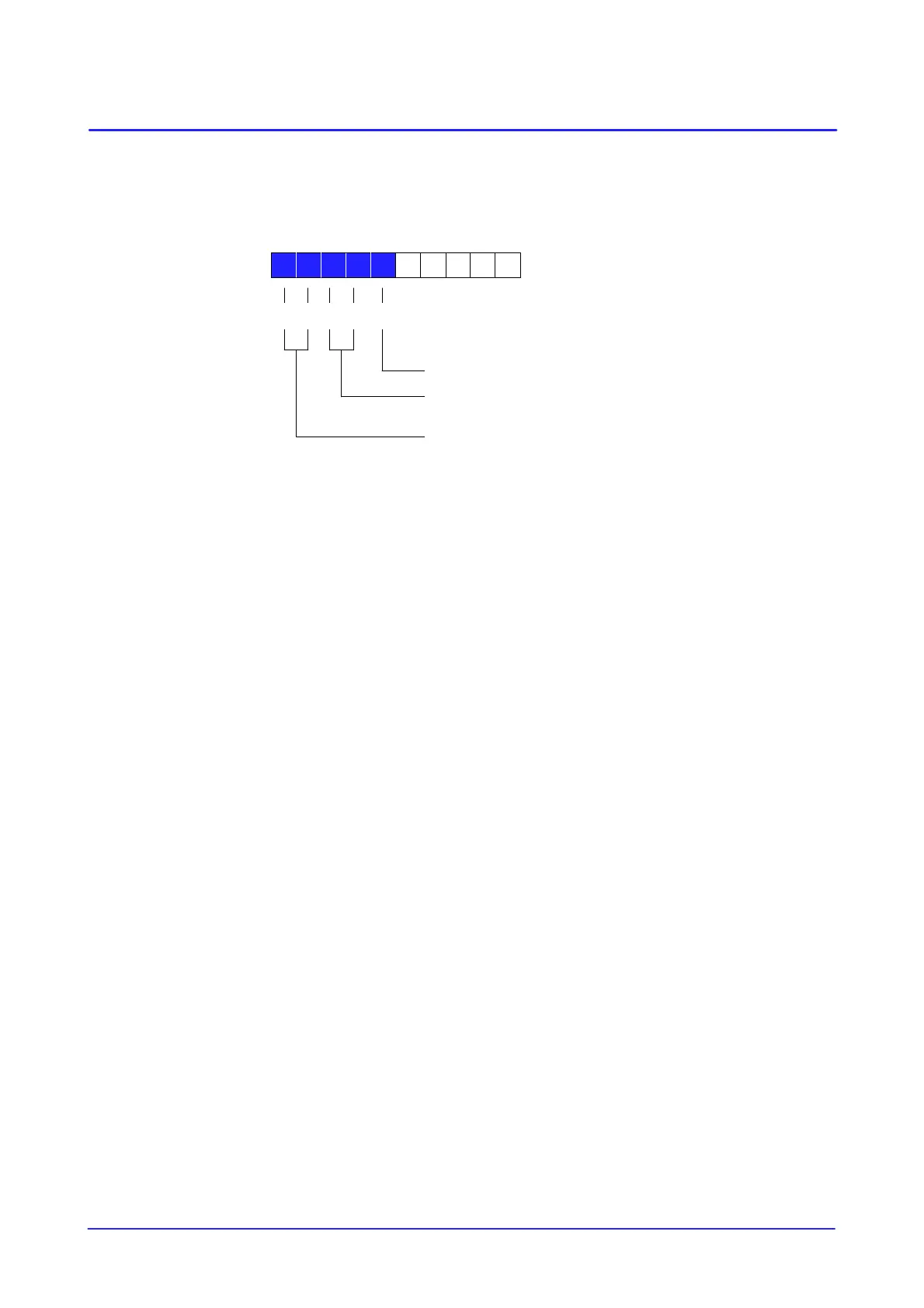

Model Nomenclature / Digit Numbers
4
10987
1 2
SE06W
Cooling Capacity “kW”
(Nominal Cooling C apacity)
Wall Mounted Unit
3 5
WALL MOUNTED INDOOR UNIT
Split Evaporator Section
(Indoor Unit)
6
_______
SE 06 --- 14W
BASE UNIT EVA PORATOR SECTION
Split air cooled indoor unit
Digits 1, 2, 3, 4
D RAL7035 “bright grey” cabinet
D Air flow sensor
Digit 5
W =Wall mounted
D i g i t 6 --- F r e e
0 =Freeoptionalways
Digit 7 --- Emergency cooling (EFC)
0 = No emergency cooling
A = Emergency cooling through 48Vdc fan
(*)
2 = Kit for connection to external inverter
(*)
B = Emergency cooling through 24Vdc fan
(*)
(*) Option possible only if digit 9 = 1, 2, 3, or 4.
Digit 8 --- Main power supply and electric heating
(*)
0 = 230V / 1Ph / 50Hz (no electric heating) --- HPSW 06
400V / 3Ph / 50Hz (no electric heating) --- HPSW 08--- 14
1 = 230V / 1Ph / 50Hz (with electric heating) --- HPSW 06
400V / 3Ph / 50Hz (with electric heating) --- HPSW 08--- 14
(*) Power supply must be the same as per digit 5 of HPSC unit.
Digit 9 --- Fresh air freecooling (FC)
0 = No freecooling
1 = FC circular holes --- modulating damper
2 = FC rectangular holes --- modulating damper
3 = FC circular holes --- spring return damper
4 = FC rectangular holes --- spring return damper
Digit 10 ---Microprocessor control
A = Control + remote display
Remote wallmount display
B = Control + remote display + connection cables for stand--- by
Remote wallmount display inclusive of connectors cable
C = Control + graphic display and language Set L1
(*)
D = Control + graphic display and language Set L2
(*)
(*) Language set L1: GB, F, I, D, E, P,NL,S.
LanguagesetL2:GB,PL,CZ,H,RUS,TK.
D i g i t 1 1 --- A i r f i l t e r
0 =G3
1 =G4
2 = G3 + clogged filter pressure switch
3 = G4 + clogged filter pressure switch
D i g i t 1 2 --- P a c k i n g
0 = Pallet + heavy cardboard
C = Cardboard and wooden crate
S =Seaworthy
D i g i t 1 3 --- R e f r i g e r a n t
1 = R407C
Digit 14 ---Evaporator coil
0 = Standard aluminium evaporator fins
1 = Epoxy coated evaporator fins
D i g i t 1 5 --- F r e e
0 =Freeoptionalways
D i g i t 1 6 --- F r e e
0 =Freeoptionalways
Digit 17 ---Special requirements
0 =None
X =Special
