Liebert HPSE - Page 30

Dimensional Drawings
Liebert HPS---PD--- 272965---20.11.2009
8--6

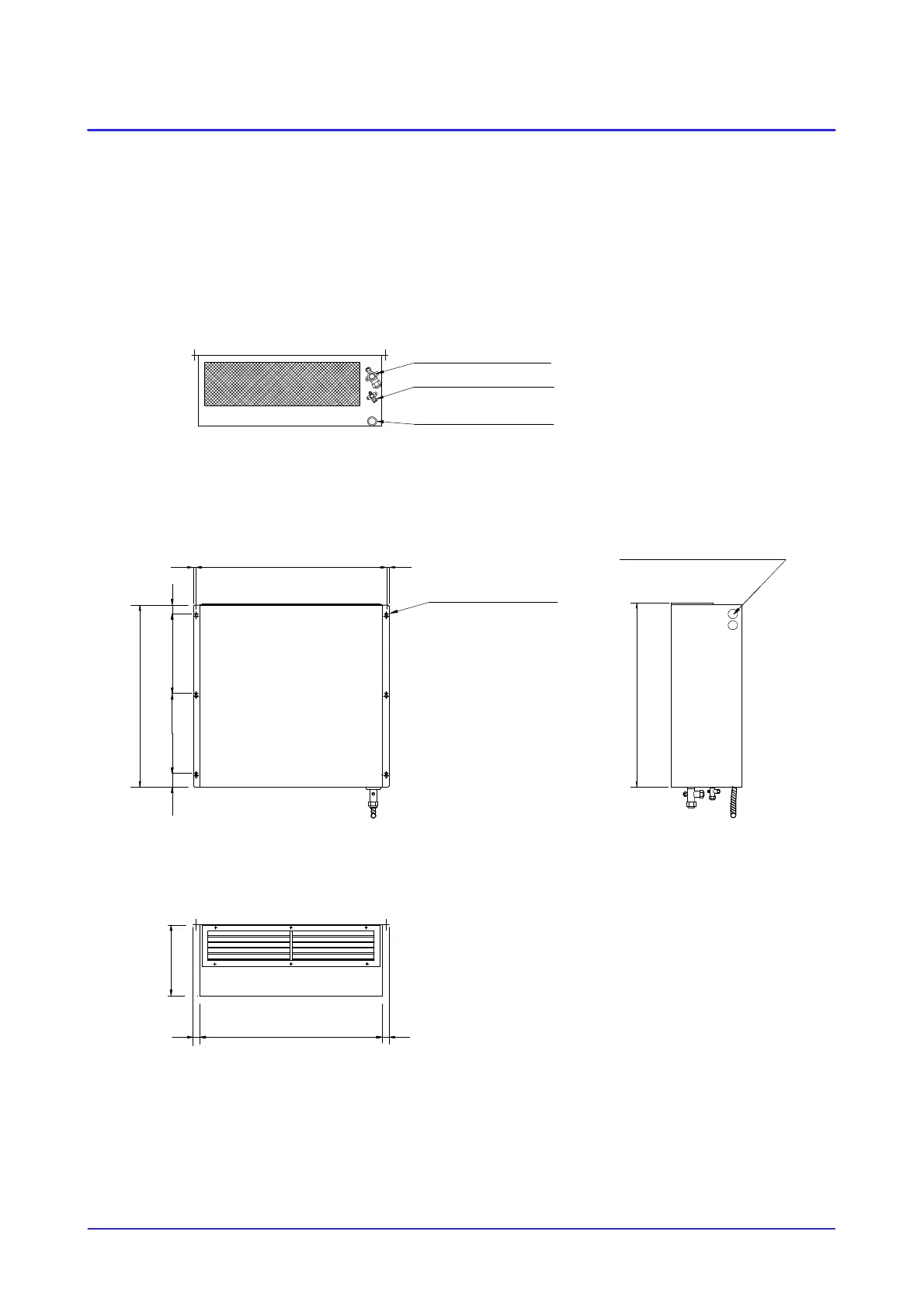

Fig. 9 --- Evaporating unit SE 06W (version without freecooling)
800
80029 29
83412 12
N.6 HOLES ø8
800
35060 350 40
310
BOTTOM VIEW
REAR VIEW SIDE VIEW
TOP VIEW
Condensate drain
Refrigerant outlet
Refrigerant inlet
Electrical connections
