Installation
9--3
Liebert HPS---PD--- 272965---20.11.2009

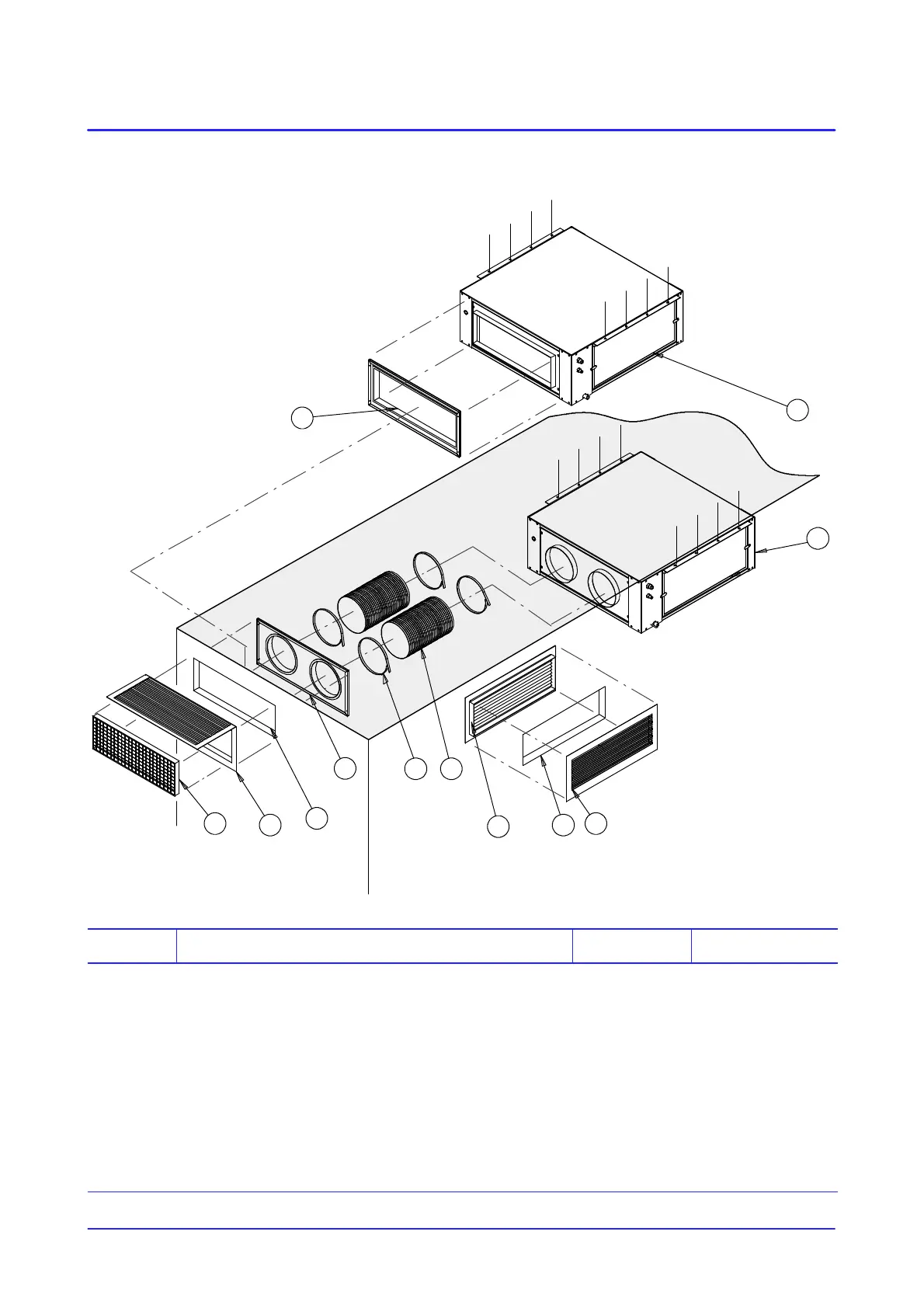

F i g . 1 6 --- HPSE 06-- 08-- 10--12--14 evaporating unit ceiling installation (version with freecooling)
23
1
4
5
5
8
6
7
11
9
10
ITEM DESCRIPTION
COD.
HPSE 06
COD.
H P S E 0 8 --- 1 0 --- 1 2 --- 1 4
1 Wall plate for circular duct 13503801 13536101
2 2 flexible ducts with fixing clamps, L = 0.5 m 270190 (ø 202mm) 270191 (ø 254mm)
3 F i x i n g c l a m p s --- ---
4 Wall plate for rectangular duct 13501801 13536001
5 C i r c u l a r / r e c t a n g u l a r v e r s i o n --- ---
6 Wall hole 400 x 200mm 600 x 400mm
7 Overpressure damper 134948 134992
8 Grille for overpressure damper 270206 117832
9 Aluminium grille with metallic prefilter 270202 270219
10 Metallic prefilter (included in item 9) --- ---
