Installation
9--5
Liebert HPS---PD--- 272965---20.11.2009

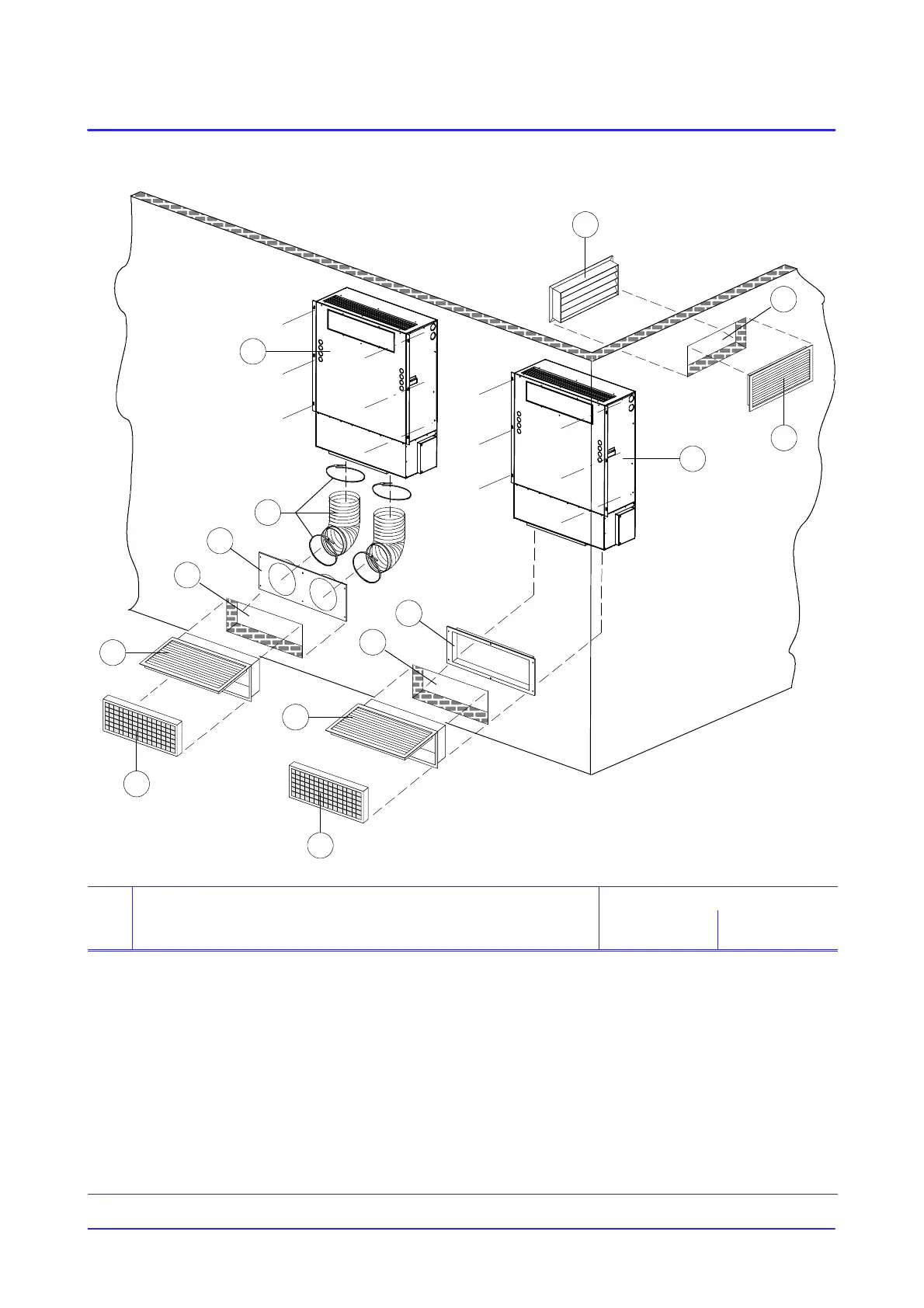

F i g . 1 9 --- SE 06-- 08-- 10-- 13-- 14W evaporating unit wall installation (version with freecooling)
1
2
9
8
10
7
6
4
3
5
11
10
8
9
ITEM DESCRIPTION
CODE
SE
06W
SE
0 8 --- 1 0 --- 1 3 --- 1 4 W
1 SE_W with FC option (optional rectangular hole) --- ---
2 S E _ W w i t h F C o p t i o n ( s t a n d a r d c i r c u l a r h o l e ) --- ---
3 Overpressure damper 134948 134992
4 Grille for overpressure damper 270206 117832
5Holeinthewall 400 x 200 mm 600 x 400 mm
6 2 FC flexible ducts L=0.5 m, with fixing clamps 270190 (∅ 202) 270191 (∅ 254)
7 Wall plate for FC circular duct 13503801 13536101
8 Aluminium grille with metallic prefilter 270202 270219
9 Metallic prefilter (included in (8) --- ---
10 Hole in the wall 550 x 210 mm 590 x 230 mm
11
Wall plate for FC rectangular duct 13501801 13536001
To Next Page
